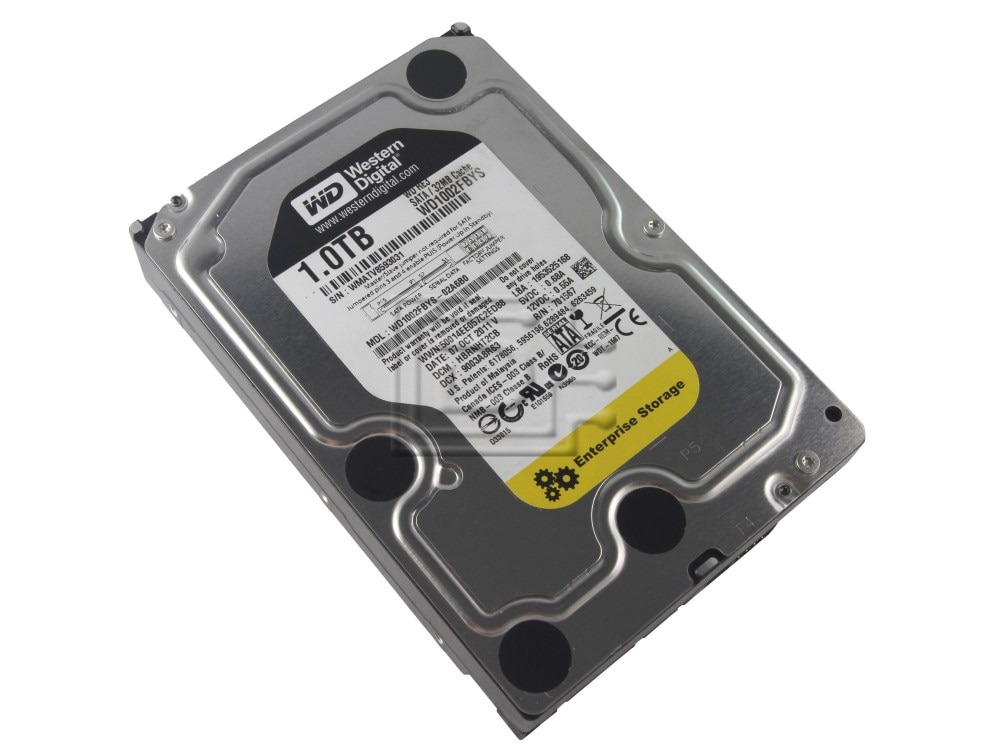

Western Digital Caviar RE3 WD1002FBYS Enterprise SATA Hard Disk Drive

(0) No Reviews Yet

Western Digital Part #/MPN: WD1002FBYS

DiscTech Item #: WDC-WD1002FBYS-FR-6M


$69.00
$69.00

Enterprise Grade

Capacity: 1TB

Speed: 7,200RPM

Interface Types: SATA

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Electrical Interface: SATA 300 - 3.0Gbps

On-Board Cache: 32MB

Western Digital Caviar RE3 WD1002FBYS 1000GB / 1TB 7.2K 3.5" Enterprise SATA Hard Drive - Factory Refurbished

Compatibility Summary

WD RE3 drives combine up to 32 MB cache with SATA 3 Gb/s transfer rate for lightning-fast performance in demanding server and storage applications. Technologically advanced acoustics minimize noise. Cool drive operation and enhanced reliability features help protect the drive and the data stored on it.

Massive capacity - WD RE3 Enterprise SATA drives are available in capacities up to 1 TB.

Dual processor - Twice the processing power results in a 20% performance improvement over the previous generation.

StableTrac™ - The motor shaft is secured at both ends to reduce system-induced vibration and stabilize platters for accurate tracking during read and write operations.

RAFF™ - Our fourth generation RAFF technology includes sophisticated electronics to monitor the drive and correct both linear and rotational vibration in real time for up to a 60% performance improvement in high vibration environments over the previous generation of drives.

IntelliSeek™ - Calculates optimum seek speeds to lower power consumption, noise, and vibration.

Multi-axis shock sensor - Automatically detects the subtlest shock events and compensates to protect the data.

RAID-specific, time-limited error recovery (TLER) - Prevents drive fallout caused by the extended hard drive error-recovery processes common to desktop drives.

Third generation dynamic fly height - Each read-write head’s fly height is adjusted in real time for optimum reliability.

Thermal extended burn-in test - Each drive is put through extended burn-in testing with thermal cycling to ensure reliable operation.

NoTouch™ ramp load technology - The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.

Perpendicular Magnetic Recording (PMR) - WD RE3 drives utilize PMR technology to achieve even greater areal density, reliability, and design margin.



Ideal For



Ideal for servers, storage arrays, video surveillance, and other demanding write-intensive applications.

Capacity: 1000GB / 1TB / 1 TB


Compatibility:

This drive is compatible with any computer/server that accepts 3.5" SATA hard drives.

Specifications
Model number WD1002FBYS
Model Name RE3
Formatted Capacity 1000 Gbytes / 1TB
Rotational Speed 7,200 rpm
Default Buffer (cache) Size 32 Mbytes
Performance
External (I/O) Transfer Rate (max) 300 MBytes/sec
Average Latency 4.2 msec
Physical
Form Factor(width) 3.5-inch
Form Factor(height) 1-inch
Height 25.4 mm
Width 101.6 mm
Length 146.05 mm
Weight 0.69 kg
Electrical
Power 12VDC (Rd/Wr; Idle; Standby; Sleep) 490 mA; 470 mA; 5mA; 5mA
Power 5VDC (Rd/Wr; Idle; Standby; Sleep) 500 mA; 420 mA; 160mA; 160mA
Environmental
Max Operating Shock (2-msec) 65 Gs
Max Nonoperating Shock (2-msec) 250 Gs
Operating Vibration (max) .75 Gs
Nonoperating Vibration (max) 4.0 Gs
Operating Temperature (max) 60 deg C
Operating Temperature (min) 0 deg C
Nonoperating Temperature (max) 70 deg C
Nonoperating Temperature (min) -40 deg C
Acoustical
Acoustics, Idle (sound power, typ) 28 dBA
MTBF (Hours) 1,200,000 hours
Nonrecoverable Read Errors 1 per 10^16 bits read
Supports S.M.A.R.T.Yes

Click here to view the manufacturer's item description/brochure

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Factory Refurbished

Condition Levels Explained

The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
