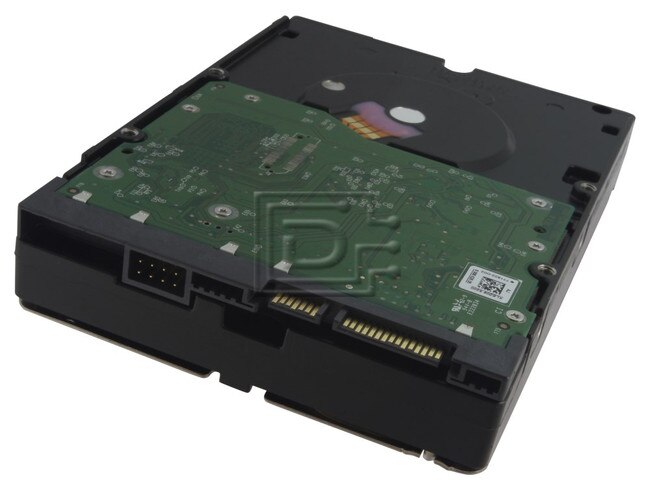

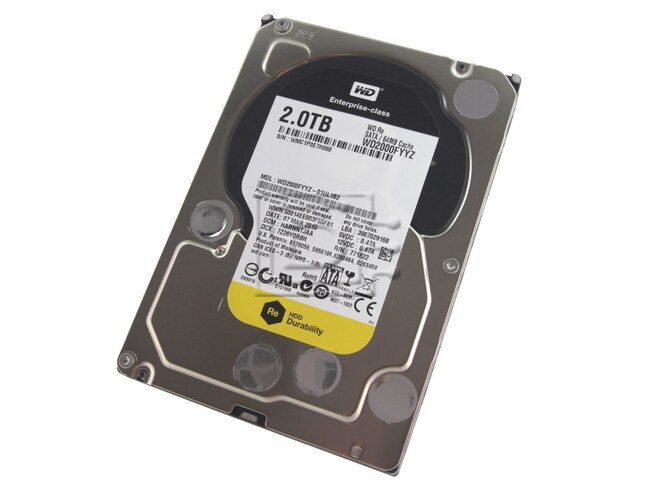

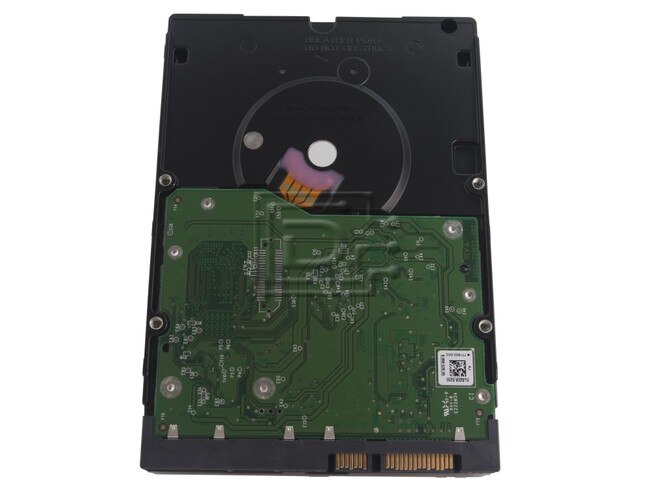

Western Digital RE WD2000FYYZ 2TB SATA Hard Disk Drive

(0) No Reviews Yet

Western Digital Part #/MPN: WD2000FYYZ

DiscTech Item #: WDC-WD2000FYYZ-BN-5Y


Enterprise Grade

Capacity: 2TB

Speed: 7,200RPM

Interface Types: SATA

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 171

Electrical Interface: SATA 600 - 6.0Gbps

On-Board Cache: 64MB

U Height: 1U

Product Specifications
InterfaceSATA 6 Gb/s
Performance Specifications
Rotational Speed7,200 RPM (nominal)
Buffer Size64 MB
Load/unload Cycles600,000 minimum
Transfer Rates
Buffer To Host (Serial ATA)6 Gb/s (Max)
Physical Specifications
Capacity2 TB
User Sectors Per Drive3,907,029,168
Physical Dimensions
Height1.028 Inches
Depth5.787 Inches
Width4.00 Inches
Weight1.66 Pounds
Height26.1 mm
Depth147 mm
Width101.6 mm
Weight0.75 kg
Environmental Specifications
Operating Shock (Read)30G, 2 ms
Non-operating Shock300G, 2 ms
Power Management
Read (Peak Watts)7.60 Watts
Write (Peak Watts)7.40 Watts
Idle Mode31 dBA (average)
Seek Mode 034 dBA (average)
Temperature (English)
Operating41° F to 131° F
Non-operating-40° F to 158° F
Temperature (Metric)
Operating5° C to 55° C
Non-operating-40° C to 70° C
Electrical Specifications
Current Requirements
Power Dissipation
Read/Write8.90 Watts
Idle6.20 Watts

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: WD2000FYYZ-01UL1B1

Weight: 1.8 lb

Warranty: 5 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new & sealed in retail box packaging.

5 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
