Western Digital Part #/MPN: WD1003FBYX
DiscTech Item #: WDC-WD1003FBYX-NP-OE-DEL
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: SATA
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 128
Electrical Interface: SATA 300 - 3.0Gbps
On-Board Cache: 64MB

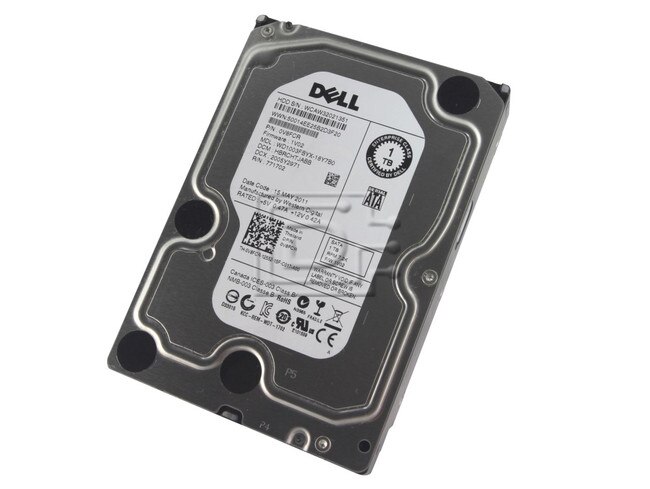

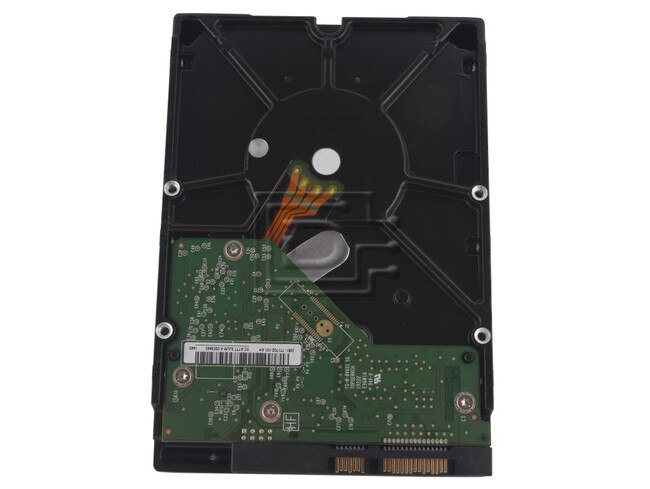

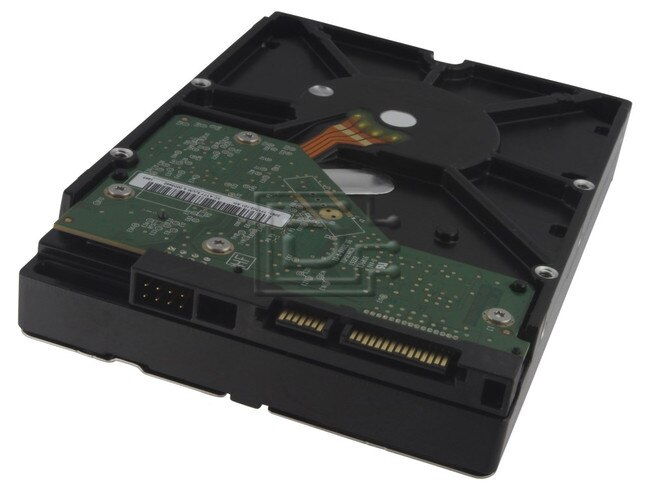

Western Digital Caviar RE4 WD1003FBYX 1000GB / 1TB 7.2K Enterprise SATA Hard Drive - New Pull OEM
WD RE4 Enterprise SATA drives are available with up to 2 TB of cavernous capacity.
With double the processing power, WD RE4 boasts the highest performance of any drive in the WD RE family. RAFF™ Enhanced RAFF technology includes sophisticated electronics to monitor the drive and correct both linear and rotational vibration in real time. The result is a significant performance improvement in high vibration environments over the previous generation of drives.
Dual actuator technology:
A head positioning system with two actuators that improves positional accuracy over the data track(s). The primary actuator provides coarse displacement using conventional electromagnetic actuator principles. The secondary actuator uses piezoelectric motion to fine tune the head positioning to a higher degree of accuracy. (2 TB only)
The motor shaft is secured at both ends to reduce system-induced vibration and stabilize platters for accurate tracking during read and write operations.
Calculates optimum seek speeds to lower power consumption, noise, and vibration. Multi-axis shock sensor Automatically detects the subtlest shock events and compensates to protect the data.
RAID-specific, time-limited error recovery (TLER)
Prevents drive fallout caused by the extended hard drive error-recovery processes common to desktop drives. NoTouch™ ramp load technology The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.
Thermal extended burn-in test:
Each drive is put through extended burnin testing with thermal cycling to ensure reliable operation.
Third generation dynamic fly height: Each read-write head’s fly height is adjusted in real time for optimum reliability.
With 1.2 million hours MTBF (tested at 100% duty cycle), these drives have the highest available reliability rating on a high-capacity drive.
DP/N: V8FCR / 0V8FCR / D3GFY / 0D3GFY
This enterprise hard drive will work with any server or storage array that supports SATA hard drives.
|Formatted Capacity||1000 Gbytes / 1TB|
|Rotational Speed||7,200 rpm|
|Default Buffer (cache) Size||64 Mbytes|
|External (I/O) Transfer Rate (max)||300 MBytes/sec|
|Average Latency||4.2 msec|
|Height||1.028 in. / 25.4mm|
|Width||4.0 in. / 101.6mm|
|Length||5.787in. / 147mm|
|Electrical Current Requirements|
|Read / Write||7.9 Watts|
|Max Operating Shock (2-msec)||65 Gs|
|Max Nonoperating Shock (2-msec)||300 Gs|
|Operating Vibration (max)||.75 Gs|
|Operating Temperature (max)||60 deg C|
|Operating Temperature (min)||0 deg C|
|Nonoperating Temperature (max)||70 deg C|
|Nonoperating Temperature (min)||-40 deg C|
|Acoustics, Idle (sound power, typ)||28 dBA|
|Permormance seek mode||33|
|Nonrecoverable Read Errors||1 per 10^16 bits read|
Click here to view the manufacturer's item description/brochure
Alternate MPNs: V8FCR 0V8FCR 0J317F J317F WD1003FBYX-01Y7B0 D3GFY 0D3GFY
Weight: 1.8 lb
Warranty: 1 Year DiscTech
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
