Western Digital Part #/MPN: WD2003FYYS
DiscTech Item #: WDC-WD2003FYYS-NP-1Y
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: SATA
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 138
Electrical Interface: SATA 300 - 3.0Gbps
On-Board Cache: 64MB

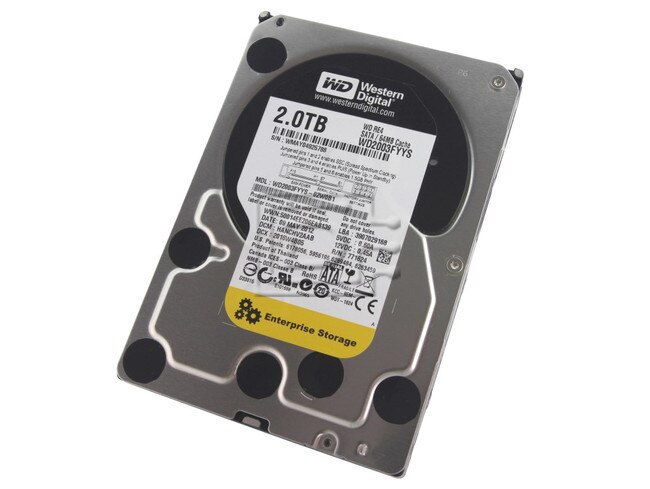

Western Digital RE4 WD2003FYYS 2000GB / 2TB 7.2K 64MB Enterprise SATA Hard Drive - New Pull
WD RE4 enterprise SATA hard drives combine 64 MB cache with dual processors and dual stage actuation for lightning-fast performance in demanding server and storage applications. Technologically advanced acoustics minimize noise. Cool drive operation and enhanced reliability features help protect the drive and the data stored on it.
Massive capacity - WD RE4 Enterprise SATA drives are available with up to 2 TB's of cavernous capacity.
Dual actuator technology - A head positioning system with two actuators that improves positional accuracy over the data track(s). The primary actuator provides coarse displacement using conventional electromagnetic actuator principles. The secondary actuator uses piezoelectric motion to fine tune the head positioning to a higher degree of accuracy. (2 TB model only)
Dual processor - With double the processing power, WD RE4 boasts the highest performance of any drive in the WD RE family.
StableTrac - The motor shaft is secured at both ends to reduce system-induced vibration and stabilize platters for accurate tracking during read and write operations.
RAFF - Enhanced RAFF technology includes sophisticated electronics to monitor the drive and correct both linear and rotational vibration in real time. The result is a significant performance improvement in high vibration environments over the previous generation of drives.
IntelliSeek - Calculates optimum seek speeds to lower unnecessary power consumption, noise, and vibration.
Multi-axis shock sensor - Automatically detects the subtlest shock events and compensates to protect the data.
RAID-specific, time-limited error recovery (TLER) - Prevents drive fallout caused by the extended hard drive error-recovery processes common to desktop drives.
Third generation dynamic fly height - Each read-write head's fly height is adjusted in real time for optimum reliability.
Thermal extended burn-in test - Each drive is put through extended burn-in testing with thermal cycling to ensure reliable operation.
NoTouch ramp load technology - The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.
Perpendicular Magnetic Recording (PMR) - WD RE4 drives utilize PMR technology to achieve even greater areal density, reliability, and design margin.
Active Power Save - Delivers best-in-class power consumption through advanced WD firmware that conserves power in active seek modes without degrading performance.
This drive is compatible with all of our 3.5" SATA trays.
|Formatted Capacity||2,000 Gbytes|
|Default Buffer (cache) Size||64 Mbytes|
|External (I/O) Transfer Rate (max)||3 Gb/s|
|Power (Typical)||10.7 watts|
|Power (Idle)||8.1 watts|
|Power (Standbye)||.185 watts|
|Power (Sleep)||.185 watts|
|Max Operating Shock (2-msec)||30 Gs|
|Max Nonoperating Shock (2-msec)||300 Gs|
Click here to view the manufacturer's item description/brochure
Weight: 1.8 lb
Warranty: 1 Year Manufacturer
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
1 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
