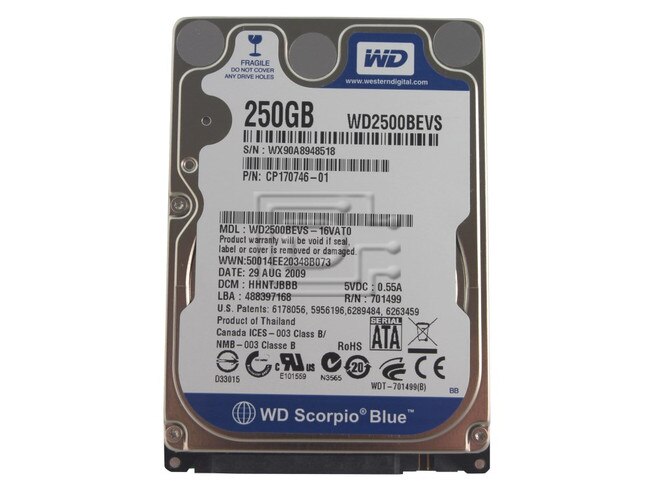

Western Digital Scorpio Blue WD2500BEVS 250GB 5.4K 2.5 inch SATA Hard Drive

(0) No Reviews Yet

Western Digital Part #/MPN: WD2500BEVS

DiscTech Item #: WDC-WD2500BEVS-NP-1Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Capacity: 250GB

Speed: 5,400RPM

Interface Types: SATA

Form Factor: 2.5inx9mm Fits Most laptops

Sector Size: 512 / 512e

Average Seek Time: 12

Electrical Interface: SATA 300 - 3.0Gbps

On-Board Cache: 8MB

Performance Specifications
Rotational Speed5,400 RPM (nominal)
Buffer Size8 MB
Average Latency5.50 ms (nominal)
Seek Times
Read Seek Time12.0 ms
Track-To-Track Seek Time2.0 ms (average)
Transfer Rates
Buffer To Host (Serial ATA)3.0 Gb/s (Max)
Transfer Rate (Buffer To Disk)600 Mbits/s (Max)
Physical Specifications
Formatted Capacity250,059MB
Capacity250 GB
InterfaceSATA 3.0 Gb/s
Physical Dimensions
Height0.374 Inches ±0.008 inch
Length3.94 Inches ±0.010 inch
Width2.75 ±0.010 inch
Weight0.22 Pounds
Height9.5 mm ±0.20 mm
Length100.2 ±0.25 mm
Width69.85 ±0.25 mm
Weight0.117 kg
Environmental Specifications
Idle Mode22 dBA (average)
Seek Mode 025 dBA (average)
Temperature (English)
Operating32° F to 140° F
Non-operating-40° F to 149° F
Temperature (Metric)
Operating0° C to 60° C
Non-operating-40° C to 65° C
Operating8-90% RH non-condensing
Non-operating5-95% RH non-condensing
Altitude (English)
Operating-1,000 feet to 10,000 feet
Non-operating-1,000 feet to 40,000 feet
Altitude (Metric)
Operating-305M to 3,050M
Non-operating-305M to 12,200M
Linear10-500 Hz, 1.0G (0 to peak)
Random10-500 Hz (0.309 g² / Hz)
Electrical Specifications
Current Requirements
Read/Write500 mA
Idle400 mA
Standby50 mA
Sleep20 mA
Power Dissipation
Read/Write2.50 Watts
Idle0.85 Watts
Standby0.25 Watts
Sleep0.10 Watts

Click here to view the manufacturer's item description/brochure

Weight: 1 lb

Warranty: 1 Year Manufacturer

New Pull

Condition Levels Explained

The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have a few hours of usage due to system build time etc. Ostensibly however, New Pulls are electronically new items, which may show signs of being physically mounted and unmounted. All handling is performed by trained technicians, taking full ESD precautions.

1 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
