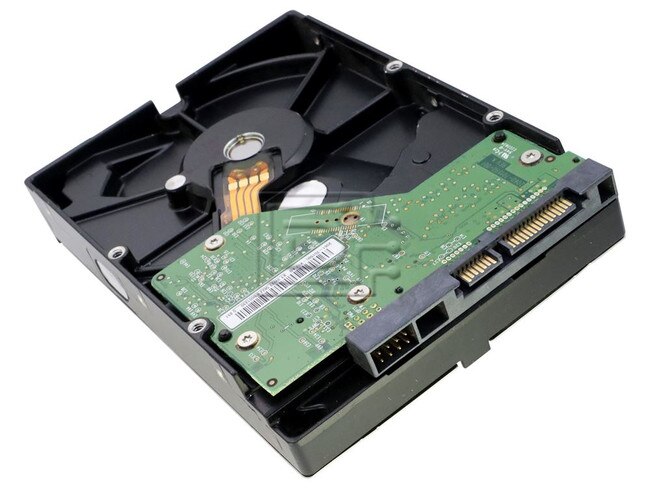

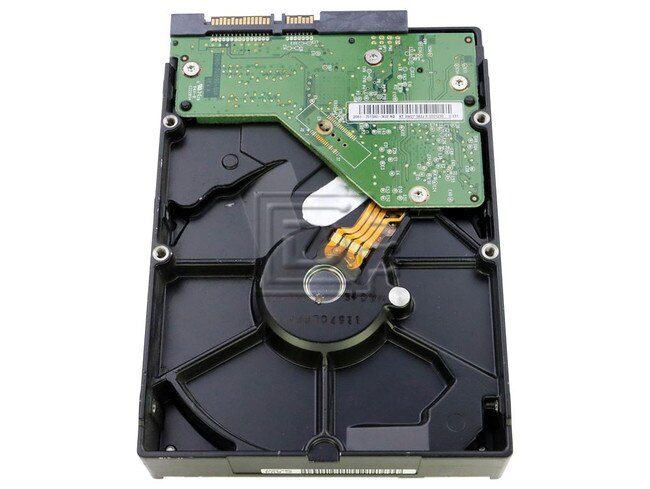

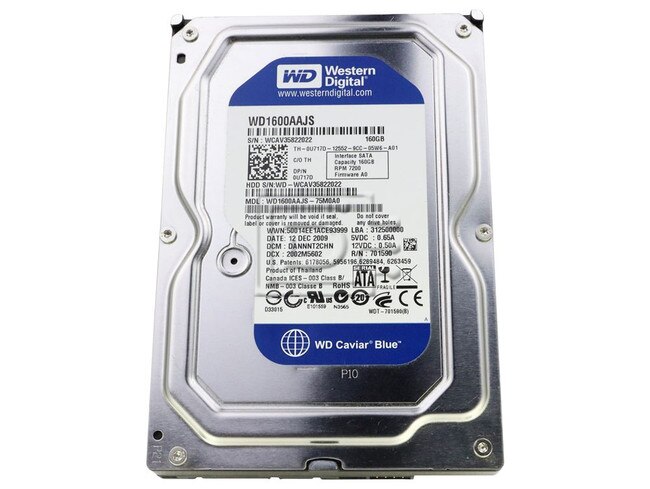

Western Digital WD1600AAJS SATA Hard Drive

(0) No Reviews Yet

Western Digital Part #/MPN: WD1600AAJS

DiscTech Item #: WDC-WD1600AAJS-RF-OE

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Capacity: 160GB

Speed: 7,200RPM

Interface Types: SATA

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Electrical Interface: SATA 300 - 3.0Gbps

On-Board Cache: 8MB

Performance Specifications
Rotational Speed7200 RPM
Buffer Size8 MB
Average Latency4.20 ms (nominal)
Contact Start/Stop Cycles50,000 minimum
Transfer Rates
Buffer To Host (Serial ATA)3 Gb/s (maximum)
Buffer To Disk972 Mbits/s (maximum)
Physical Specifications
Formatted Capacity160,041 MB
Capacity160 GB
InterfaceSATA 300 MB/s
User Sectors Per Drive312,581,808
Physical Dimensions
Height1.028 Inches (Max)
Length5.787 Inches (Max)
Width4.00 Inches (+/- 0.010 inch)
Weight1.32 Pounds
Height26.1 mm (Max)
Length147 mm (Max)
Width101.6 mm
Weight0.60 kg
Environmental Specifications
Operating Shock (Read)65G, 2 ms
Non-operating Shock300G, 2 ms
Idle Mode26 dBA (average)
Seek Mode 031 dBA (average)
Seek Mode 327 dBA (average)
Temperature (English)
Operating41° F to 131° F
Non-operating-40° F to 149° F
Temperature (Metric)
Operating5° C to 55° C
Non-operating-40° C to 65° C
Operating5-95% RH non-condensing
Non-operating5-95% RH non-condensing
Altitude (English)
Operating-1,000 feet to 10,000 feet
Non-operating-1,000 feet to 40,000 feet
Altitude (Metric)
Operating-305M to 3,050M
Non-operating-305M to 12,200M
Operating Vibration
Linear20-300 Hz, .75G (0 to peak)
Random10-300 Hz, 0.004 g² / Hz
Non-operating Vibration
Low Frequency5-20 Hz, 0.195 inches (double amplitude)
High Frequency20-500 Hz, 4.0G (0 to peak)
Electrical Specifications
12 VDC Current Requirements
Read/Write280 mA
Idle270 mA
Standby6 mA
Sleep6 mA
5 VDC Current Requirements
Read/Write650 mA
Idle600 mA
Standby180 mA
Sleep180 mA
Power Dissipation
Read/Write6.61 Watts
Idle6.24 Watts
Standby.97 Watts
Sleep.97 Watts

Click here to view the manufacturer's item description/brochure

Weight: 1.8 lb

Warranty: 1 Year DiscTech
