Western Digital Part #/MPN: WD1600BEVE
DiscTech Item #: WDC-WD1600BEVE-BN-3Y
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: IDE ATA 2.5in IDC44M for laptop
Form Factor: 2.5inx9mm Fits Most laptops
Sector Size: 512 / 512e
Average Seek Time: 12
Electrical Interface: EIDE Ultra ATA100 100MBps
On-Board Cache: 8MB

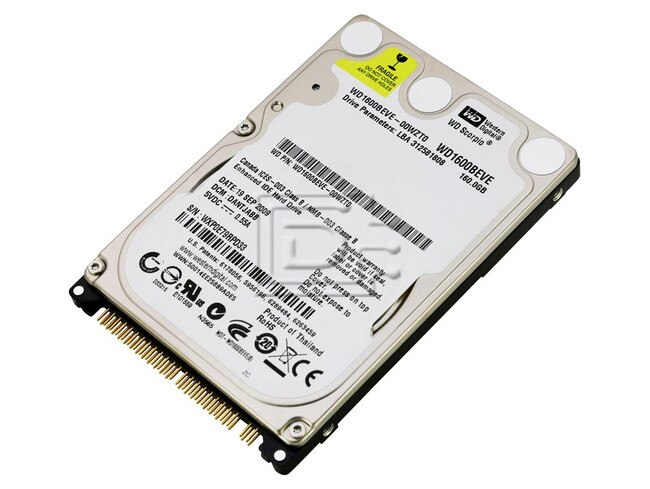

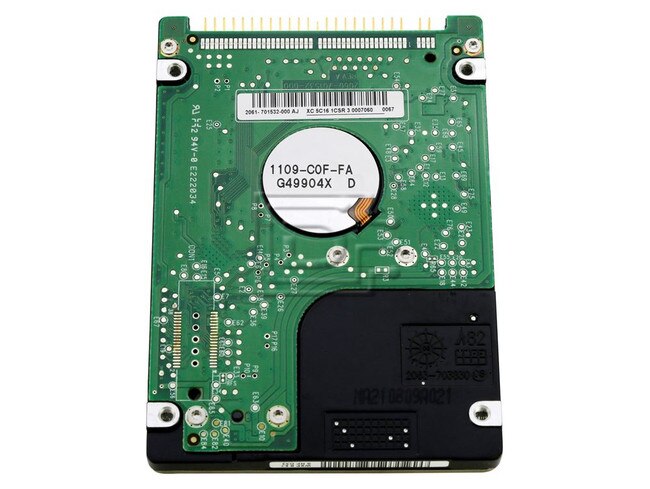

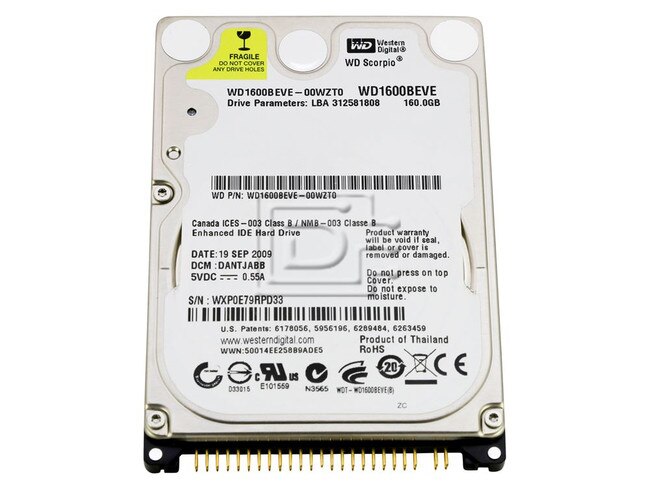

Western Digital Scorpio Blue WD1600BEVE 160GB 5.4K 2.5 inch PATA / IDE Hard Drive - Brand New
Quiet - In a notebook drive, silence is golden. WD’s exclusive WhisperDrive™ combines state-of-the-art seeking algorithms to yield one of the quietest 2.5-inch hard drives on the market. These algorithms also optimize the way a drive seeks for data, which significantly improves power consumption. So now silence (and longer battery life) is golden.
Reliable and Rugged - WD's ShockGuard™ technology protects the drive mechanics and platter surfaces from shocks. WD's SecurePark ™ parks the recording heads off the disk surface during spin up, spin down and when the drive is off. This ensures the recording head never touches the disk surface resulting in improved long term reliability due to less head wear, and improved non-operational shock tolerance.
Fast and Efficient - With 5400 RPM spin speed and 12 ms access time even the most demanding customer will appreciate the performance achieved by WD Scorpio Blue drives.
|Rotational Speed||5,400 RPM (nominal)|
|Buffer Size||8 MB|
|Average Latency||5.50 ms (nominal)|
|Read Seek Time||12.0 ms|
|Track-To-Track Seek Time||2.0 ms (average)|
|Buffer To Host (IDE)||100 MB/s|
|Transfer Rate (Buffer To Disk)||6421 Mbits/s (Max)|
|Formatted Capacity||160,041 MB|
|Interface||PATA / IDE 100 MB/s|
|Height||0.374 Inches ±0.008 inch|
|Length||3.94 Inches ±0.010 inch|
|Width||2.75 ±0.010 inch|
|Height||9.5 mm ±0.20 mm|
|Length||100.2 ±0.25 mm|
|Width||69.85 ±0.25 mm|
|Idle Mode||20 dBA (average)|
|Seek Mode 0||21 dBA (average)|
|Operating||32° F to 140° F|
|Non-operating||-40° F to 149° F|
|Operating||0° C to 60° C|
|Non-operating||-40° C to 65° C|
|Operating||8-95% RH non-condensing|
|Non-operating||5-95% RH non-condensing|
|Operating||-1,000 feet to 10,000 feet|
|Non-operating||-1,000 feet to 40,000 feet|
|Operating||-305M to 3,050M|
|Non-operating||-305M to 12,200M|
|Linear||10-500 Hz, 1.0G (0 to peak)|
|Random||10-500 Hz (0.309 g² / Hz)|
Click here to view the manufacturer's item description/brochure
Weight: 1 lb
Warranty: 3 Year Manufacturer
The product is brand new & sealed in retail box packaging.
3 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
