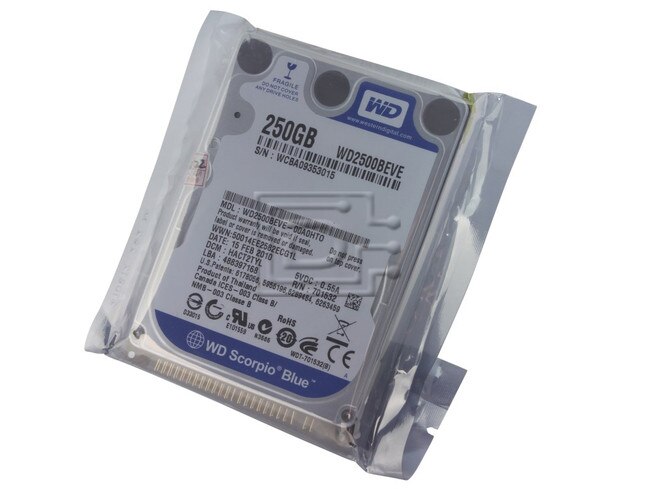

Western Digital WD2500BEVE SFF 2.5" PATA / IDE Hard Disk Drive

(0) No Reviews Yet

Western Digital Part #/MPN: WD2500BEVE

DiscTech Item #: WDC-WD2500BEVE-RF-OE


$139.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$139.00

Capacity: 250GB

Speed: 5,400RPM

Interface Types: IDE ATA 2.5in IDC44M for laptop

Form Factor: 2.5inx9mm Fits Most laptops

Sector Size: 512 / 512e

Sustained Throughput: 97

Average Seek Time: 12

Electrical Interface: EIDE Ultra ATA100 100MBps

On-Board Cache: 8MB

Performance Specifications
Rotational Speed5,400 RPM (nominal)
Buffer Size8 MB
Average Latency5.50 ms (nominal)
Seek Times
Read Seek Time12.0 ms
Track-To-Track Seek Time2.0 ms (average)
Transfer Rates
Buffer To Host (IDE)100 MB/s
Transfer Rate (Buffer To Disk)600Mb/s (Max)
Physical Specifications
Formatted Capacity250,059 MB
Capacity250 GB
InterfacePATA / IDE 100 MB/s
Physical Dimensions
English
Height0.374 Inches ±0.008 inch
Length3.94 Inches ±0.010 inch
Width2.75 ±0.010 inch
Weight0.26 Pounds
Metric
Height9.5 mm ±0.20 mm
Length100.2 ±0.25 mm
Width69.85 ±0.25 mm
Weight0.117 kg
Environmental Specifications
Acoustics
Idle Mode22 dBA (average)
Seek Mode 025 dBA (average)
Temperature (English)
Operating32° F to 140° F
Non-operating-40° F to 149° F
Temperature (Metric)
Operating0° C to 60° C
Non-operating-40° C to 65° C
Humidity
Operating8-95% RH non-condensing
Non-operating5-95% RH non-condensing
Altitude (English)
Operating-1,000 feet to 10,000 feet
Non-operating-1,000 feet to 40,000 feet
Altitude (Metric)
Operating-305M to 3,050M
Non-operating-305M to 12,200M
Vibration
Operating
Linear10-500 Hz, 1.0G (0 to peak)
Random10-500 Hz (0.309 g² / Hz)
Electrical Specifications
Current Requirements
5 VDC
Read/Write500 mA
Idle400 mA
Standby45 mA
Sleep38 mA
Power Dissipation
Read/Write2.50 Watts
Idle0.85 Watts
Standby0.23 Watts
Sleep0.19 Watts

Click here to view the manufacturer's item description/brochure

Weight: 1

Warranty: 1 Year DiscTech

Refurbished

Condition Levels Explained

The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items. Watch a video about our refurbishing process

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
