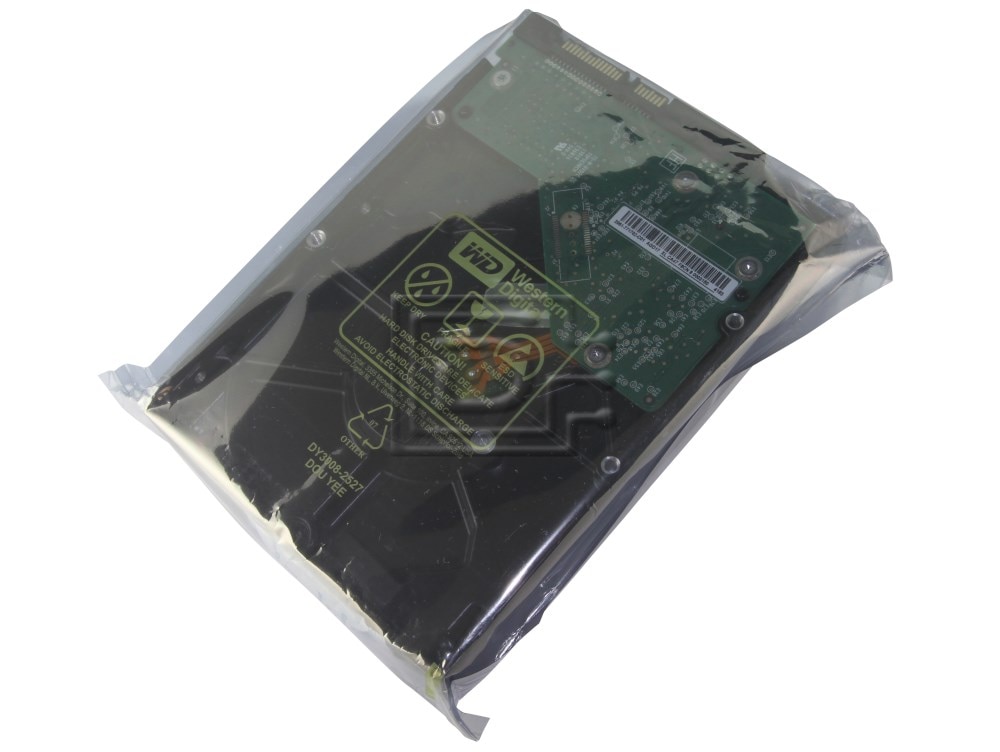

Western Digital WD2503ABYX RE4 SATA Hard Drives

(0) No Reviews Yet

Western Digital Part #/MPN: WD2503ABYX

DiscTech Item #: WDC-WD2503ABYX-RF-OE


Enterprise Grade

Capacity: 250GB

Speed: 7,200RPM

Interface Types: SATA

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 128

Electrical Interface: SATA 300 - 3.0Gbps

On-Board Cache: 64MB

Model numberWD2503ABYX
InterfaceSATA 3 Gb/s
Formatted capacity251 GB
User sectors per drive490,350,672
Native command queuingYes
SATA latching connectorYes
Form factor3.5-inch
Max Data transfer rate3 Gb/s
Cache (MB)64
Rotational speed (RPM7200
Average drive ready time (sec)14
Bytes per sector (STD)512
Reliability/Data Integrity
Load/unload cycles600,000
Non-recoverable read errors per bits read<1 in 1015
Limited warranty (years)5
Power Management
12VDC (A, max)2.25
Average required wats Read/Write6.4
Average required wats Idle4.5
Average required wats Standby0.8
Average required wats Sleep0.8
Environmental Specifications
Operating Temperature (°C)5 to 55
Non-operating Temperature (°C)-40 to 70/td>
Shock (Gs) Operating (2 ms, read/write)30
Shock (Gs) Operating (2 ms, read)65
Shock (Gs) Non-operating (2 ms)350
Average acoustics (dBA) Idle mode27-
Average acoustics (dBA) Performance seek mode30
Average acoustics (dBA) Quiet seek mode29
Physical Dimensions
Height (in./mm, max)1.028/26.1
Length (in./mm, max)5.787/147
Width (in./mm, ± .01 in.)4/101.6

Click here to view the manufacturer's item description/brochure

Weight: 1.8 lb

Warranty: 1 Year DiscTech


Condition Levels Explained

The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items. Watch a video about our refurbishing process

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
