Western Digital Part #/MPN: WD3200KS
DiscTech Item #: WDC-WD3200KS-RF-OE-DEL
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:1Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Capacity: 320GB
Speed: 7,200RPM
Interface Types: SATA
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Average Seek Time: 8.9 / 10.9
Electrical Interface: SATA 300 - 3.0Gbps
On-Board Cache: 16MB

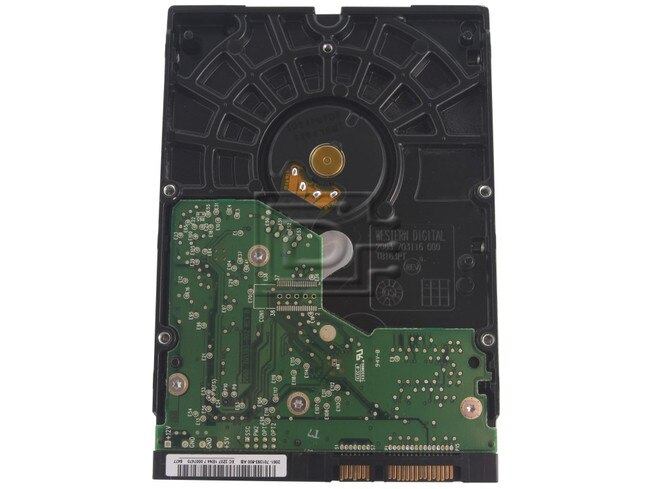

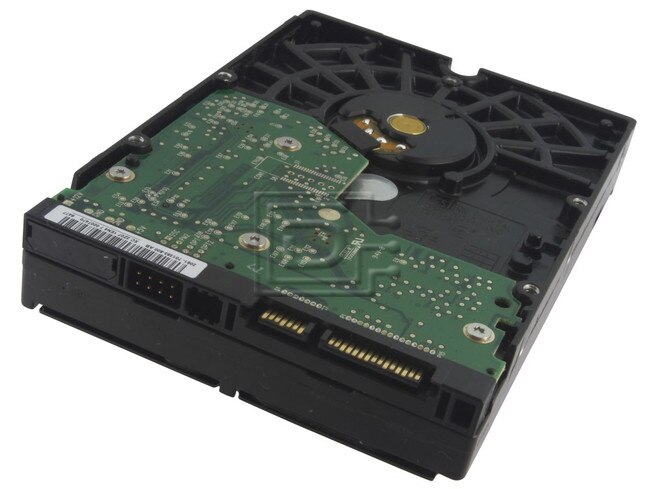

Western Digital WD3200KS / TJ016 320GB 3.5in 3Gbps 7.2K RPM Caviar SE16 SATA HDD - Refurbished OEM
Western Digital WD3200KS / TJ016 320GB 3.5" 3.0 Gbps 7200 RPM Caviar SE16 Serial Advanced Technology Attachment Hard Disk Drive - Refurbished OEM
Alt MPN: TJ016, 0TJ016
Compatibility:
This drive is compatible with any server that accepts 3.5"x1.0" (LFF Hard Drive) SATA Drives.
| Model Number | WD3200KS |
|---|---|
| Alt Model | TJ016 |
| Formatted Capacity | 320 GB |
| Formatted Capacity | 320,072 MB |
| User Sectors Per Drive | 625,142,488 |
| Bytes Per Sector | 512 |
| Dedicated Landing Zone | Yes |
| Actuator Latch/Auto Park | Yes |
| Data Transfer Rate (maximum) -Buffer to Host | 300 MB/s max |
| Average Read Seek | 8.9 ms (average) |
| Track-to-track Seek | 2.0 ms (average) |
| Full Stroke Seek | 21 ms (average) |
| Average Latency | 4.2 ms (nominal) |
| Rotational Speed | 7200 RPM |
| Read Cache | Adaptive |
| Write Cache | Yes |
| Buffer | 16 MB |
| Drive Ready Time | 9.0 sec average |
| Start/Stop Cycles | 50,000 min |
| Error Rate (non-recoverable) | 1 in 10e14 bits read |
| Height (in/mm, max) | 1.028/25.4 |
| Length (in/mm, max) | 5.787/147.0 |
| Width (in/mm, ± .01 in) | 4.00/101.6 |
| Weight (lb/g, ± 10%) | 1.62/600 |
| Read/Write 12 V (± 10%) 5 V (± 5%) Power | 450 mA 800 mA 9.5 W |
| Idle 12 V (± 10%) 5 V (± 5%) Power | 430 mA 730 mA 8.75 W |
| Standby 12 V (± 10%) 5 V (± 5%) Power | 20 mA 270 mA 1.6 W |
| Sleep 12 V (± 10%) 5 V (± 5%) Power | 20 mA 250 mA 1.5 W |
| SHOCK | |
| Operating | 65 G(read) |
| Non-operating | 250G |
| VIBRATION | |
| Operating Random> Linear | 0.004 g2/Hz (10 to 300Hz) 20-300 Hz, 0.75G (0 to peak) |
| Non-operating Linear | 5-20 Hz, 0.195 inches (dbl amp) 20-500 Hz, 4G (0 to peak) |
| OPERATING TEMPERATURE AND HUMIDITY | |
| Temperature | 5°C to 55°C (41°F to 131°F) |
| Humidity | 5-95% RH non-condensing |
| Thermal Gradient | 20°C/hour (maximum) |
| NON-OPERATING TEMPERATURE AND HUMIDITY | |
| Temperature | -40°C to 65°C (-40°F to 149°F) |
| Humidity | 5-95% RH non-condensing |
| Thermal Gradient | 30°C/hour (maximum) |
| ACOUSTICS (AVERAGE) | |
| Idle Mode | 29 dBA |
| Seek Mode 0 | 33 dBA |
| Seek Mode 3 | 29 dBA |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: TJ016 0TJ016
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
