Western Digital Part #/MPN: WD5000AAKX
DiscTech Item #: WDC-WD5000AAKX-NP-OE-DEL
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Capacity: 500GB
Speed: 7,200RPM
Interface Types: SATA
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Electrical Interface: SATA 600 - 6.0Gbps
On-Board Cache: 16MB

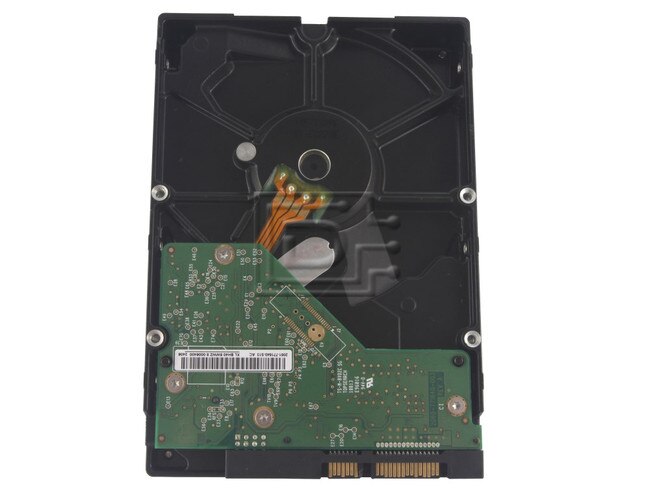

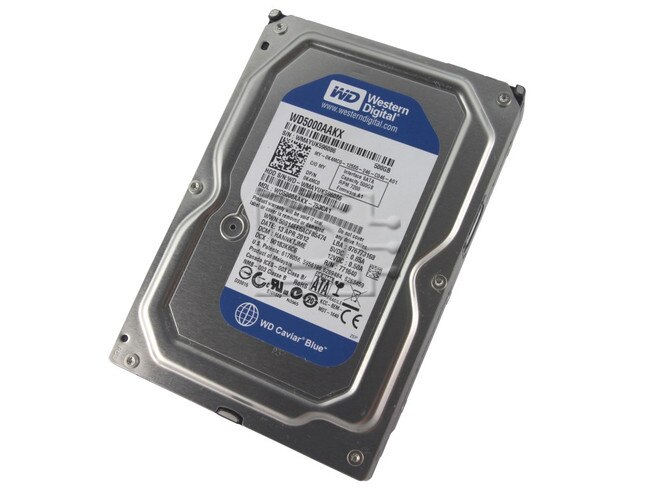

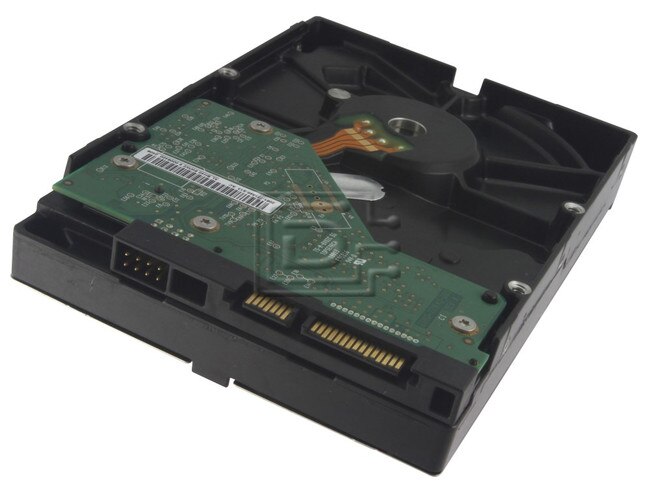

Western Digital Caviar Blue 500GB 7.2K SATA Hard Drive WD5000AAKX - New Pull OEM
These drives are built utilizing the tried and true proven technology of the original award-winning WD Caviar 3.5-inch hard drives for desktop computers.
While SATA has become the industry standard interface, WD continues to manufacture desktop drives with a PATA interface for unique or legacy systems.
Built to the highest standards of quality and reliability, these drives offer features and capacity at an affordable price.
DPN: K4MC0 / 0K4MC0
Compatibility:
This drive is compatible with any of our SATA hot-swap trays.
Performance Specifications | WD5000AAKX |
Rotational Speed | 7200 RPM |
Buffer Size | 16 MB |
Transfer Rates | |
Buffer To Disk (Serial ATA) | 126 MB/s (maximum) |
Physical Specifications | |
Formatted Capacity | 500,107 MB |
Capacity | 500 GB |
Interface | SATA 600 MB/s |
User Sectors Per Drive | 976,773,168 |
Physical Dimensions | |
English | |
Height | 1.028 Inches (Max) |
Length | 5.787 Inches (Max) |
Width | 4.00 Inches (+/- 0.010 inch) |
Weight | 1.52 Pounds |
Metric | |
Height | 26.1 mm (Max) |
Length | 147 mm (Max) |
Width | 101.6 mm |
Weight | 0.69 kg |
Environmental Specifications | |
Operating Shock (Read) | 30G, 2 ms |
Non-operating Shock | 300G, 2 ms |
Acoustics | |
Idle Mode | 28 dBA (average) |
Seek Mode 0 | 33 dBA (average) |
Temperature (English) | |
Operating | 32° F to 140° F |
Non-operating | -40° F to 158° F |
Temperature (Metric) | |
Operating | 0° C to 60 ° C |
Non-operating | -40° C to 70° C |
Power Dissipation | |
Read/Write | 6.80 Watts |
Idle | 6.10 Watts |
Standby | .70 Watts |
Sleep | .70 Watts |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: K4MC0 0K4MC0 1WR32
Weight: 1.8 lb
Warranty: 1 Year DiscTech
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
