Western Digital Part #/MPN: WD5003ABYZ
DiscTech Item #: WDC-WD5003ABYZ-FR-OE
- Factory RefurbishedCondition Levels Explained
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.
Product Warranties ExplainedThe product has a manufacturer warranty for the time period specified.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Enterprise Grade
Capacity: 500GB
Speed: 7,200RPM
Interface Types: SATA
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 128
Electrical Interface: SATA 600 - 6.0Gbps
On-Board Cache: 64MB

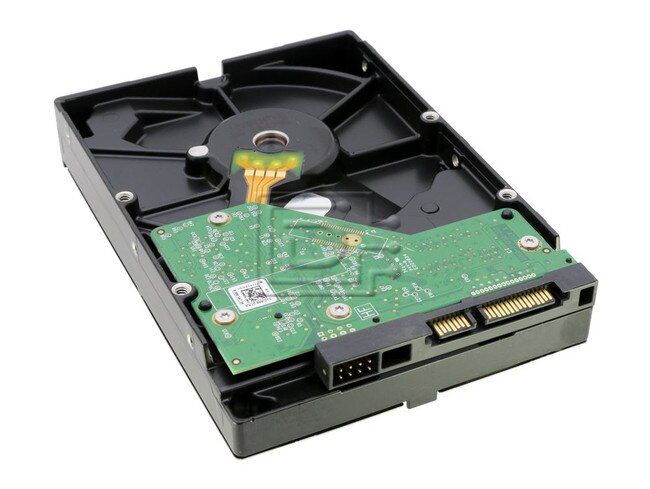

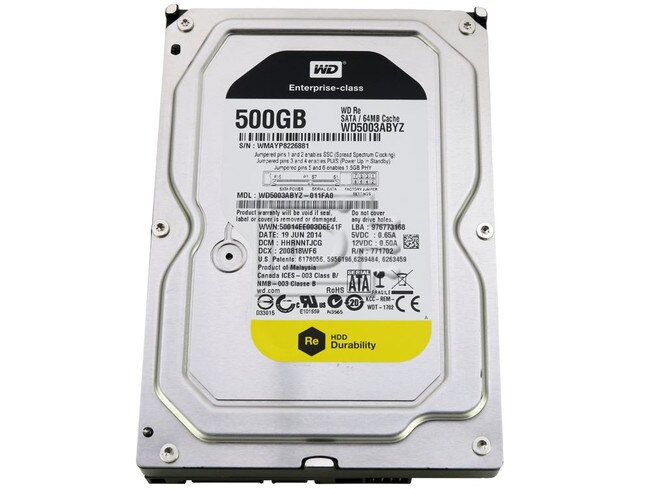

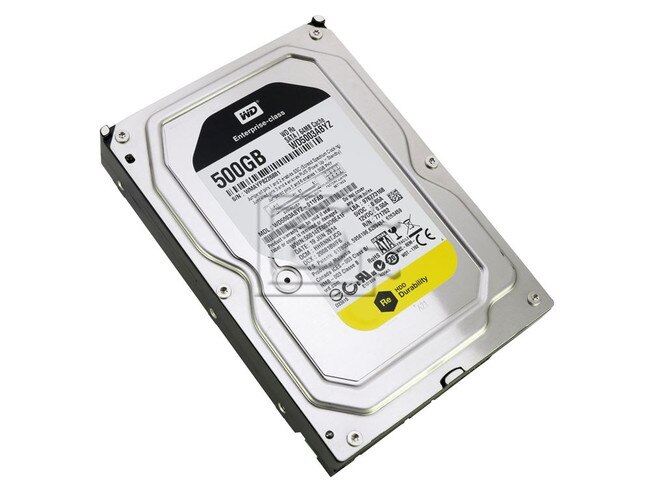

Western Digital Re WD5003ABYZ 500GB 6Gbps 7.2K Enterprise SATA Hard Drive - Factory Recertified
Western Digital Re WD5003ABYZ 500GB 6.0 Gbps 7,200 RPM Enterprise SATA Hard Drive - Factory Recertified
WD Re™ Datacenter Capacity HDD
Durable capacity storage for high-availability deployments
WD Re datacenter hard drives offer up to 4 TB capacities and are available with SAS or SATA interface. With the highest error tolerance and MTBF of any capacity-optimized drive, WD Re delivers the durability and 24x7x365 reliability required in tightly packed vibration prone multi-drive systems. The combination of high-capacity, peak performance and robust design make WD Re drives ideal for heavy workload environments, cloud storage, RAID arrays, external storage arrays, data warehousing and mining applications.
Product Benefits
Industry’s highest capacity nearline drive
Massive capacities up to 4 TB suit even the most demanding datacenter or cloud storage needs.
Designed for heavy application workloads
Designed to handle up to 550 TB per year in any heavy application datacenter with the highest workload capabilities of any WD 3.5 hard drive. Up to 6 Gb/s transfer rates and sustained sequential data rates of up to 182 MB/s, deliver performance and reliability to any datacenter environment.
Designed for quality and reliability
With up to 1.4 million hour MTBF, this high performance drive delivers durability and the highest level of reliability for 24x7x365 operation in the most demanding storage environments.
Vibration Protection
Enhanced RAFF™ technology includes sophisticated electronics to monitor the drive and correct both linear and rotational vibration in real time. The result is a significant performance improvement in high vibration environments over the previous generation of drives.
Environmentally responsible
In addition to being RoHS compliant, these drives are built with halogen reduced components.
Self Encrypting Drive (SED) option
Optional secure model for encrypting drives – Utilizing an AES 256 bit encryption engine for Crypto erase capability, WD supports both industry standard commands of the Sanitize Feature Set and also the Security Feature Set which utilizes the Secure Erase Unit (SEU) enhanced mode bit.
Multi-axis shock sensor
Automatically detects the subtlest shock events and compensates to protect the data.
RAID-specific, time-limited error recovery (TLER)
Prevents drive fallout caused by the extended hard drive error-recovery processes common to desktop drives.
NoTouch™ ramp load technology
The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.
Thermal extended burn-in test
Each drive is put through extended burn-in testing with thermal cycling to ensure reliable operation.
Dynamic fly height technology
Each read-write head’s fly height is adjusted in real time for optimum reliability
Dual processor
Twice the processing power to maximize performance.
Compatibility:
This drive is compatible with any server that accepts 3.5in x 1.0in (LFF) SATA drives.
| SPECIFICATIONS | |
|---|---|
| Model Number | WD5003ABYZ |
| Interface | SATA 6 Gb/s |
| Formatted Capacity | 500GB |
| User Sector per Drive | 976,773,168 |
| Native Command Queuing | Yes |
| Form Factor | 3.5-inch |
| RoHS Compliant | Yes |
| PERFORMANCE | |
| Data Transfer Rate (Max) - Buffer to Host - Host to/from Drive (Sustained) | 6 Gb/s 128 MB/s |
| Cache (MB) | 64 |
| Rotational Speed (RPM) | 7200 |
| RELIABILITY/DATA INTEGRITY | |
| Load/Unload Cycles | 600,000 |
| Non-Recoverable Read Errors per Bits Read | <10 in 10e16 |
| MTBF (hours) | 1,200,000 |
| AFR (%) | 0.73 |
| POWER MANAGEMENT | |
| Average Power Requirements (W) - Sequential Read - Sequential Write - Random Read/Write - Idle | 6.5 6.4 6.3 4.4 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature (°C) - Operating - Non-Operating | 5 to 55 -40 to 70 |
| Shock (Gs) - Operating (2 ms, Read/Write) - Operating (2 ms, Read) - Non-Operating (2 ms) | 30 65 300 |
| Acoustics (dBA) - Idle - Seek (average) | 27 30 |
| PHYSICAL DIMENSIONS | |
| Height (in/mm, max) | 1.028/26.1 |
| Length (in/mm, max) | 5.787/147 |
| Width (in./mm, ± .01 in.) | 4/101.6 |
| Weight (lb./kg, ± 10%) | 0.99/0.45 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Factory Refurbished
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.
The product has a manufacturer warranty for the time period specified.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
