Western Digital WD800BEVT 2.5" SATA Hard Disk Drives

Western Digital Part #/MPN: WD800BEVT

DiscTech Item #: WDC-WD800BEVT-NP-OE-DEL


$70.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$70.00

Capacity: 80GB

Speed: 5,400RPM

Interface Types: SATA

Form Factor: 2.5inx9mm Fits Most laptops

Sector Size: 512 / 512e

Average Seek Time: 12

Electrical Interface: SATA 300 - 3.0Gbps

On-Board Cache: 8MB

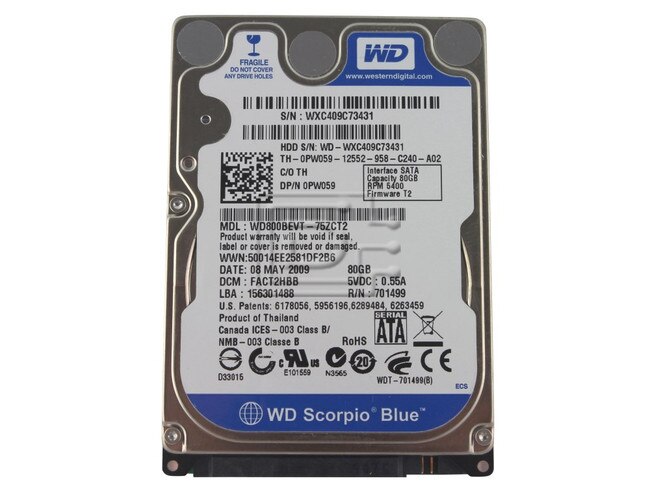

Western Digital Scorpio Blue WD800BEVT 80GB 5.4K 2.5" SATA Hard Drive - New Pull OEM

Quiet - In a notebook drive, silence is golden. WD’s exclusive WhisperDrive™ combines state-of-the-art seeking algorithms to yield one of the quietest 2.5-inch hard drives on the market. These algorithms also optimize the way a drive seeks for data, which significantly improves power consumption. So now silence (and longer battery life) is golden.

Reliable and Rugged - WD's ShockGuard™ technology protects the drive mechanics and platter surfaces from shocks. WD's SecurePark ™ parks the recording heads off the disk surface during spin up, spin down and when the drive is off. This ensures the recording head never touches the disk surface resulting in improved long term reliability due to less head wear, and improved non-operational shock tolerance.

Fast and Efficient - With 5400 RPM spin speed and 12 ms access time and up to 3 Gb/s SATA interface speed, even the most demanding customer will appreciate the performance achieved by WD Scorpio Blue drives.

Dell p/n: 0PW059 PW059

Performance Specifications
Rotational Speed5,400 RPM (nominal)
Buffer Size8 MB
Average Latency5.50 ms (nominal)
Seek Times
Read Seek Time12.0 ms
Track-To-Track Seek Time2.0 ms (average)
Transfer Rates
Buffer To Host (Serial ATA)3.0 Gb/s (Max)
Transfer Rate (Buffer To Disk)600 Mbits/s (Max)
Physical Specifications
Formatted Capacity80,026 MB
Capacity80 GB
InterfaceSATA 3.0 Gb/s
Physical Dimensions
English
Height0.374 Inches ±0.008 inch
Length3.94 Inches ±0.010 inch
Width2.75 ±0.010 inch
Weight0.26 Pounds
Metric
Height9.5 mm ±0.20 mm
Length100.2 ±0.25 mm
Width69.85 ±0.25 mm
Weight0.117 kg
Environmental Specifications
Acoustics
Idle Mode24 dBA (average)
Seek Mode 026 dBA (average)
Temperature (English)
Operating32° F to 140° F
Non-operating-40° F to 149° F
Temperature (Metric)
Operating0° C to 60° C
Non-operating-40° C to 65° C
Humidity
Operating8-90% RH non-condensing
Non-operating5-95% RH non-condensing
Altitude (English)
Operating-1,000 feet to 10,000 feet
Non-operating-1,000 feet to 40,000 feet
Altitude (Metric)
Operating-305M to 3,050M
Non-operating-305M to 12,200M
Vibration
Operating
Linear10-500 Hz, 1.0G (0 to peak)
Random10-500 Hz (0.309 g² / Hz)
Electrical Specifications
Current Requirements
5 VDC
Read/Write500 mA
Idle400 mA
Standby50 mA
Sleep20 mA
Power Dissipation
Read/Write2.50 Watts
Idle0.85 Watts
Standby0.25 Watts
Sleep0.10 Watts

Click here to view the manufacturer's item description/brochure

Alternate MPNs: 0PW059 PW059

Weight: 0.5 lb

Warranty: 1 Year DiscTech

New Pull

Condition Levels Explained

The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
