Western Digital Part #/MPN: WD9001BKHG
DiscTech Item #: WDC-WD9001BKHG-BN-OE-DEL
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 900GB
Speed: 10,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 204
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
On-Board Cache: 32MB

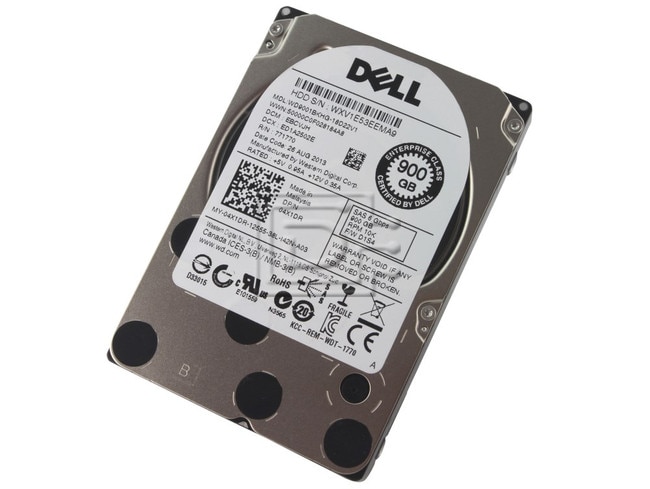

Dell 4X1DR / Western Digital WD XE WD9001BKHG 900GB 10K 2.5" Hard Drive - Brand New OEM
Dell 4X1DR / Western Digital WD9001BKHG WD XE 900GB 10K SAS 2.5 Hard Drive-Brand New
WD S25 SAS hard drives provide up to 900 GB of high performance storage suitable for both enterprise server and enterprise storage applications. The ultra-fast 6 Gb/s SAS interface enables optimum data reliability, availability, and scalability. In an environment where space and power are limited, the WD S25 drives are an effective solution for high performance computing solutions such as power-constrained data centers, database transaction processing, and rack, tower, and blade servers.
PNs: WD9001BKHG-02D22V1
DPN: 04X1DR 4X1DR
Compatibility:
This drive is compatible with any server that accepts small form factor (SFF) SAS hard drives
| Specifications | |
|---|---|
| Model number | WD9001BKHG |
| Model Name | S25 |
| Formatted Capacity | 900 Gbytes |
| Rotational Speed | 10,000 rpm |
| Default Buffer (cache) Size | 32 Mbytes |
| Sectors per drive | 1,758,174,768 |
| ROHS Compliant | Yes |
| Performance | |
| External (I/O) Transfer Rate (max) | 204 MBytes/sec |
| Physical | |
| Form Factor(width) | 2.75-inch |
| Form Factor(height) | .59-inch |
| Height | 15 mm |
| Width | 69.85 mm |
| Length | 100 mm |
| Weight | 0.23 kg |
| Electrical | |
| Power Dissipation Read/Write | .7.80 watts |
| Environmental | |
| Max Operating Shock (2-msec) | 65 Gs |
| Max Nonoperating Shock (2-msec) | 300 Gs |
| Operating Vibration (max) | .5 Gs |
| Nonoperating Vibration (max) | 2.4 Gs |
| Operating Temperature (max) | 55 deg C |
| Operating Temperature (min) | 5 deg C |
| Nonoperating Temperature (max) | 70 deg C |
| Nonoperating Temperature (min) | -40 deg C |
| Acoustical | |
| Nonrecoverable Read Errors | 1 per 10^16 bits read |
| Supports S.M.A.R.T. | Yes |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 04X1DR 4X1DR
Weight: 1 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
