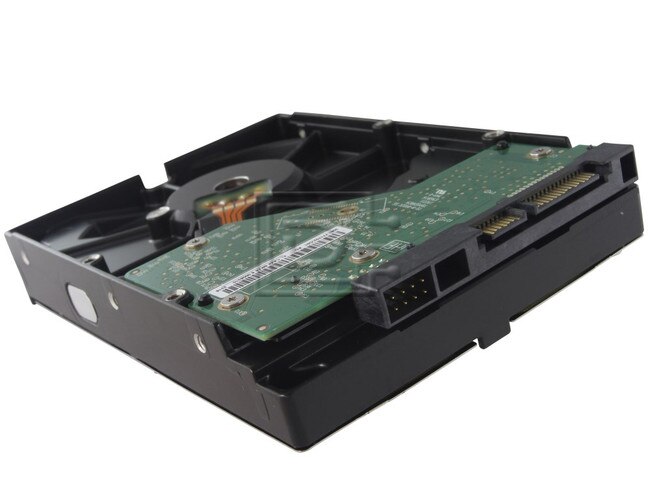

Western WD5003ABYX RE4 7.2K 3.5" Enterprise SATA Hard Disk Drives

Western Digital Part #/MPN: WD5003ABYX

DiscTech Item #: WDC-WD5003ABYX-FR-OE


$63.00
  • Special Order - Ships in 5-10 business days
    Special Order - Ships in 5-10 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.

$63.00

Enterprise Grade

Capacity: 500GB

Speed: 7,200RPM

Interface Types: SATA

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 128

Electrical Interface: SATA 300 - 3.0Gbps

On-Board Cache: 64MB

Western Digital Caviar RE4 WD5003ABYX 500GB 7.2K 3.5" Enterprise SATA Hard Drive - Factory Refurbished

Massive capacity:
WD RE4 Enterprise SATA drives are available with up to 2 TB of cavernous capacity.

Dual processor:
With double the processing power, WD RE4 boasts the highest performance of any drive in the WD RE family. RAFF™ Enhanced RAFF technology includes sophisticated electronics to monitor the drive and correct both linear and rotational vibration in real time. The result is a significant performance improvement in high vibration environments over the previous generation of drives.

Dual actuator technology:
A head positioning system with two actuators that improves positional accuracy over the data track(s). The primary actuator provides coarse displacement using conventional electromagnetic actuator principles. The secondary actuator uses piezoelectric motion to fine tune the head positioning to a higher degree of accuracy. (2 TB only)

StableTrac™
The motor shaft is secured at both ends to reduce system-induced vibration and stabilize platters for accurate tracking during read and write operations.

IntelliSeek™
Calculates optimum seek speeds to lower power consumption, noise, and vibration. Multi-axis shock sensor Automatically detects the subtlest shock events and compensates to protect the data.

RAID-specific, time-limited error recovery (TLER)
Prevents drive fallout caused by the extended hard drive error-recovery processes common to desktop drives. NoTouch™ ramp load technology The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.
Thermal extended burn-in test:
Each drive is put through extended burnin testing with thermal cycling to ensure reliable operation.

Third generation dynamic fly height: Each read-write head’s fly height is adjusted in real time for optimum reliability.

24x7 reliability:
With 1.2 million hours MTBF (tested at 100% duty cycle), these drives have the highest available reliability rating on a high-capacity drive.


Compatibility:

This enterprise hard drive will work with any server or storage array that supports SATA hard drives.


Specifications
Model number WD5003ABYX
Model Name RE4
Formatted Capacity 500 Gbytes
Rotational Speed 7,200 rpm
Default Buffer (cache) Size 64 Mbytes
Performance
External (I/O) Transfer Rate (max) 300 MBytes/sec
Average Latency 4.2 msec
Physical
Form Factor(width) 3.5-inch
Form Factor(height) 1-inch
Height 1.028 in. / 26.1mm
Width 4.0 in. / 101.6mm
Length 5.787in. / 147mm
Weight .99 lbs
Electrical Current Requirements
Read / Write6.4 Watts
Idle

4.5 Watts

Environmental
Max Operating Shock (2-msec) 65 Gs
Max Nonoperating Shock (2-msec) 350 Gs
Operating Vibration (max) .75 Gs
Nonoperating
Operating Temperature (max) 60 deg C
Operating Temperature (min) 0 deg C
Nonoperating Temperature (max) 70 deg C
Nonoperating Temperature (min) -40 deg C
Acoustical
Acoustics, Idle (sound power, typ) 28 dBA
Permormance seek mode33
Nonrecoverable Read Errors 1 per 10^16 bits read
Supports S.M.A.R.T.Yes

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 1.5 lb

Warranty: 1 Year Manufacturer

Refurbished

Condition Levels Explained

These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

1 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
