Dell Part #/MPN: H919N
DiscTech Item #: DEL-H919N-OB-OE-TEMP
- New Open BoxCondition Levels Explained
The product is new, either in resealed factory packaging or replacement packaging. (Typically on hard drives this means that the drives have been re-bagged).The item may be a customer returned item.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:7Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Interface Types: IEC 5-15P
Bays/Ports/Slots: 6
U Height: 2U
Wattage/VA: 1000W
Voltage: 110-120V

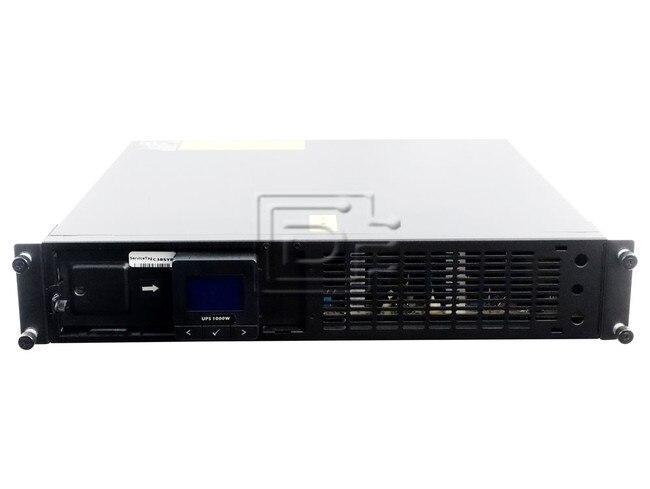

Dell 1000R H919N / 0WCJKH / WCJKH /1000W 120/100V 2U Rack Standby UPS Battery Backup - Open Box

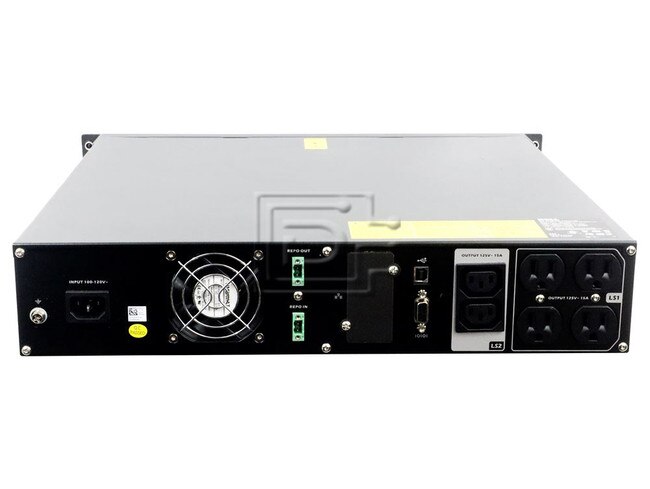

Dell Line-Interactive 1000R 225-2392 / 0WCJKH / H919N / 0H919N 1000W 120/100V 2U Rack Standby UPS / Uninterruptible Power Supply Battery Backup with (4) 5-15R, 15A; (2) IEC 320-C13, 15/10A - Open Box
System Features
- Buck and Boost voltage regulation that ensures regulated voltage to your load by correcting voltage fluctuations.
- Start-on-battery capability for powering up the UPS even if utility power is not available.
- Extended runtime with an optional External Battery Module (EBM) for 1500–2700W UPS models.
- Emergency shutdown control through the Remote Emergency Power-off (REPO) ports.
- Two standard communication ports (USB and DB-9 serial port).
- Optional Dell Network Management Card with enhanced communication capabilities for increased power protection and control.
- Advanced power management with the Dell UPS Management Software for graceful shutdowns and power monitoring.
- Sequential shutdown and load management through separate receptacle groups called load segments.
- Firmware that is easily upgradable without a service call.
- Backed by worldwide agency approvals.
| Dell UPS BATTERY BACKUP | |
|---|---|
| Model Number | 1000R |
| OVERVIEW | |
| UPS Type | Standby |
| Wattage | 100W |
| Voltage | 120/100V |
| Dimensions | 438 x 84.5 x 483 mm 2U |
| Weight | 19kg (41.8 lb) |
| Input | |
| Nominal Voltage | 100/120V |
| Voltage Range | 84-150V |
| Nominal Frequency | 50/60 Hz |
| Efficiency | >95% |
| Noise Filtering | Full-time EMI/RFI filtering |
| Connections | IEC 320-C14 Input connector, 15A |
| Output | |
| Power Levels | 1000W |
| Regulation (Normal Mode) | 92-108V |
| Regulation (Battery Mode) | 92-108V |
| Voltage Waveform | Sine Wave |
| Output Receptacles | (4) 5-15R, 15A; (2) IEC 320-C13, 15/10A |
| Environmental and Safety | |
| Operating Temperature | Up to 1,500 meters: 0°C to 40°C (32°F to 104°F) Above 1,500 meters: 0°C to 35°C (32°F to 95°F) |
| Transit/Storage Temperature | -15°C to 60°C (5°F to 140°F) |
| Relative Humidity | 0–95% noncondensing |
| Audible Noise | Normal mode: less than 40 dBA typical Battery mode: less than 50 dBA typical |
| Battery | |
| Configuration | (3) 12V, 9Ah internal batteries |
| Voltage | 36 Vdc internal |
| Fuses | (2) 30A fuses |
| Charging | Approximately 4 hours to 90% usable capacity at nominal line and no supplementary power supply load |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 0WCJKH WCJKH 225-2392
Weight: 62 lb
Warranty: 1 Year DiscTech
