Toshiba Part #/MPN: MG03ACA100
DiscTech Item #: TOS-MG03ACA100-BN-OE-DEL
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 1TB
Speed: 7,200RPM
Interface Types: SATA
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 165
Average Seek Time: 8.5 / 9.5
Electrical Interface: SATA 600 - 6.0Gbps
On-Board Cache: 64MB

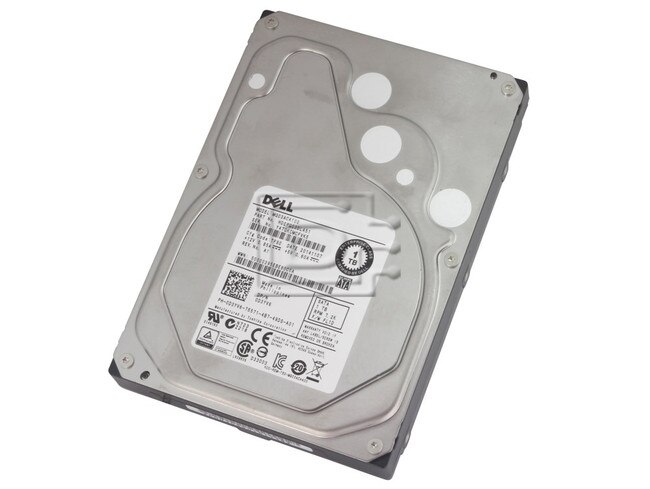

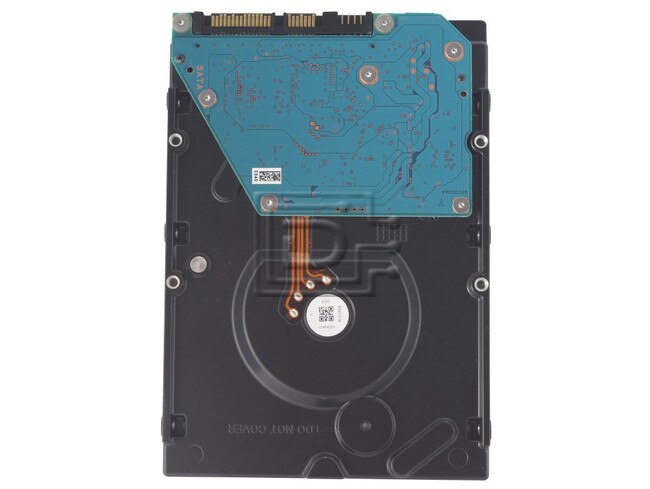

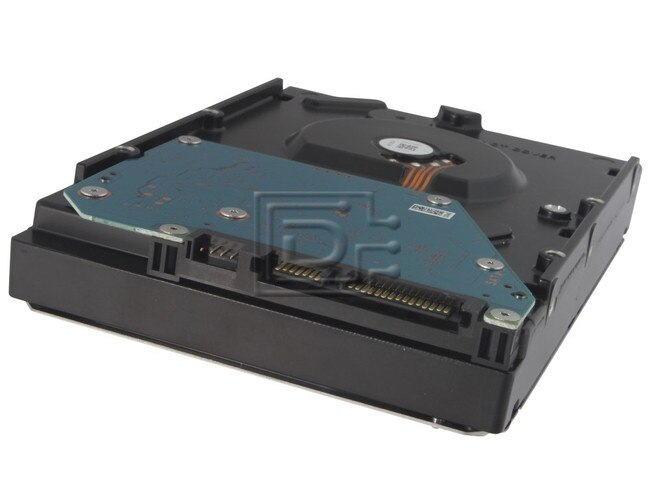

Dell Enterprise D3YV6 / Toshiba MG03ACA100 1TB / 1000GB 7.2K 6.0Gbps SATA Hard Drive - Brand New OEM
Overview
The highest capacity enterprise-class disk storage designed for entry-server workloads and capacity-intensive Tier 2 business critical networked storage systems, cloud file and object-oriented storage, and disk-to-disk data protection applications.
- Lowest Cost Per GB Enterprise Storage Option
- 6 Gb/sec SAS and 6 Gb/sec (SATA) Interfaces
- Error Correction (ECC)
- Optional Self-encrypting (SED) Models
Dell Part Number: D3YV6
ALT. PN: HDEPQ03DLA51
Compatibility:
This drive is compatible with any of our 3.5" SATA drive trays and any of our SATA controllers.
| SATA 6Gbps Models | ||||
| Standard | MG03ACA400 | MG03ACA300 | MG03ACA200 | MG03ACA100 |
| Encryption T13 SANITIZE crypto-scramble & T13 ATA security erase | MG03ACA400Y | MG03ACA300Y | MG03ACA200Y | MG03ACA100Y |
| 6Gbps SAS (2.0) Models | ||||
| Standard | MG03SCA400 | MG03SCA300 | MG03SCA200 | MG03SCA100 |
| Encryption TT10 SANITIZE crypto-erase & TCG_Enterprise SSC | MG03SCP400 | MG03SCP300 | MG03SCP200 | MG03SCP100 |
| Series Overview | ||||
| Drive Capacity | 4TB | 3TB | 2TB | 1TB |
| Preformance | ||||
| Rotational Speed | 7,200 RPM | |||
| Average Latency | 4.17ms | |||
| Sustained transfer rate | 165 MB/s | 155 MB/s | ||
| Buffer Size | 64MiB FIFO ring buffer | |||
| Power Requirments | ||||
| Voltage | 5V 5% , 12V 5% | |||
| Read / Write Power | 11.3 watts | |||
| Low Power Idle | 6.0 watts | |||
| Reliability | ||||
| MTTF | 1.2M Hours | |||
| Load/Unload | 600,000 Times | |||
| Operation Condition | 24/7 | |||
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: D3YV6 0D3YV6 HDEPQ03DLA51
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
