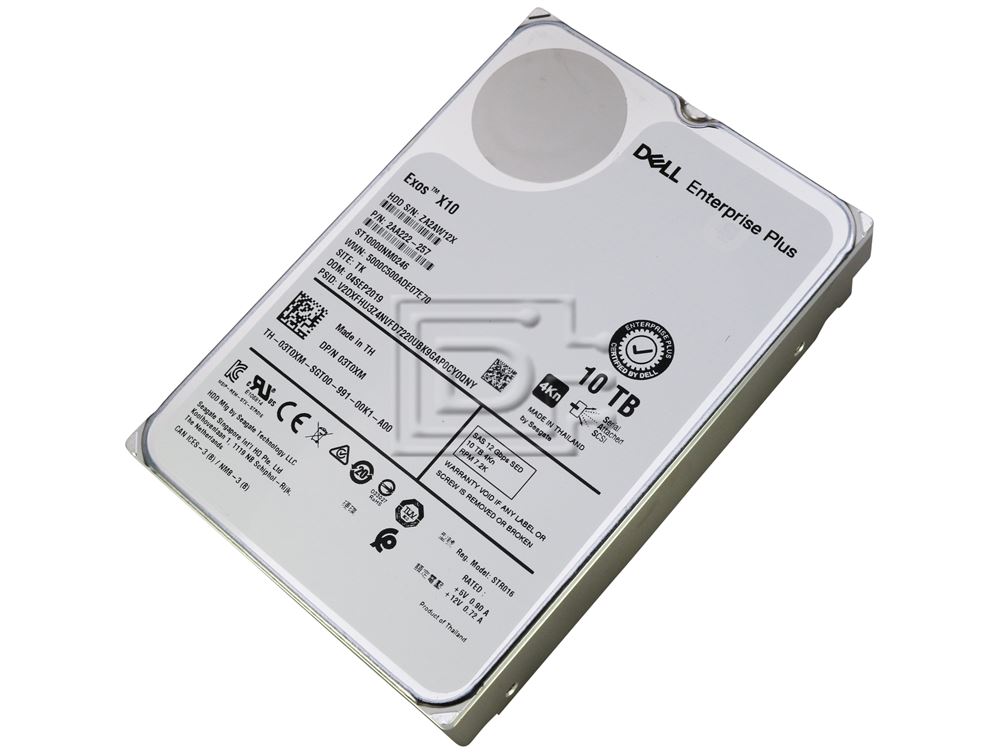

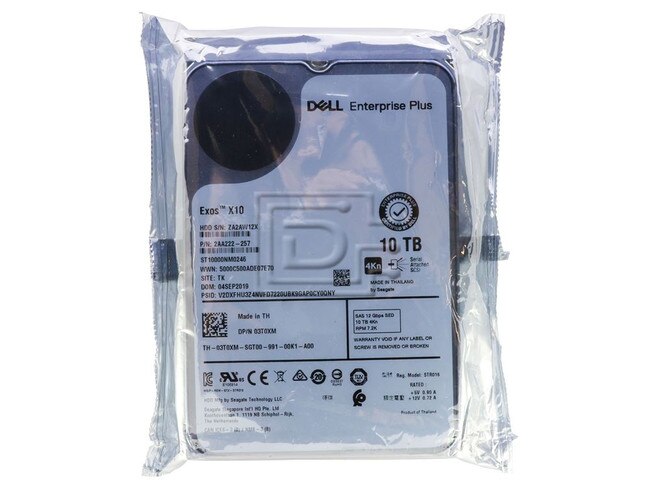

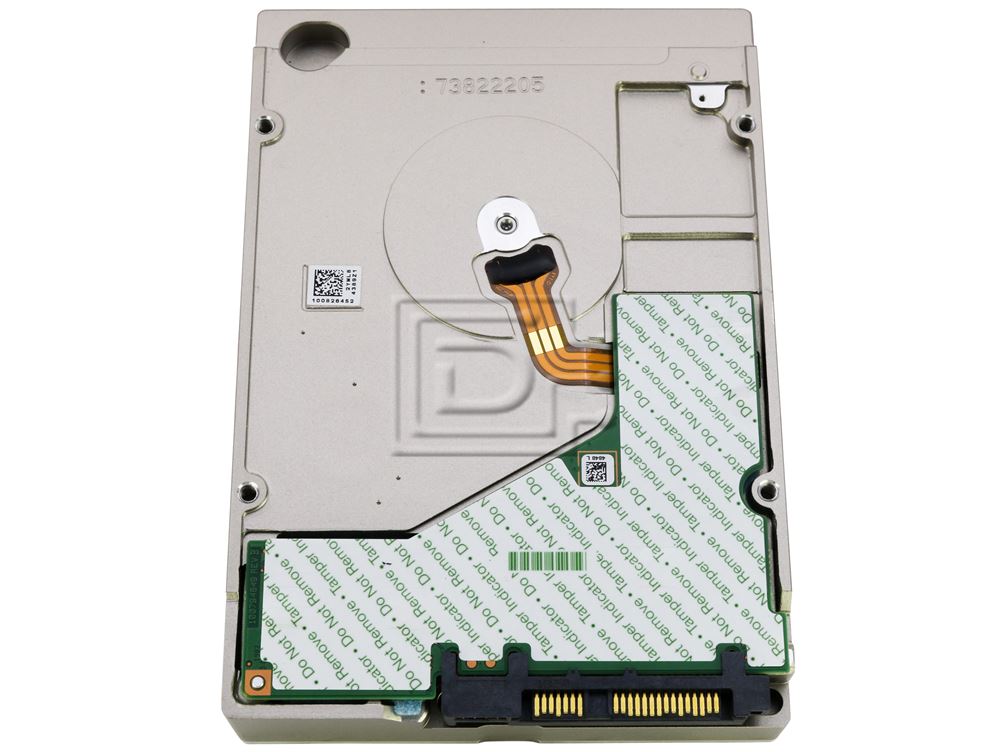

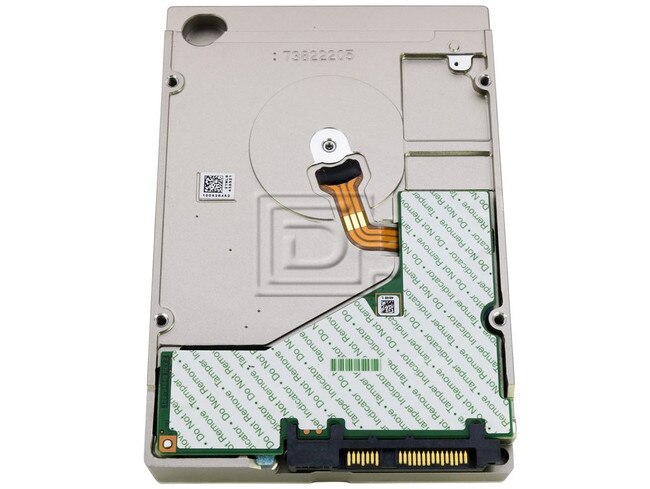

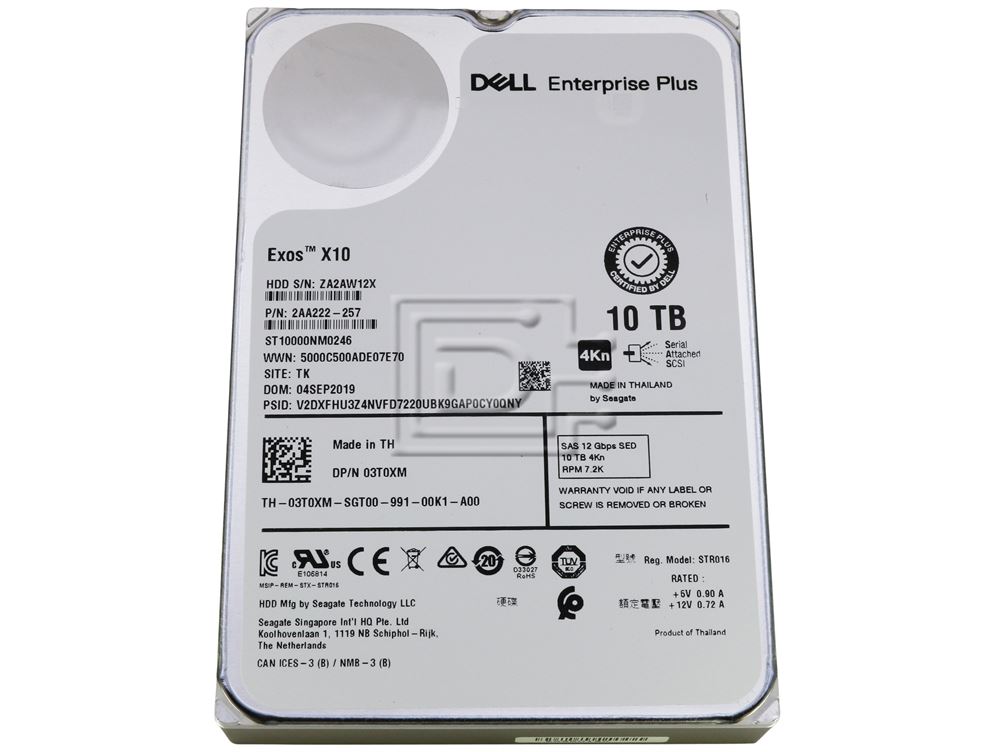

Dell Enterprise Plus 3T0XM / Seagate Helium ST10000NM0246 10TB 3.5" LFF 12Gbps 4Kn SED-FIPS SAS Hard Drive

Seagate Part #/MPN: ST10000NM0246

DiscTech Item #: SGT-ST10000NM0246-BN-OE-DEP


$449.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$449.00

Enterprise Grade

Capacity: 10TB

Speed: 7,200RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 3.5inx1.0in LFF Hard Drive

Encryption/SED Supported

Sector Size: 4Kn

Sustained Throughput: 254

Average Seek Time: 4.16

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps

On-Board Cache: 256MB

Dell Enterprise Plus 3T0XM / Seagate Helium ST10000NM0246 10TB 3.5" LFF 12Gbps 7.2K RPM Enterprise 4Kn SED-FIPS SAS Hard Drive - Brand New

Dell 3T0XM / Seagate Helium ST10000NM0246 10TB / 10000GB 3.5" LFF / Large Form Factor 12.0 Gb/s 7200 RPM Enterprise 4Kn / 4K Native SED / Self Encrypting FIPS / Federal Information Processing Standards SAS / Serial Attached SCSI HDD / Hard Drive - Brand New Enterprise Plus OEM

Maximum Storage Capacity for Highest Rack Space Efficiency

  • 10TB per drive 1 for 25% more petabytes per rack
  • Industry's lowest power and weight for optimum data center TCO
  • Forged, wrought-aluminum base and a helium sealed-drive design with uniform density and no porosity
  • Superior material and weld-width design for a more robust, hermetically sealed-drive enclosure that protects from helium leaks
  • Digital environmental sensors for measuring internal humidity, pressure and temperature, helping to ensure high reliability, performance and quality
  • Latest hermetic interconnect technology supporting higher data rate heads and higher pin counts for extreme thermal conditions
  • Proven enterprise-class reliability backed by 2.5M-hr MTBF



Best-Fit Applications

  • Hyperscale applications/cloud data centers
  • Massive scale-out data centers
  • High-capacity density RAID storage
  • Mainstream enterprise external storage arrays
  • Distributed file systems, including Hadoop and Ceph
  • Enterprise backup and restore—D2D, virtual tape
  • Centralized surveillance

DPN 3T0XM / 03T0XM
Part # 2AA222-257


Compatibility:

This drive is compatible with any server that accepts 3.5inx1.0in SAS Drive.

Specifications
Capacity10TB/10,000GB
SED-FIPS/Common Criteria Model (4Kn)ST10000NM0246
Features
Helium Sealed-Drive Design With Wide WeldYes
Digital Environmental SensorsYes
Protection Information (T10 DIF)Yes
SuperParityYes
PowerChoice™ Power/Performance TechnologyYes
Low Halogen/Hot-Plug SupportYes
Cache, Multisegmented (MB)256
Organic Solderability PreservativeYes
Reliability/Data Integrity
Mean Time Between Failures (MTBF, hours)2.5 Million
Reliabilility Rating @ Full 24x7 Operation (AFR)0.35%
Non-recoverable Read Errors per Bits Read, Max1 sector per 10E15
Power-On Hours8760
512e Sector Size (Bytes per Sector)512, 520, 528
4Kn Sector Size (Bytes per Sector)4096, 4160,
Performance
Spin Speed(RPM)7200RPM
Interface Access Speed (Gb/s)12.0, 6.0, 3.0
Max. Sustained Transfer Rate OD (MB/s)254MB/s
Random Read/Write 4K QD16 WCD (IOPS)170, 370
Average Latency (ms)4.16
Interface PortsDual
Rotational Vibration @ 1500Hz (rad/s)12.5
Power Consumption
Idle A (W) Averge5.5W
Max Operating Power, Random Write (WCD) 4K/4Q RR50% / RW50%9.0
Max Operating Power, Random Read 4K/16Q (W)9.4
Power Supply Requirements+12 V and +5 V
Environmental
Temperature, Operating (°C)5°C – 60°C
Vibration, Nonoperating: 10Hz to 500Hz (Grms)2.27
Shock, Operating 2ms (Read/Write) (Gs)70/40Gs
Shock, Nonoperating, 1ms/2ms (Gs)250
Physical
Height (mm/in, max)26.11mm/1.028in
Width (mm/in, max)101.85mm/4.010in
Depth (mm/in, max)147.0mm/5.787in
Weight (g/lb)650g/1.433lb

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 2AA222-257 3T0XM 03T0XM

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
