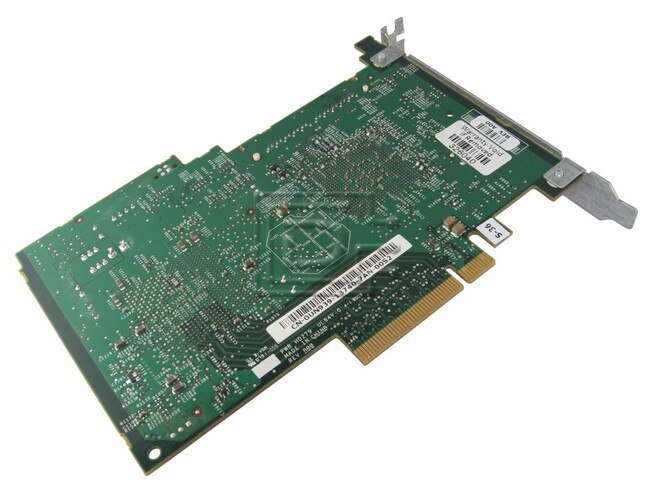

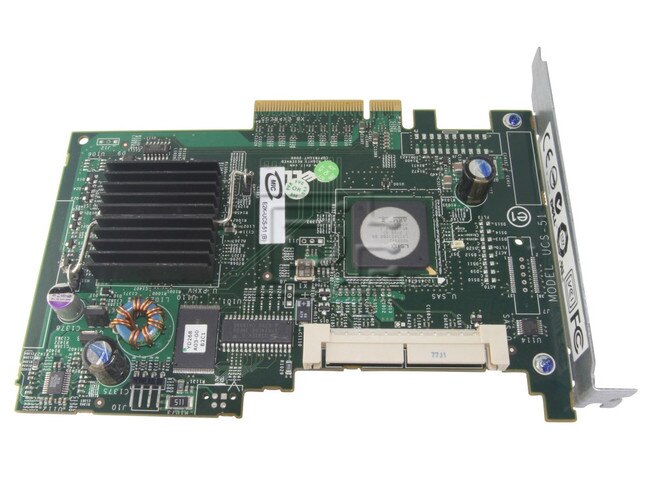

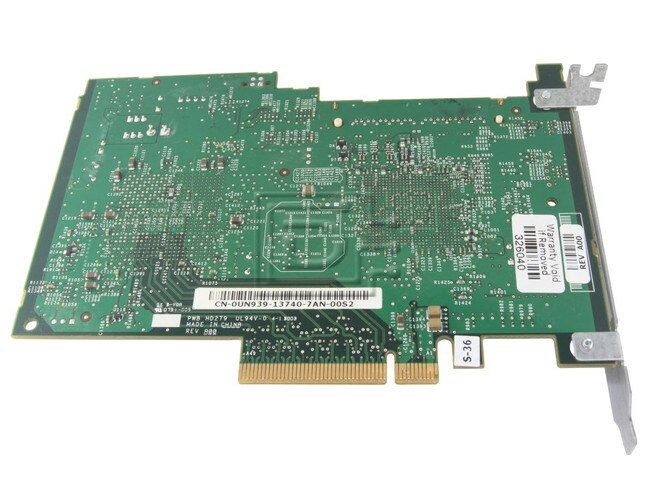

Dell MG129 SAS 5iR 5/iR SAS / Serial Attached SCSI RAID Controller

Dell Part #/MPN: 341-4341

DiscTech Item #: DEL-341-4341-BN-OE

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Interface Types: SAS Serial Attached SCSI, SATA, PCIe, SFF-8484

Electrical Interface: SAS-1 Serial Attached SCSI - 3.0Gbps

Bays/Ports/Slots: 1

Dell SAS 5iR 5/iR Single Channel SAS / Serial Attached SCSI RAID Controller, PCI Express MG129 / UN939 / GU186 / 341-4341 / 341-4349 / 341-3874 1x SFF8484 - Brand New

The SAS 5/iR PCI Express RAID Adapter from Dell is used to connect internal hard drives in PowerEdge Servers. SAS 5/iR utilizes high performance SAS 3 Gb/s technology to connect to the hard drives, and the latest generation of host interface technology, PCI Express (PCI-E). The SAS 5/iR supports only internal disks and provides integrated capability for RAID levels 0 and 1. The SAS 5/iR is managed by two different management utilities, depending on host platform. This product has been tested and validated on Dell systems. It is supported by Dell Technical Support when used with a Dell system.

This controller has one SFF-8484 internal connectors.

Manufacturer Part# : MG129
Dell Part# : 341-4341

Device TypeStorage controller (RAID) - plug-in card
Interface Type
PCI Express x4
Storage Controller
Controller Interface TypeSerial Attached SCSI
Data Transfer Rate
300 MBps
Supported Devices
Disk array (RAID)
Channel Qty
RAID Level
Expansion / Connectivity
Interfaces1x SFF-8484
Compatible Slots
1 x PCI Express x4

Click here to view the manufacturer's item description/brochure

Alternate MPNs: GU186 UN939 341-3874 MG129 0MG129

Weight: 2 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
