Dell Force10 S2410-01-10GE-24P / T4TYD

Dell Part #/MPN: S2410-01-10GE-24P

DiscTech Item #: DEL-S2410-01-10GE-24P-RF-OE


$251.00
$251.00

Interface Types: Ethernet RJ45

Electrical Interface: Ethernet 10Gigabit - 10Gbps

Bays/Ports/Slots: 24

Wattage/VA: 200W

Voltage: 110-240V Multi

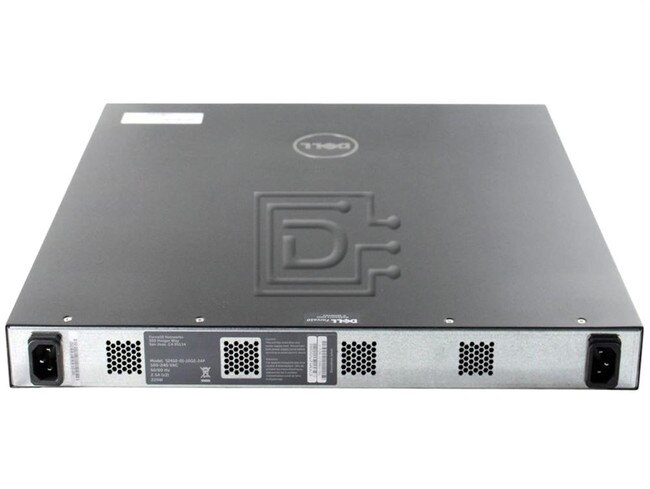

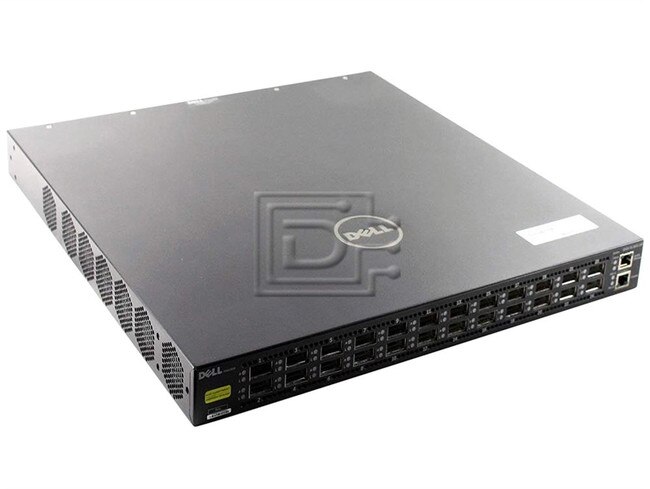

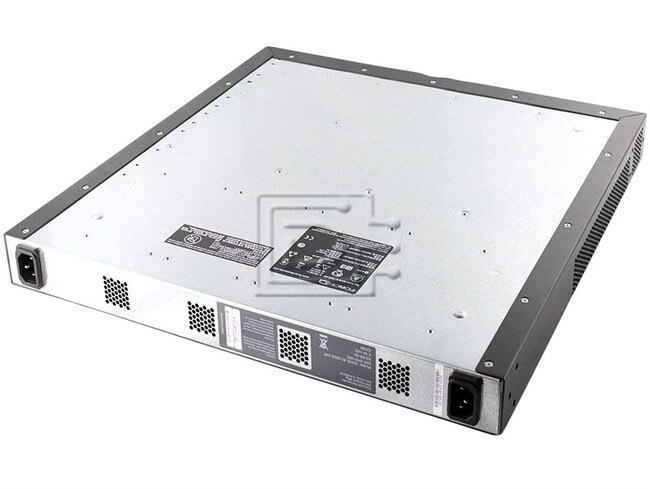

Dell Force10 S2410-01-10GE-24P / T4TYD / S2410P 24-port Ethernet Switch - Refurbished

Dell Force10 S-series S2410-01-10GE-24P 24-port 10 GbE switch with 24 XFP ports and layer 2 software – XFP modules required

Alt Model Number: T4TYD

Dell Force10 S-Series
S2410 Data Center Center 10 Gbe Switch

High 10 Gigabit Ethernet density for the data center edge; end-to-end 10 Gigabit Ethernet data center solutions; standards-based Layer 2 features.

High Performance, Low Latency 10 GbE Data Center Switches
The Dell Force10 S-Series S2410 combines the industry’s lowest Ethernet switching latency with industry leading 10 GbE density to provide IT managers with more flexible deployment options.

  • 24-port 10 GbE fixed configuration 1-RU data center switch
  • S2410P – 24-port 10 GbE switch with 24 XFP ports and layer 2 software – XFP modules required
  • Ultra low 10 GbE switching latency

Key Application
Coupled with the Dell Force10 E-Series, which delivers unmatched resiliency and performance, the S2410 enables IT managers to deploy a reliable end-to-end 10 GbE data center solution, spanning from core aggregation to the server or storage edge

  • Ultra low latency interconnect switch for high performance cluster computing
  • Low cost 10 GbE interconnect to network attached storage systems
  • Low cost aggregation of 10 GbE uplinks from S25N or S50N switches in server racks
  • Connects directly to 10 GbE servers
  • Foundation for a virtualized applications model

Key Features
The S2410 is a resilient and scalable high-density, low-latency 10GbE switch for high-performance Ethernet environments.

  • 24 line-rate 10GbE ports in a 1-RU form factor
  • S2410P: 24 XFP interfaces
  • Switching latency as low as 300ns under full load
    • 64 byte to 10,240 byte frames
  • Switching fabric capacity of 480Gbps and forwarding capacity of 360Mpps
  • Supports jumbo frames of up to 10,240 bytes for high-end server connectivity and network attached file servers
  • 12 link-aggregation groups with up to 12 members per group, using advanced hashing for even traffic distribution
  • Built-in power redundancy
  • CX4 interfaces support up to 1W of power per port for active cables or electrical to optical extender

S-Series S2410P data center switch
Model NumbersS2410-01-10GE-24P
Alt Model Numbers0T4TYD S2410P WT0R4  0WT0R4 T4TYD
DescriptionS2410P – 24-port 10 GbE switch with 24 XFP ports and layer 2 software – XFP modules required
PHYSICAL
Size 1 RU, 1.73 h x 17 w x 16.73” d (4.4 h x 43.2 w x 42.5 cm d)
Weight 14.3 lbs (6.5 kg)
Power Supply100–240 VAC 50/60 Hz
Maximum power consumption:225W
Maximum thermal output768 BTU/h
Maximum current draw1.15 A at 100/120 VAC, 1.025 A at 200/240 VAC
Maximum Operating Specifications
Temperature32° to 104°F (0° to 40°C)
Operating humidity 10 to 90 percent (RH), non-condensing
Maximum Non-operating Specifications
Storage Temperature–4° to 158°F (–20 to 70°C)
Storage humidity10 to 95 percent (RH), non-condensing
ReliabilityMTBF 240,105 hours
PERFORMANCE
Layer 2 MAC addresses16K
Switching fabric capacity480 Gbps (360 Mpps)
Link aggregation 12 links per group, 12 groups per switch
Queues per port4 queues
VLANs1024 VLANs with 4096 tag value support
Line-rate Layer 2 switchingall protocols, including IPv4 and IPv6
Switching latency300 ns (CX4 ports), 700 ns (XFP ports)

Click here to view the manufacturer's item description/brochure

Alternate MPNs: 0T4TYD S2410P WT0R4 0WT0R4 T4TYD

Weight: 15 lb

Warranty: 1 Year DiscTech

Refurbished

Condition Levels Explained

These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
