Toshiba Part #/MPN: PX03SNF080
DiscTech Item #: TOS-PX03SNF080-NP-OE-DEL
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 800GB
Speed: Solid State Memory
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx7mm Fits All laptops
Sector Size: 512 / 512e
Sustained Throughput: 1100
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Read Intensive

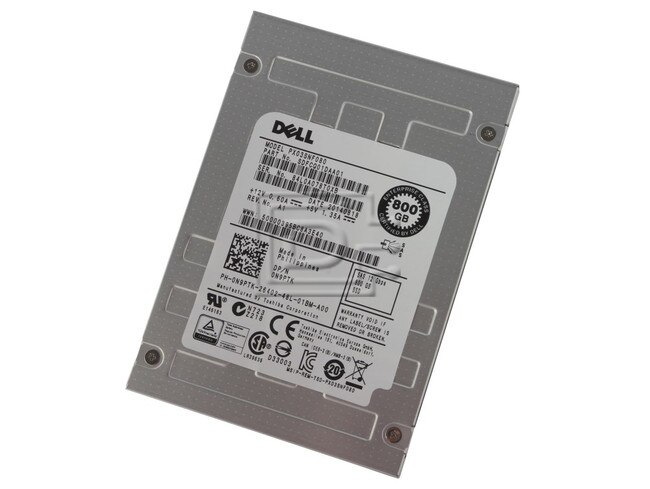

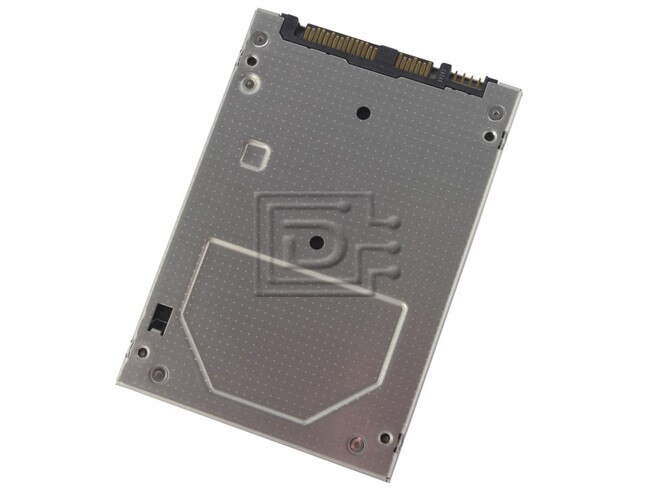

Dell Toshiba PX03SN Series PX03SNF080 / N9PTK 800GB 12Gbps 2.5" Read-Intensive eMLC 1-DWPD SAS SSD - New Pull OEM
Dell Toshiba PX03SN Series PX03SNF080 / N9PTK 800GB 12Gbps 2.5" Read-Intensive Enterprise MLC 1-DWPD SAS SSD - New Pull OEM
DPN: N9PTK, 0N9PTK
Read-intensive 2.5" SAS Enterprise SSD optimized for light-duty storage and read-caching applications; featuring 12Gb SAS and industry standard self-encrypting technology.
- 19nm MLC NAND Process
- 12 Gb/sec SAS Interface & 6 Gb/sec SAS Interface
- Quadruple Swing by Code, Layered ECC Approach for Improved Error Correction
- Power Loss Protection
- DWPD (Drive Writes Per Day) - 1
Compatibility:
This drive is compatible with any server that accepts 2.5"x7mm SAS drives.
| PX03SN Series Solid State Drive | |
|---|---|
| Standard Model Number | PX03SNF080 |
| Series Overview | |
| Drive Capacity | 800GB |
| NAND Technology | 19nm MLC |
| Drive Interface | SAS 12 Gb/sec, Dual port |
| Performance | |
| DWPD (Drive Writes Per Day) | 1 |
| 4KiB Random Read (Sustained) | 130,000 IOPS |
| 4Kib Random Write (Sustained) | 26,000 IOPS |
| 4Kib Random 70/30 Read/Write (Sustained) | 63,000 IOPS |
| 64Kib Sequential Read (Sustained) | 1100 MiB/s 910MiB/s |
| 64Kib Sequential Write (Sustained) | 380 MiB/s |
| MTTF (hours) | 2,000,000 |
| Power Requirements | |
| Voltage | 5V (+/- 5%), 12V (+/- 5%) |
| Power Consumption | 2.7 W Typ. |
| Energy Consumption Efficiency | 24,400 IOPS/W |
| Physical | |
| Dimensions (W)x(D)x(H) | 69.85 mm x 100.45 mm x 7.0 mm |
| Weight | 70g Max. |
| Environmental | |
| Temp Operating Non-Operating | 0° to 55°C -40° to 70°C |
| Vibration Operating Non-Operating | 21.27 m/s2 (2.17Grms) (5 to 800Hz) 159.74 m/s2 (16.3Grms) (20 to 2000Hz) |
| Shock Operating Non-Operating | 9,800 m/s2 (1,000G) / 0.5 ms duration 9,800 m/s2 (1,000G) / 0.5 ms duration |
| Reliability | |
| Operation Condition (hrs x days) | 24x7 |
| Total Bytes Written | 1460 TB |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: N9PTK 0N9PTK
Weight: 0.5 lb
Warranty: 1 Year DiscTech
