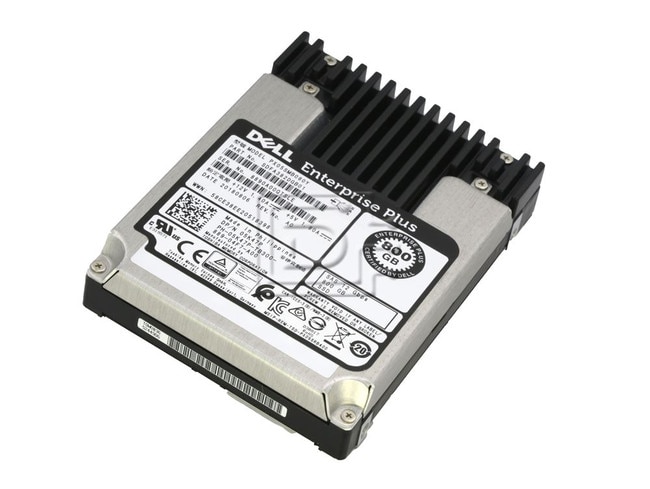

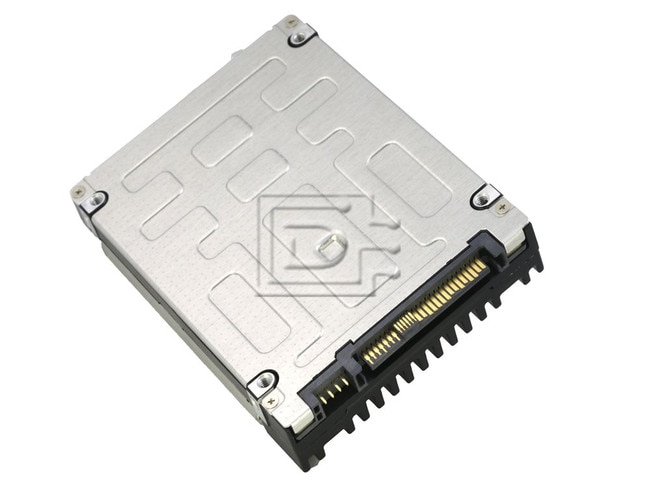

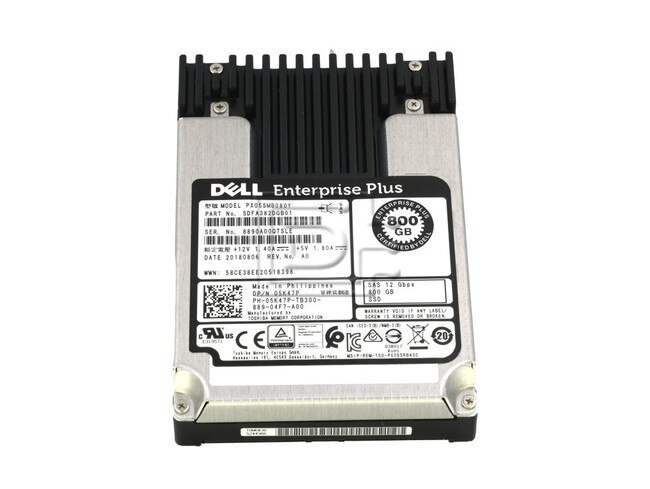

Toshiba Part #/MPN: PX05SMB080Y
DiscTech Item #: TOS-PX05SMB080Y-NP-OE-DEP
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 800GB
Speed: Solid State Memory
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 1900
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Write Intensive
Compatible Systems: Dell 14th Gen. R640/R740, Dell 13th Gen. R730/T630, Dell 12th Gen. R720/T620, Dell 11th Gen. R710/T610
ALT DPN: 5K47P 0P5K47P
The PX05S Series is our 4th generation enterprise SAS SSD leveraging the highly successful PX04S Series. The PX05SM Series is optimized for mission-critical hyperscale and virtualized environments. With 270k IOPS random read performance, the 12.0 Gbit/s SAS SSD delivers a unique customer-tunable power and performance feature allowing optimization for power efficiency or maximum performance.
Further features of the impressive series include power-loss protection and data path protection. Each model is available as a self-encrypting drive with instant secure erase and supports pin-3 power disable for improved enclosure services control over storage media.
The Enterprise Write Intensive SSDs offer 10 DWPD (Drive Writes Per Day) with capacities of up to 3.2TB and is designed to deliver high-levels of performance, quality and reliability for high writes applications such as online transaction processing (OLTP) and e-commerce.
Key Features:
- Up to 3.2TB Storage Capacity with Dual-Port 12.0 Gbit/s SAS Interface
- 270K IOPS random read (4K) performance
- 2.5-type Form-Factor, 15mm Z-Height
- 10 DWPD with 100% Random Write Workload
- Power-Loss-Protection and End-to-End Data Protection including T10 DIF
- Pin-3 Power Disable Support
- Sanitize Instant Erase (SIE)* Option
- Self-Encrypting (SED)* Option
- Self-Encrypting (SED), FIPS Certified * Option
Key Applications:
- Mission-Critical Enterprise Workloads
- Hyperscale and Virtualized Environments
- General online transaction processing (OLTP)
- E-commerce
Compatibility:
Compatible with any server that accepts 2.5"x15mm SAS drives. |
| eMLC NAND PX02SM Series Solid State Drive | |
|---|---|
| Standard Model Number | PX05SMB080Y |
| Drive Capacity | 800GB |
| Drive Interface | SAS-3 / 12Gbps |
| Performance | |
| DWPD (Drive Writes Per Day) | 10 |
| Sequential 64KiB Read (Sustained) | 1,900 MiB/s |
| Sequential 64KiB Write (Sustained) | 850 MiB/s |
| 4KB Random Read (Sustained) | 270,000 IOPS |
| 4KB Random Write (Sustained) | 90,000 IOPS |
| Product Life | 5 years |
| Reliability | |
| Mean Time to Failure (MTTF) | 2,000,000 hours |
| Availability (hrs/day x days/wk) | 24 x 7 |
| Power Requirements | |
| Voltage | 5V (+/- 5%), 12V (+/- 5%) |
| Physical Size | |
| Dimensions (W) x (D) x (H) | 69.85 mm x 100 mm x 15 mm |
| Weight (max) | 150 g (5.29 oz) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 5K47P 05K47P
Weight: 0.8 lb
Warranty: 1 Year DiscTech
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
