EMC Unity D3-PS12FX-800 / D3FC-PS12FX-800 / 005051549 / 005051545 800GB SAS 12Gbps 520 SSD

EMC Part #/MPN: D3-PS12FX-800

DiscTech Item #: EMC-D3-PS12FX-800-BN-OE


Enterprise Grade

Capacity: 800GB

Speed: Solid State Memory

Interface Types: SAS Serial Attached SCSI

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 520

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps

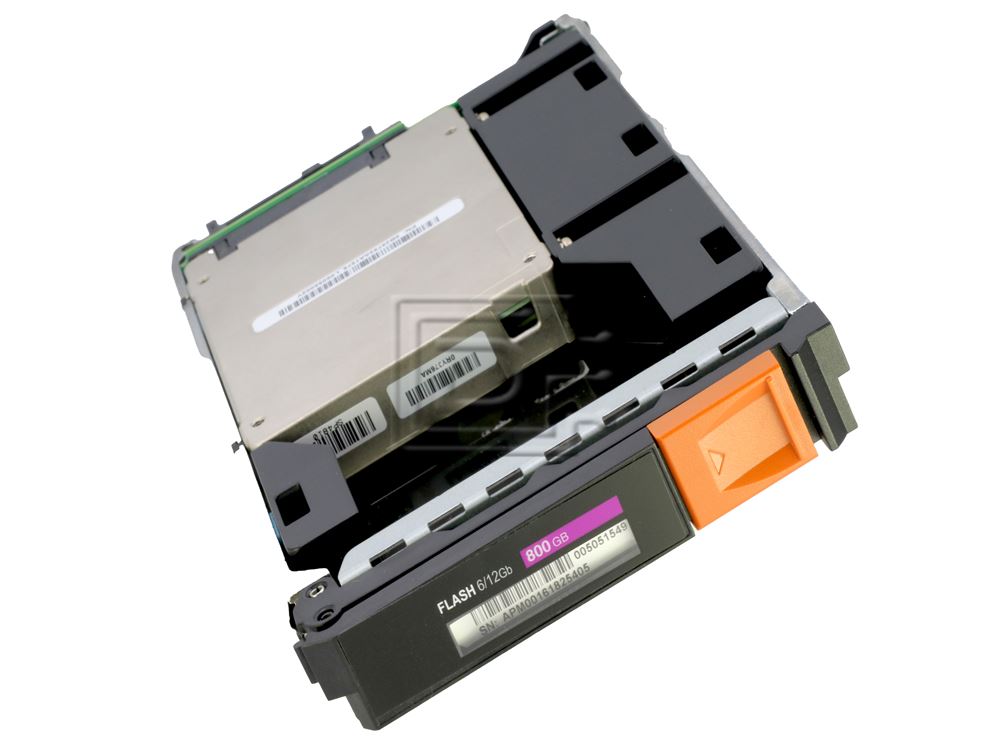

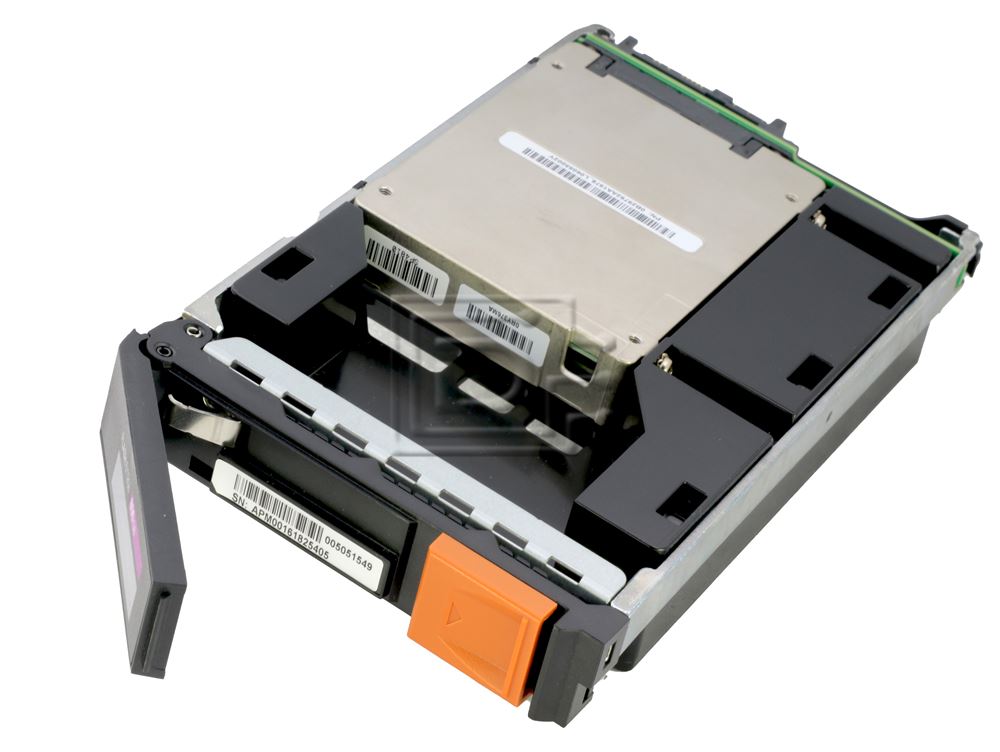

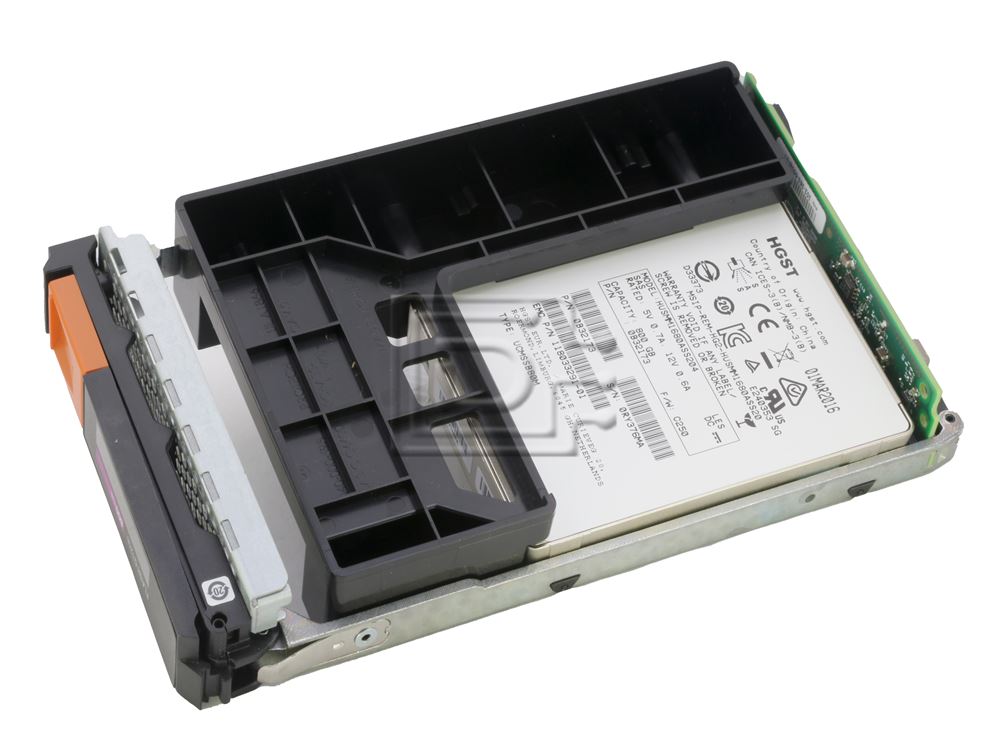

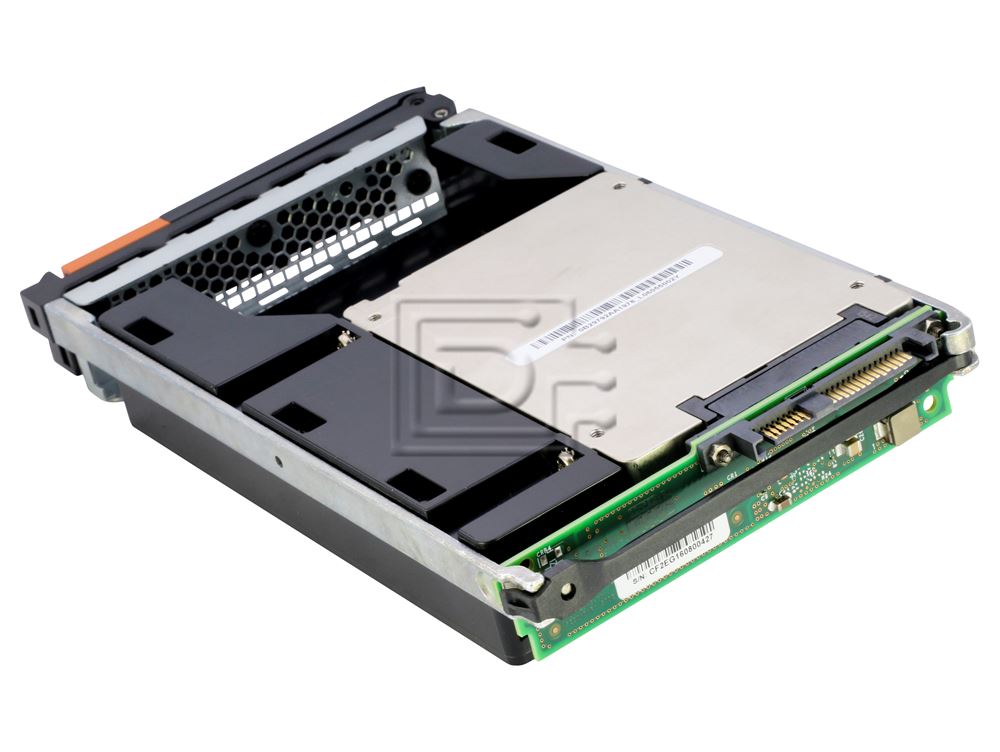

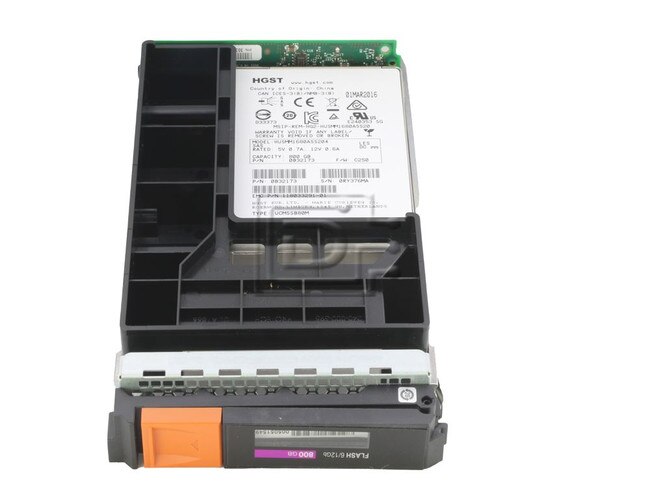

EMC Unity D3-PS12FX-800 / D3FC-PS12FX-800 / 005051549 / 005051545 800G 3.5" 12Gbps SAS 520 Solid State Drive w/ tray - Brand New

EMC Unity Storage Systems D3-PS12FX-800 / D3FC-PS12FX-800 / 005051549 / 005051545 800G 3.5" 12Gbps SAS 520 SSD / Solid State Drive w/ tray - Brand New

EMC / HGST Enterprise Storage

EMC leverages decades of proven enterprise storage expertise in Serial Attached SCSI (SAS) design, reliability, firmware, customer qualification and system integration to the Ultrastar® SSD1600MM solid-state drive (SSD) family. The synergistic relationship between HGST’s throughput-enhancing SSDs and traditional HDDs provides cost effective, end-to-end enterprise-class storage solutions, delivering reliability, compatibility, capacity, cost and system performance. This combination makes HGST a leading SSD/HDD provider with the experience and technology needed to meet escalating reliability, endurance and performance in the most demanding enterprise environments.

Maximum Performance,

Reliability and Endurance The Ultrastar SSD1600MM delivers high sequential throughput, up to 1100MB/s read and 765MB/s write (12Gb/s SAS). It also delivers up to 130,000 read and 100,000 write IOPS, reaching speeds >100 times faster than HDDs and double the speed of current 6Gb/s SSDs, allowing rapid access to “hot” enterprise data for improved productivity and operational efficiency. The Ultrastar SSD1600MM family offers significant value in terms of IOPS per Watt, while reducing total cost of ownership (TCO) through low power consumption, efficient cooling and reduced space requirements.

Alt Pt#" 0B33600 / HUSMM1680ASS200


This drive is compatible with 12-Slot EMC Unity Storage System servers and storage arrays that accept a 3.5" x 15mm SSD drive including:

EMC Unity 300 EMC Unity 400 EMC Unity 500 EMC Unity 600

Product Specifications
Product Name D3-PS12FX-800
Product Type Solid State Drive
Drive Interface SAS
Drive Width 3.5"
Drive Interface Standard 12Gb/s SAS
Drive Type Internal
Storage Capacity 800GB
Sector Size 520

ROHS Compliant

Alternate MPNs: D3FC-PS12FX-800 005051549 5051549 005051545

Weight: 0.5 lb
