Fujitsu MAX3073RC SAS Hard Drives

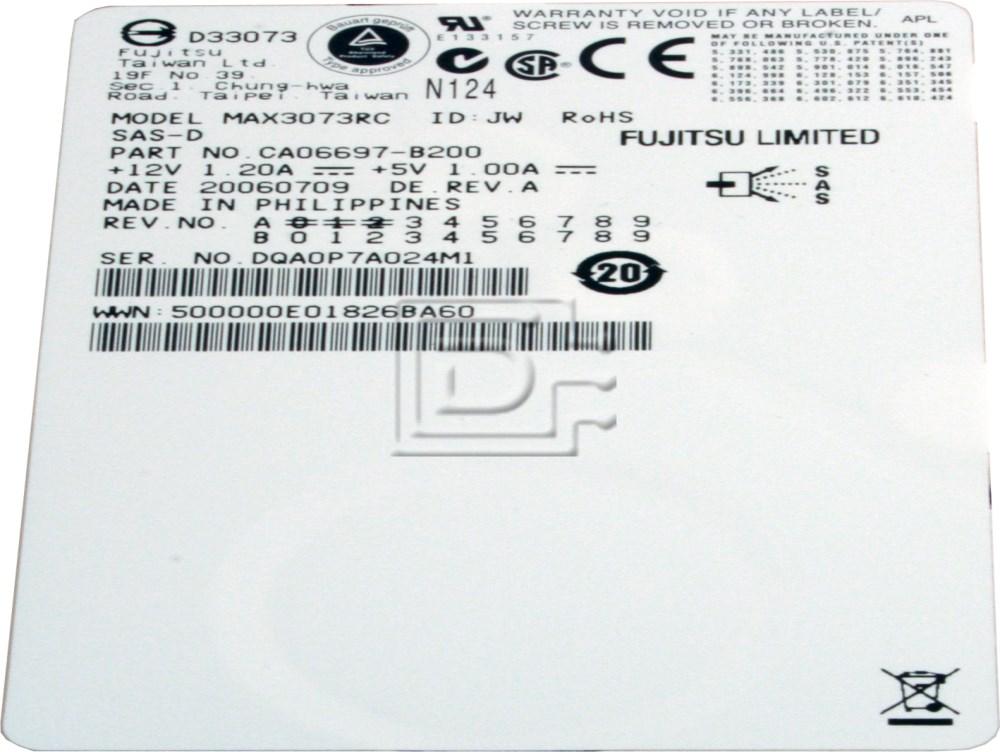

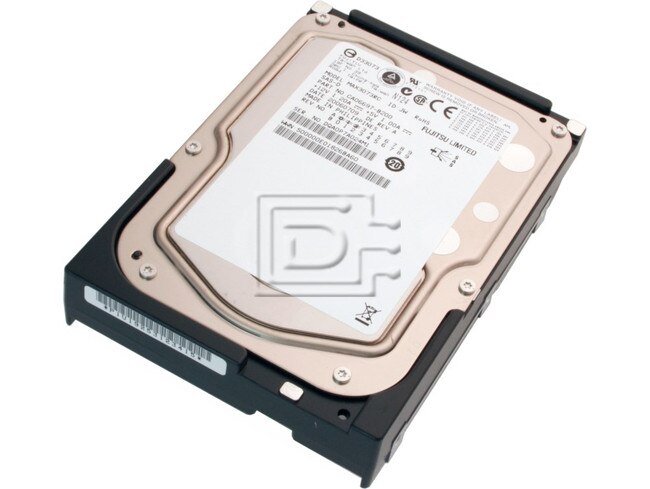

FUJITSU MAX3073RC SAS Hard Drive Image 1 image
  • Refurbished
    Condition Levels Explained

    These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

  • Special Order - Ships in 5-10 business days
    Special Order - Ships in 5-10 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$49.00

Capacity:73GB
Speed:15K RPM
Interface Types:SAS
Form Factor:3.5" LFF Hard Drive
Electrical Interface:SAS-1 3Gbps
RAM:8MB

Description

Fujitsu MAX 73GB 15K 3Gbps Serial Attached SCSI Hard Drive MAX3073RC - Refurbished

Fujitsu MAX 73GB 15K 3Gbps Serial Attached SCSI Hard Drive MAX3073RC - Refurbished

Compatibility: Powervault MD1000, Dell PowerEdge 2900, 2950, 1900, 1950, 6900, 6950

Specifications

 Form Factor3.5-inch x 1-inch high  Mounting screws6#32UNC  Seek time (track to track)Read 0.2 / Write 0.4 milliseconds Seek time (average)3.3/3.8 milliseconds (read/write) Seek time (full track)8.0/9.0 milliseconds (read/write) Average latency time2.00 milliseconds Rotational speed15,000 RPM Data Buffer Size8 MB Recording code32/34 MEEPRML  InterfaceSAS (3Gbps)  Head positioning methodROTARY VCM  Spindle start time30 seconds typical Spindle stop time30 seconds typical Power requirement Idle (ready)11.5 W (typical) Height25.4 millimetres Width101.6 millimetres Depth146.0 millimetres Weight0.75 kg Ambient temperature (operating)5 to 55 degrees C Ambient temperature (non-operating)-40 to 70 degrees C Maximum DE surface temperature (operating)55 max deg. C Gradient15 degrees C per hour Relative humidity (operating)5 to 95 % RH (non-condensing) Relative humidity (non-operating)5 to 95 % RH (non-condensing) Maximum wet bulb29 degrees C (non-condensing) Vibration (operating)0.6mm (5 to 20 Hz)/ 1.0G (20 to 300 Hz)  Vibration (non-operating)3.1mm (5 to 20 Hz)/ 5.0G (20 to 300Hz)  Shock (operating)65G Max (2ms)  Shock (non-operating)250G Max (2ms)  Altitude (operating)3,000 metres Altitude (non-operating)12,000 metres Acoustic noise (at 1 metre idle)3.6 bels MTBF (Mean Time Between Failures)1,200,000 power on hours Component life (years)
Design life used to calculate MTBF. NOT Warranty5 years Unrecoverable errors1 per 10^15 bits read Seek errors10 per 10^8 seeks
Click here to view the manufacturer's item description/brochure

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Condition

Refurbished

Warranty

1 Year DiscTech Warranty
