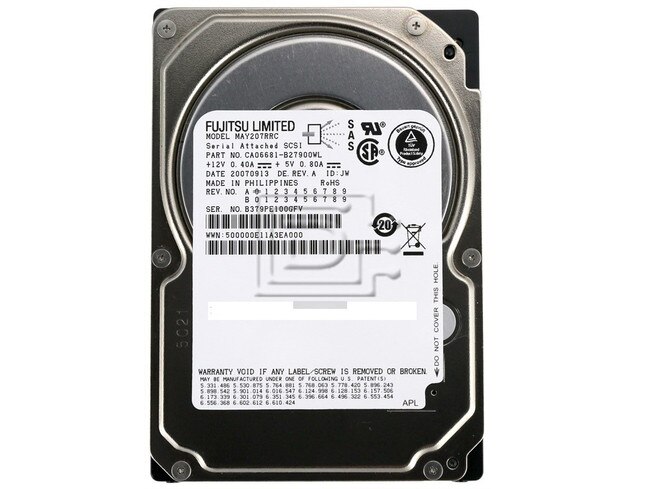

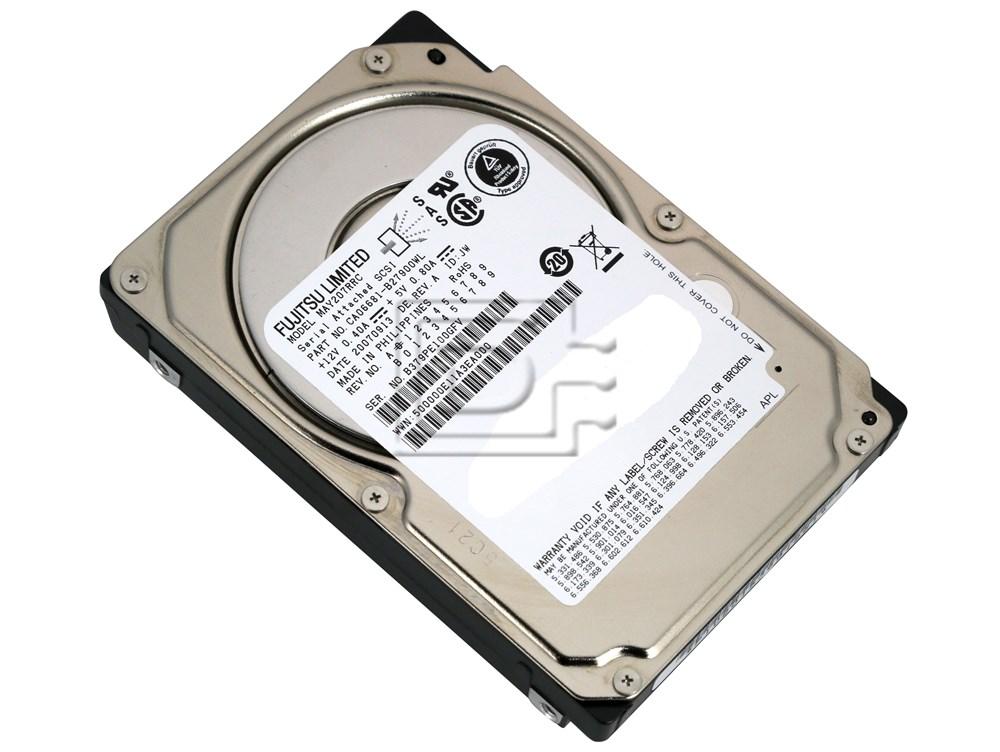

FUJITSU Part #/MPN: MAY2073RC
DiscTech Item #: FUJ-MAY2073RC-RF-OE
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Enterprise Grade
Capacity: 73GB
Speed: 10,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Average Seek Time: 4 / 4.5
Electrical Interface: SCSI LVD U320 - 320MBps 16-bit
On-Board Cache: 16MB
Compatible Systems: Dell 10th Gen. 2950 / 6950
Compatibility: Dell PowerEdge 1950, 1955, 2900, 2950, 6950
Compaq/HP Proliant:
BL20p G4, BL460c, BL465c, BL480c, DL360 G4p, DL360 G5, DL380 G4, DL380 G5, DL385, DL385 G2, DL580 G3, DL580 G4, DL585, DL585 G2, ML350 G5, ML370 G4, ML370 G5, ML570 G3, ML570 G4
| FUNCTIONAL SPECIFICATIONS | |
| Formatted storage capacity | 73.5 GB |
| Seek time (track to track) | Read 0.2 / Write 0.4 ms. typ. |
| Seek time (average) | 4.0/4.5 ms. typ. (read/write) |
| Seek time (full track) | 8.0/9.0 ms. typ. (read/write) |
| Average latency time | 2.99 ms. |
| Rotational speed | 10,025 RPM |
| Interface | SAS (3Gbps) |
| Data Buffer Size | 16 MB |
| Recording code | 32/34 MEEPRML |
| Head positioning method | ROTARY VCM |
| Spindle start time | 15 seconds typical |
| Spindle stop time | 15 seconds typical |
| PHYSICAL SPECIFICATIONS | |
| Power requirement Idle (ready) | 4.5 W typ. |
| Form Factor | 2.5-inch x 15mm high |
| Mounting screws | #4 x M3 |
| Height | 15.0 mm |
| Width | 69.85 mm |
| Depth | 100.45 mm |
| Weight | 0.22 kg |
| Ambient temperature (operating) | 5 to 55 degrees C |
| Ambient temperature (non-operating) | -40 to 70 degrees C |
| Maximum DE surface temperature (operating) | 55 max deg. C |
| Gradient | 15 degrees C per hour |
| Relative humidity (operating) | 5 to 95 % RH (non-condensing) |
| Relative humidity (non-operating) | 5 to 95 % RH (non-condensing) |
| Maximum wet bulb | 29 degrees C (non-condensing) |
| Vibration (operating) | 0.6mm (5 to 20 Hz)/ 1.0G (20 to 300 Hz) |
| Vibration (non-operating) | 3.1mm (5 to 20 Hz)/ 5.0G (20 to 300Hz) |
| Shock (operating) | 100G Max (1ms) |
| Shock (non-operating) | 400G Max (1ms) |
| Altitude (operating) | 3,000 metres |
| Altitude (non-operating) | 12,000 metres |
| Acoustic noise (at 1 metre idle) | >/=2.9 (ready) bels |
| RELIABILITY | |
| MTBF (Mean Time Between Failures) | 1,400,000 power on hours |
| Component life (years) Design life used to calculate MTBF. NOT Warranty | 5 years |
| Unrecoverable errors | 1 per 10^15 bits read |
| Seek errors | 10 per 10^8 seeks |
Click here to view the manufacturer's item description/brochure
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
