FUJITSU Part #/MPN: MBA3300NP
DiscTech Item #: FUJ-MBA3300NP-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 300GB
Speed: 15K RPM
Interface Types: SCSI 68pin HD68
Form Factor: 3.5" LFF Hard Drive
Sector Size: 512 / 512e
Average Seek Time: 3.4/3.9
Electrical Interface: SCSI LVD U320 - 320MBps 16-bit
On-Board Cache: 8MB

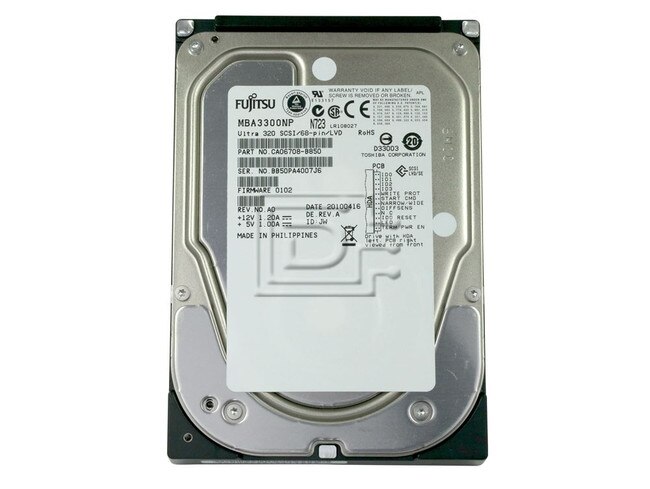

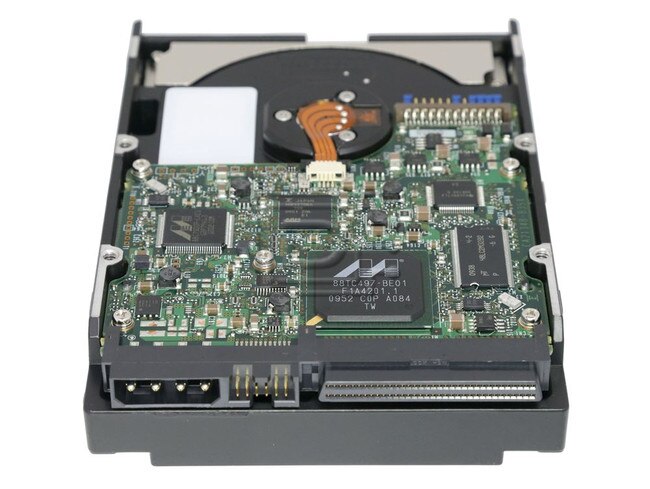

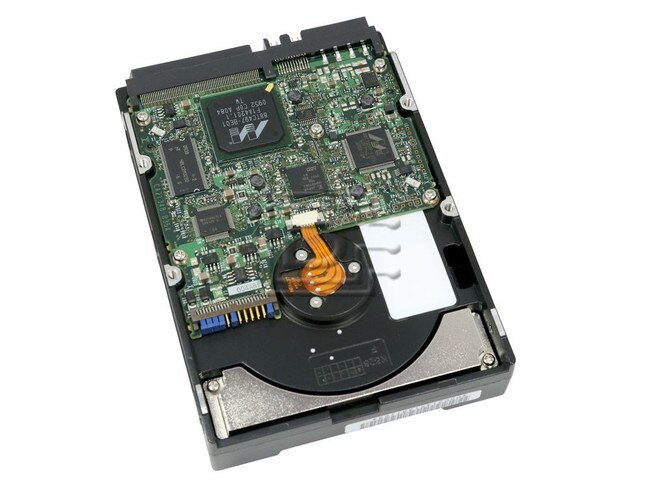

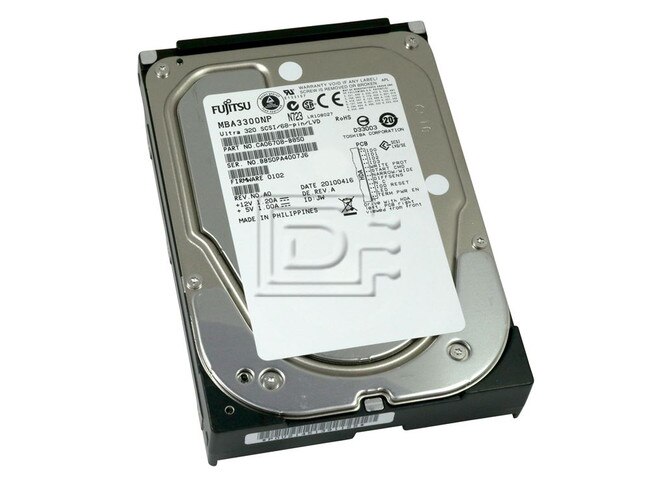

Fujitsu MBA3300NP 300GB 15K U320 68pin SCSI Hard Drive RoHS Compliant - Brand New
Fujitsu's latest generation 15K RPM Enterprise Hard Disk Drives (MBA Series) continue to represent some of the fastest enterprise 3.5-inch hard disk drives in the industry. Leveraging our technology expertise and heritage, we deliver reliable, high-capacity HDDs for your customer’s most demanding storage applications.
With 73, 147 and 300GB capacity points this latest drive technoogy offers low power consumption, high reliability, and faster internal data rates. Interface options include 3Gb/sec SAS, 68/80-pin U320 SCSI and 4Gb/sec Fibre Channel.
Leading edge technology enables industry leading performance specifications blended with the latest advances in interface technology. This provides a flexible and cost effective storage solution for your most demanding applications including rack and tower servers, storage arrays, RAID systems and digital video systems.
Fujitsu p/n: CA06708-B850
Compatibility:
This drive is compatible with any of our SCSI controllers.
| Model | MBA3073 NC/NP | MBA3147 NC/NP | MBA3300 NC/NP | ||
|---|---|---|---|---|---|
| Functional Specifications | |||||
| Storage Capacity (formatted) | 73.5 GB | 147.0 GB | 300.0 GB | ||
| Disks | 1 | 2 | 4 | ||
| Heads (read/write) | 2 | 4 | 8 | ||
| Bytes/Sector | 512 | ||||
| Seek Time | Track to track | Read: 0.2 ms (typ) / Write: 0.4 ms (typ) | |||
| Average | Read: 3.4 ms (typ) / Write: 3.9 ms (typ) | ||||
| Full track | Read: 8.0 ms (typ) / Write: 9.0 ms (typ) | ||||
| Average Latency | 2. ms | ||||
| Rotational Speed | 15,000 RPM | ||||
| Data Transfer Rate | To/from media | 147 MB/s | |||
| To/from host | SCSI: 320 MB/s | ||||
| Recording Code | 60/62 MEEPRML | ||||
| Interface | SCA-2 80Pin (NC Series), 68Pin Wide (NP Series) | ||||
| Head Positioning Method | Rotary VCM | ||||
| Start Time | 20 s (typ) | ||||
| Stop Time | 20 s (typ) | ||||
| Buffer Size | 8 MB | ||||
| Physical Specifications | |||||
| Power Requirements | Voltage | 5 V ± 5%, 12 V ± 5% | |||
| Idle (typ.) | 9.5 W | ||||
| Dimensions (HxWxD) | 25.4mm x 101.6mm x 146.0mm | ||||
| Weight | 750g | ||||
| Ambient Temperature | Operating | 5°C to 55°C | |||
| Non-operating | -40°C to 70°C | ||||
| Gradient | 20°C/H max | ||||
| Relative Humidity | Operating | 5% to 95% (non-condensing) | |||
| Non-operating | 5% to 95% (non-condensing) | ||||
| Max. wet bulb | 29°C (operating) | ||||
| Vibration | Operating | 0.6 mm (5 to 20 Hz) / 1.0 G (20 to 300 Hz) | |||
| Non-operating | 3.1 mm (5 to 20 Hz) / 5.0 G (20 to 300 Hz) | ||||
| Shock | Operating | 65 G max. (2 ms) | |||
| Non-operating | 250 G max. (2 ms) | ||||
| Altitude (operation) | Operating | 3,000 m (max.) | |||
| Non-operating | 12,000 m (max.) | ||||
| Acoustics Noise (idle sound power) (typ.) | </= 3.6 bels (ready) | ||||
| Reliability Specifications | |||||
| MTBF | 1,400,000 hours | ||||
| Component Life | 5 years | ||||
| Error Rates | Seek errors | 10 per 108 seeks | |||
| Unrecoverable errors | 10 per 1016 bits read | ||||
Alternate MPNs: CA06708-B850
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
