FUJITSU Part #/MPN: MBE2147RC
DiscTech Item #: FUJ-MBE2147RC-BN-OE-DEP
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 146GB
Speed: 15,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Average Seek Time: 2.9 / 3.4
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
On-Board Cache: 16MB
Compatible Systems: Dell 10th Gen. 2950 / 6950

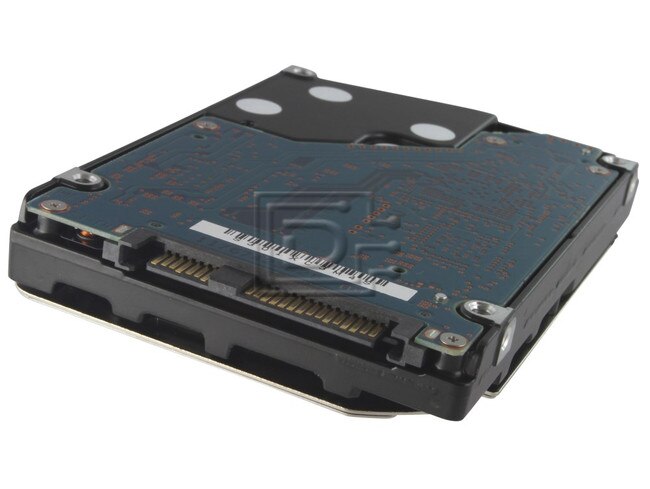

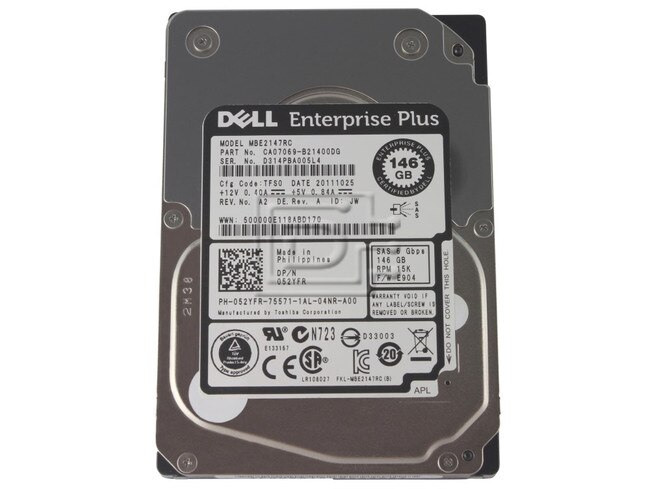

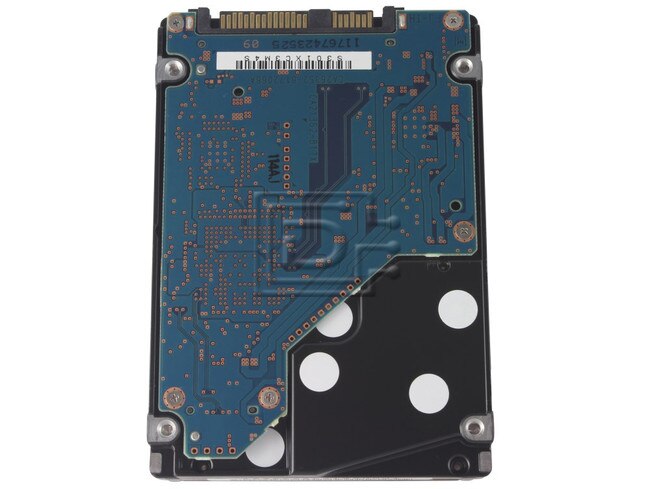

Fujitsu MBE2147RC Dell Enterprise Plus 147GB 15,000 RPM 6.0Gbps Small Form Factor SAS / Serial Attached SCSI Enterprise Plus Hard Disk Drive - Brand New OEM
Fujitsu p/n: CA07069-B20300DL / CA07069-B21400DG
Dell Enterprise Plus PNs : 52YFR / 052YFR
Alt. MPNs: 0NJYM3 / NJYM3
Utilizing the vast experience and innovative technology developed over 40 years, Fujitsu introduces a new enterprise class 2.5-inch SAS drive offering industry leading performance and environmental benefits.
The MBE2-RC series is the first enterprise hard disk drive from Fujitsu to be halogen free. The 15,000 RPM, 6Gb/sec., SAS-2 interface enterprise drive doubles its capacity from previous generation models through the adoption of perpendicular magnetic recording.
The higher capacity and performance meets a wide range of enterprise applications, from high end servers to disk storage arrays. In addition, the best-in-class low power values are ideal for servers and storage systems used in data centers, which require minimal energy usage and mounting space. The 6Gb/sec. SAS-2 interface and improved areal densities enable higher data rates.
As part of the Fujitsu Green Policy Innovation program, the new series provides the best-in-class power consumption at 4.1 watts idle, achieving up to 21% reduction from previous generation models, and up to 68% reduction from current 3.5" 15K RPM offerings.
Compatibility:
This drive is compatible with any server that accepts 2.5" x 15mm (SFF) SAS hard drives.
FUNCTIONAL SPECIFICATIONS
- Formatted storage capacity: 147.0GB
- Seek time (track to track): Read 0.2 / Write 0.4ms. typ.
- Seek time (average): 3.8 / 4.3ms. typ. (read/write)
- Seek time (full track): 7.0 / 8.0ms. typ. (read/write)
- Average latency time: 2.0ms.
- Rotational speed: 15,000RPM
- Interface: SAS II (6Gbps)
- Data Buffer Size: 16MB
PHYSICAL SPECIFICATIONS
- Power requirement Idle (ready): 4.1 W typ.
- Form Factor: 2.5-inch SFF
- Height: 15.0mm
- Width: 69.85mm
- Depth: 100.45mm
- Weight: 0.22kg
- Ambient temperature (operating): 5 to 55 degrees C
- Ambient temperature (non-operating): -40 to 70 degrees C
- Maximum DE surface temperature (operating): 60 max deg. C
- Gradient: 20 degrees C per hour
- Relative humidity (operating): 5 to 95% RH (non-condensing)
- Relative humidity (non-operating): 5 to 95% RH (non-condensing)
- Maximum wet bulb: 29 degrees C (non-condensing)
- Vibration (operating): 0.6mm (5 to 20 Hz)/ 1.0G (20 to 300 Hz)
- Vibration (non-operating): 3.1mm (5 to 20 Hz)/ 5.0G (20 to 300Hz)
- Shock (operating): 100G Max (1ms)
- Shock (non-operating): 400G Max (1ms)
- Altitude (operating): 3,048 metres
- Altitude (non-operating): 12,192 metres
Alternate MPNs: 52YFR 052YFR 0NJYM3 NJYM3 CA07069-B21400DG
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
