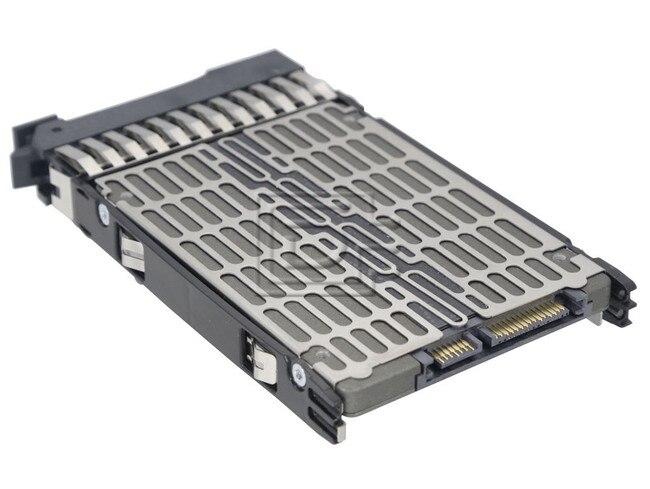

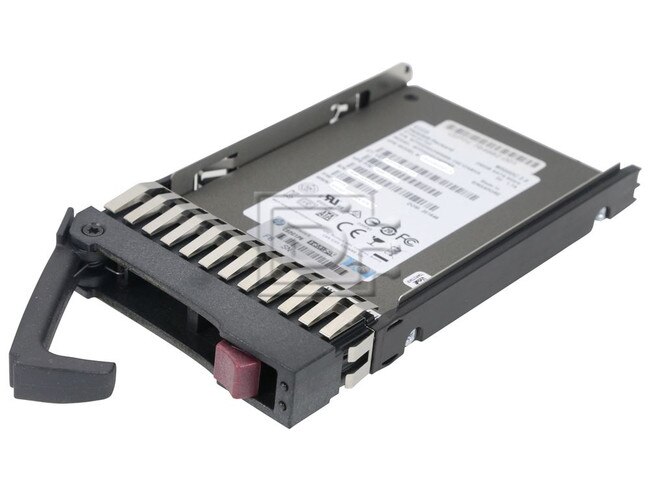

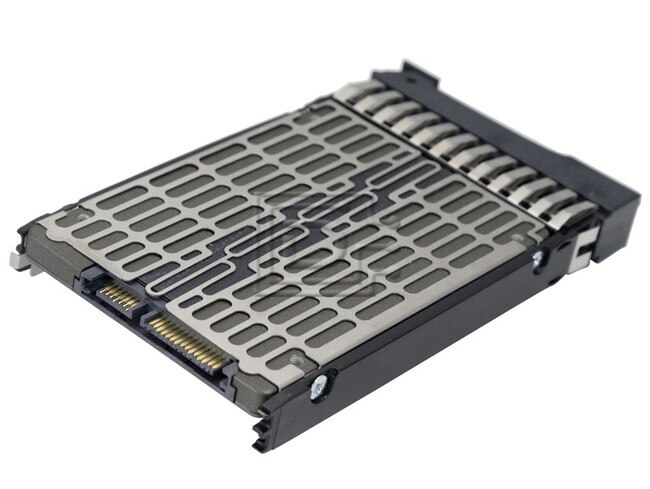

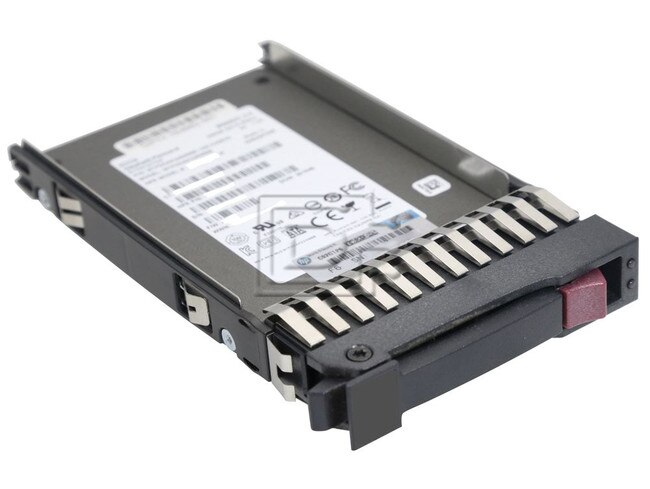

HPE 730059-B21 100GB eMLC SATA SSD Kit 378343-002 Gen7

HEWLETT PACKARD Part #/MPN: 730059-B21

DiscTech Item #: HPI-730059-B21-BN-OE

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Enterprise Grade

Capacity: 100GB

Speed: Solid State Memory

Interface Types: SATA

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Sustained Throughput: 480/185

Electrical Interface: SATA 600 - 6.0Gbps


SSD Endurance DWPD: Enterprise Write Intensive

Compatible Systems: HP 7th Gen. G7

HPE 730059-B21 / 730151-001 100GB 2.5-Inch SFF 6Gbps eMLC Mainstream Endurance SATA SSD Kit 378343-002 - Brand New

HPE 730059-B21 / 730151-001 100GB 2.5" SFF 6Gbps eMLC Mainstream Endurance SATA Solid State Drive Kit 378343-002 - Brand New

NOTE: This drive support G7 servers only

Alt Model Number: 730151-001

HP Enterprise Solid State Drives
Excellent solid state storage performance for HP ProLiant servers

It is estimated that 2.5 exabytes (a billion gigabytes) of data are created every day. To tap the potential of Big Data, applications must read and write more data, faster than ever. HP Enterprise Solid State Drives (SSDs) help you access data faster by providing exceptional performance, extended endurance, and consistently low latency—all while using less power.

And with current transitions in the Hard Disk Drive (HDD) industry, many customers are now experiencing the great performance of SSDs at competitive pricing, especially for capacities under 1 TB.

Peak Performance for random data applications
HP Enterprise SSDs are suited to enterprise environments with highly random data under a variety of write-workload applications. The SSDs provide significantly better random read and write I/O operations per second (IOPS) compared to 15K SAS HDDs. While sequential read and write throughput is also improved over 15K SAS HDDs, the greatest benefit is recognized in random data applications. As a result, these high-performance, low-latency, and low-power SSDs provide significant system benefits for applications that previously over-provisioned HDD capacity to achieve better performance.

Enterprise features for data center applications
HP Enterprise Solid State Drives have the key features you need in your data center—full data path error detection, surprise power loss protection, and SmartSSD Wear Gauge support. We enable the SmartSSD Wear Gauge through the HP Gen8 Smart Carrier. With the new SmartSSD Wear Gauge utility, HP Enterprise SSDs monitor the amount of data written and report when the device may be nearing its maximum supported lifetime.

Targeted at extreme operating environments or local storage, these drives provide higher I/O throughput, excellent latency, reduced power consumption, enhanced reliability, and faster reads and writes when compared to traditional rotating media. They remove the latency found in conventional rotating hard disk drives (HDDs) caused by seek time for each read operation, so they deliver high random read performance. Most of these SSDs are available as small form factor (SFF), large form factor (LFF), quick release carriers, or non-hot plug (NHP) for general use across the HP ProLiant Server portfolio. The drives are fully qualified and fit seamlessly into the existing HP server infrastructure.

With no moving parts, more reliability, and greater power savings than traditional rotating media drives, SSDs are finding new applications in the Big Data era.

Compatible with your server environment
HP SSDs are fully tested and qualified to enable compatibility with HP ProLiant and HP BladeSystem solutions. The HP Qualified Option designation places HP SSDs among the best of the best compared to products available on the open market. It is important to note that SSDs on the open market—even those with similar model numbers—may not have the same level of performance, endurance, and quality as HP Qualified Options. For example, the NAND or even the controller in non-qualified products may be different from an HP Qualified Option. HP firmware optimizes our qualified SSD performance, wear leveling, and over-provisioning.

The right SSD for every application
HPE SSDs are available in three broad categories based on their typical target workloads: Read Intensive, Mixed Use, and Write Intensive. The HPE SSDs categories include both SAS SSDs and also SATA SSDs

The categories indicate the number of drive writes per day (DWPD1 ) that you can expect from the drive. (DWPD is the maximum number of 4K host writes to the entire drive capacity of the SSD per day over a five-year period.)

Read Intensive SSDs are typically the lowest price, with a typical Endurance of <= 1 DWPD. Write Intensive SSDs typically have the highest Write performance, with a typical Endurance of >= 10 DWPD. Mixed Use SSDs are for workloads that need a balance of strong Read and Write performance, with Endurance typically >1 and <10 DWPD

HPE Write Intensive Solid State Drives
HPE Write Intensive 12G SAS and 6G SATA SSDs provide high write performance and endurance. They are best suited for mission-critical enterprise environments with workloads high in both reads and writes. Workloads best suited for these WI SSDs include online transaction processing (OLTP), virtual desktop infrastructure (VDI), business intelligence, and Big Data Analytics.

HPE Mixed Use Solid State Drives
HPE Mixed Use 12G SAS and 6G SATA SSDs are best suited for high I/O applications with workloads balanced between reads and writes. The SAS and SATA SSDs provide the workload-optimized performance required for demanding I/O-intensive applications. When paired with HPE ProLiant servers, these SSDs help you meet the challenges of Big Data. They achieve twice the performance and endurance of previous HPE SAS and SATA SSDs. The SATA SSDs come with a six gigabit per second (Gb/s) SATA hot-plug interface.

HPE Read Intensive Solid State Drives
HPE Read Intensive 12G SAS and 6G SATA SSDs deliver enterprise features for a low price in HPE ProLiant server systems. This entry-level pricing is fueling rapid SSD adoption for read-intensive workloads because the cost per IOPS compares very favorably to HDDs. Read Intensive SSDs deliver great performance for workloads high in reads such as boot/swap, Web servers, and read caching, just to name a few.

HPE Read Intensive M.2 Solid State Enablement Kits
The HPE M.2 Solid State Enablement Kit is the newest addition to our Read Intensive solid state drive family and is best suited for boot/swap. The M.2 Solid State Enablement Kit is available in dual and single 64 GB and 120 GB capacities. The kits are compatible to ProLiant Gen9 Blades and currently support a 6 Gb SATA interface. Also, the dual and single 120 GB and 340 GB capacities are available in the M.2 Enablement Kit and currently supports ProLiant ML/DL servers.

SAS or SATA interface available
Hewlett Packard Enterprise has a full portfolio of 12 Gb/s SAS SSDs. The SAS SSDs transfer data at full duplex (bidirectional) allowing greater I/O bandwidth to alleviate bottlenecks. Additionally SAS uses SCSI commands for error recovery and error reporting, which have more functionality than the ATA command set used by Serial ATA (SATA). Hewlett Packard Enterprise has a 12 Gb/s SAS Expander to scale storage capacity for multi-workload needs. SATA SSDs are great in half-duplex (unidirectional) direct connect scenarios when lower price is a priority

Boost performance with HPE NVMe PCIe 2.5” SSDs
HPE NVMe PCIe 2.5” SSDs talk directly to your applications via the PCIe bus, boosting I/O bandwidth and reducing latency to scale performance in line with your processing requirements. This means, for example, that you can host your entire database on one or more HPE NVMe PCIe 2.5” SSDs for enhanced in-memory access and performance. NVMe, or Non-Volatile Memory Express, is a from-the-ground-up industry specification that focuses on efficiency, scalability, and performance. With the introduction of NVMe, an industry interface specification for accessing solid-state storage through PCI Express, manufacturers have a set of guidelines that seeks to release them from the limitations of previous standards, and also provides a wide range of interoperability benefits.

Key features and benefits

Higher performance and better latency
HPE SSDs enable rapid reads and writes of transactional data. On an HDD, random reads require constant repositioning of the read/write head to seek the exact location of data on the platter before the data transfer can begin. However, SSDs have no moving parts or rotating platters that can cause latency problems, and that results in faster access to data. Therefore, with faster seek times, the drives achieve high IOPS, producing quicker data access and better latency.

The drives also pack the operating performance of several rotating HDDs into the same space as a single HDD, so you can get more performance out of your existing data center.

Lower power consumption
Steadily increasing storage requirements pose power and performance challenges to data centers. Solid state devices have a significantly better performance-to-power rating than traditional rotating HDDs. The lack of a motor greatly reduces an SSD’s power consumption, so the drives draw less energy—less than two watts idle and less than nine watts maximum— for SSDs.

Environmental ruggedness
The inherent environmental ruggedness of SSDs makes them well suited for extreme environments where traditional drives cannot operate. The drives can tolerate significantly higher operating shock and vibration levels compared to traditional rotating HDDs. In fact, they virtually eliminate rotational vibration problems.

High reliability
Reliability is important for any storage medium, and it is essential when considering a storage device that can be used in servers. HP Enterprise SSDs pass a rigorous HP ProLiant qualification of 2.4 million test hours.

Investment protection
HP Enterprise SSDs are a drop-in replacement for existing HDDs. They fit into existing HDD hot-plug bays and require no modification to operating system or infrastructure tools. The drives are recognized as standard SAS or SATA devices with no special changes in firmware or hardware. Although you cannot mix SSDs and HDDs in the same logical array, you can mix them within the system to provide a more effective use of both technologies.

Enable your success with HPE support services

Simplify implementation and support of your server solution.
To streamline installation and enhance ongoing support, Hewlett Packard Enterprise recommends the following service offerings:

  • HPE Installation and Startup Service—HPE Services offers complete installation and implementation support—including global rollout capabilities—to get your HPE server-based solution up and running rapidly, with reduced business disruption. You can choose from all server options and storage for inclusion in the server: Microsoft®, Linux®, Solaris, and VMware® operating software, plus HPE Insight Control software management solutions.
  • Hardware support—You can cover all the options installed in your server with a single convenient service package. HPE Care Pack Services for HPE ProLiant servers and storage systems provide support for all HPE-branded hardware options qualified for inclusion in your server at the time of purchase or afterward. Any additional HPE-Qualified Options installed within the server are covered at the same service level and for the same period as the server

Learn more at


Compatible with the following HP Proliant and Compaq systems (this list is not all inclusive):

Proliant BL45p G2Proliant BL25p G2Proliant BL20p G4Proliant BL460cProliant BL460c G5Proliant BL460c G6Proliant BL460c G7Proliant BL465cProliant BL465c G5Proliant BL465c G6
Proliant BL465c G7Proliant BL465c G7 (518851-B21)Proliant BL465c G7 (518854-B21)Proliant BL465c G7 (518859-B21)Proliant BL465c G7 (518867-B21)Proliant BL480cProliant BL620c G7Proliant BL680c G5/td>Proliant BL680c G7Proliant BL685c
Proliant BL685c G5Proliant BL685C G6Proliant BL685c G7Proliant BL685c G7 (518870-B21)Proliant BL685c G7 (518873-B21)Proliant DL1000Proliant DL1000 Multi Node SeriesProliant DL160 G6Proliant DL160 G6 (625544-B21)Proliant DL160se G6
Proliant DL165 G7Proliant DL170h G6Proliant DL180 G6Proliant DL2x170h G6Proliant DL320 G6Proliant DL360 G4Proliant DL360 G4pProliant DL360 G5Proliant DL360 G6Proliant DL360 G7
Proliant DL365Proliant DL365 G5Proliant DL370 G6Proliant DL380 G4Proliant DL380 G5Proliant DL380 G6Proliant DL380 G7Proliant DL385Proliant DL385 G2Proliant DL385 G5
Proliant DL385 G5pProliant DL385 G6Proliant DL385 G7Proliant DL580 G3Proliant DL580 G4Proliant DL580 G5Proliant DL580 G7Proliant DL585 G2Proliant DL585 G5Proliant DL585 G6
ProLiant DL585 G7Proliant DL785 G5Proliant DL785 G6Proliant DL980 G7Proliant ML110 G7Proliant ML330 G6Proliant ML350 G5Proliant ML350 G5 (Dual Core)Proliant ML350 G6Proliant ML370 G4
ProLiant ML370 G5ProLiant ML370 G6Proliant ML570Proliant ML570 G3Proliant ML570 G4StorageWorks P2000Proliant SL390s G7Proliant SL390s G7 (625540-B21)Proliant SL390s G7 (625541-B21)Proliant SL390s G7 (625542-B21)
Proliant SL390s G7 (625543-B21)Proliant SL390s G7 (625545-B21)Proliant SL390s G7 (625549-B21)Proliant SL390s G7 (625550-B21)Proliant SL390s G7 (626446-B21)Proliant SL390s G7 (626447-B21)Proliant SL390s G7 (626448-B21)Proliant SL390s G7 (626449-B21)Proliant WS460c G6 Workstation BladeStorageWorks X1600
StorageWorks X1600 G2StorageWorks X1800StorageWorks X1800 G2StorageWorks D2600 Disk EnclosureStorageWorks D2700 Disk EnclosureStorageWorks MSA 2000fc G2StorageWorks MSA 2000i G2StorageWorks MSA 2000sa G2StorageWorks MSA 2040StorageWorks SB40c
StorageWorks SB600cStorageWorks X1000StorageWorks X1400StorageWorks X3000StorageWorks X3400StorageWorks X3410StorageWorks X3800StorageWorks X3820

Not compatible with G8 systems or beyond.

HPE Solid State Drives
Standard Model Numbers730059-B21
Alt Model Number730151-001
Technical Specifications
Length x WidthStandard SFF
Transfer Rate Synchronous6Gbps
Compatible SystemsG7 / Gen7 / Gen 7 / Generation7
Rotational SpeedN/A
NANDMulti-Level Cell (MLC)
Access Latency
Random Reads63,000 IOP/s
Random Writes19,200 IOP/s
Sequential Reads480 MiB/s
Sequential Writes185 MiB/s
Lifetime Writes1.8PB / 1800GB
Drive Writes Per Day10
EnduranceME Enterprise Mainstream
Physical Configuration
Logical Blocks512 bytes
Operating Temperature0-60°C

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 730151-001

Weight: 1 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
