Hitachi 08K2242 SCSI Hard Drive

Hitachi Part #/MPN: 08K2242

DiscTech Item #: HIT-08K2242-BN-OE

$135.00
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • Warranty:1 Year DiscTech
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

Back
$135.00

Enterprise Grade

Capacity: 73GB

Speed: 10,000RPM

Interface Types: SCSI 80pin SCA-2 Hot-Swap

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 33.8 - 66.7

Average Seek Time: 4.7ms

Electrical Interface: SCSI LVD U320 - 320MBps 16-bit

On-Board Cache: 8MB

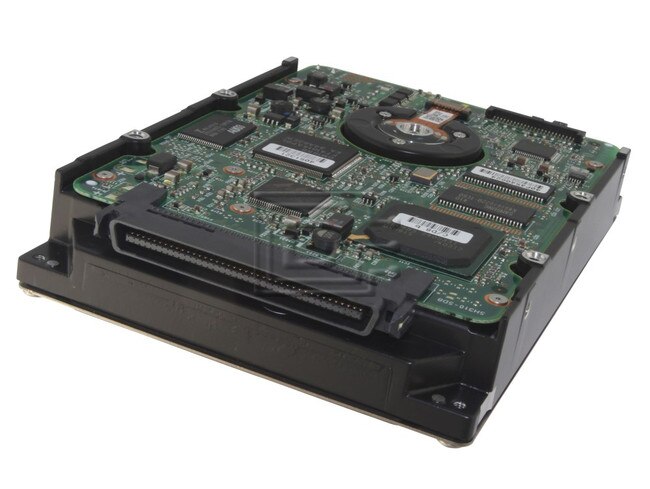

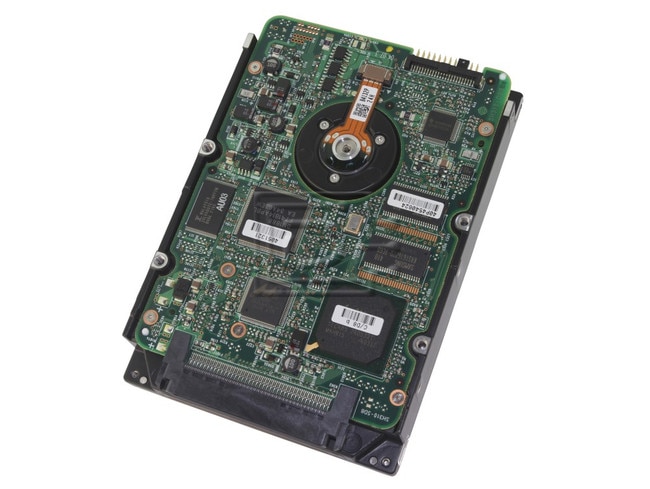

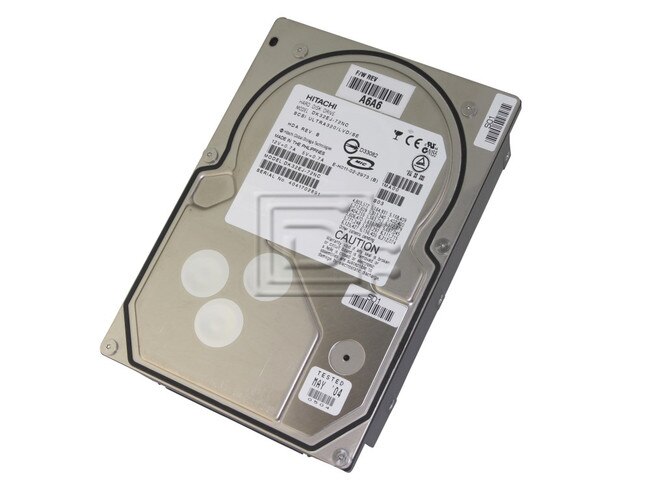

Hitachi Ultrastar DK32EJ 08K2242 / DK32EJ-72NC 73GB 10K U320 3.5" 80pin SCSI Hard Drive - Brand New

The DK32EJ series uses high performance sputtered disks, GMR heads, and a rotary type voice coil motor to drive the heads. These features provide high capacity, high speed positioning and high reliability. The DK32EJ-FC uses a SCSI interface as the upper level layer though the physical host interface is changed to Fibre Channel. Therefore, the host can access the FC disk drive with almost same manner as the SCSI disk drive. Some functions dependent on physical interface is different from that of SCSI disk drives.


Model: DK32EJ-72NC
Part Number: 08K2242

Compatibility:

This drive is comaptible with any of our hotswap drive trays / caddies.

Configuration Storage capacity 73.9GB

Bytes/sector 512, 516, 520, 524, 528,1024 Bytes

Number of disks 3

Number of heads 5

Areal density 30.0 Gb/inch2

Recording method MEEPRML

Performance Seek time
average 4.9 / 5.4 msread / write full stroke 10 / 11 ms
1 track 0.5 / 0.7 ms

Average latency 2.99 ms

Rotational speed 10025 rpm

Data transfer rate 458 - 799Mb/s

Start time 25 s

SCA-2 Fibre Channel 200 max. MB/s

Buffer size 4M Bytes

Physical:
Dimensions 146.0x101.6x25.4 mm
Weight 0.73 kg

Power dissipation:
+12V Idle / +5V Idle, (Average)  11.9 W

Energy consumption rate: 0.16

Click here to view the manufacturer's item description/brochure

Alternate MPNs: DK32EJ-72NC

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
