Hitachi 08K2411 Fibre / Fiber Channel Hard Drive

Hitachi Part #/MPN: 08K2411

DiscTech Item #: HIT-08K2411-BN-OE

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Select Warranty Option:

    Please select options before adding to cart

    Enterprise Grade

    Capacity: 36GB

    Speed: 15,000RPM

    Interface Types: Fibre Channel - Internal - Arbitrated Loop ASA II

    Form Factor: 3.5inx1.0in LFF Hard Drive

    Sector Size: 512 / 512e

    Sustained Throughput: 79

    Average Seek Time: 3.9 / 4.2

    Electrical Interface: FC-AL - 2Gbps

    On-Board Cache: 8MB

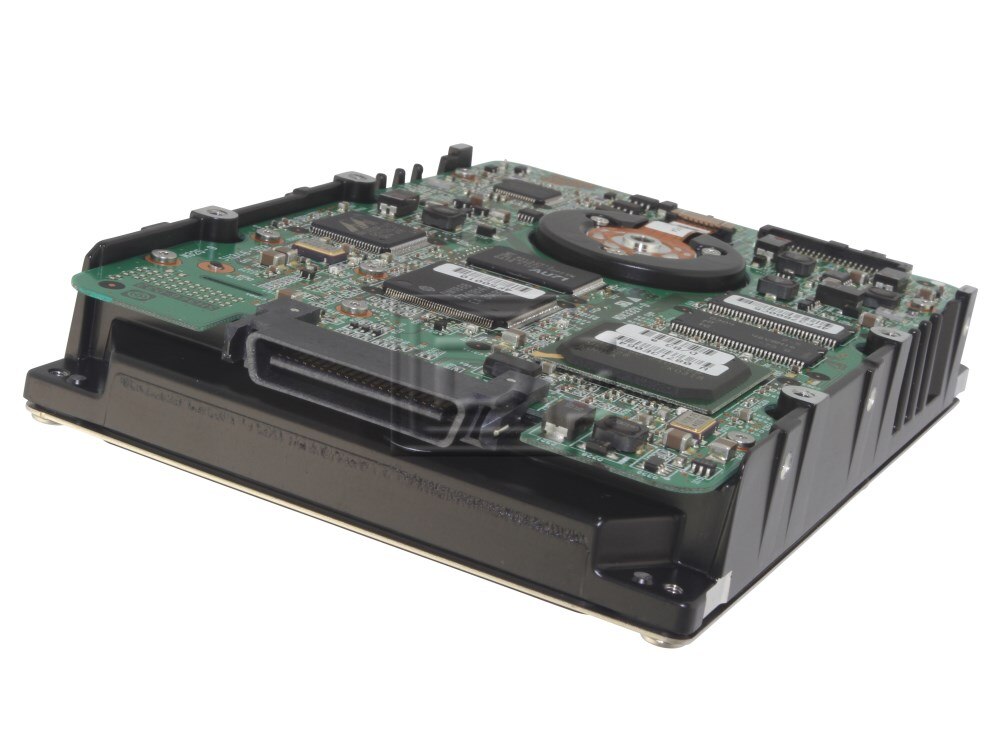

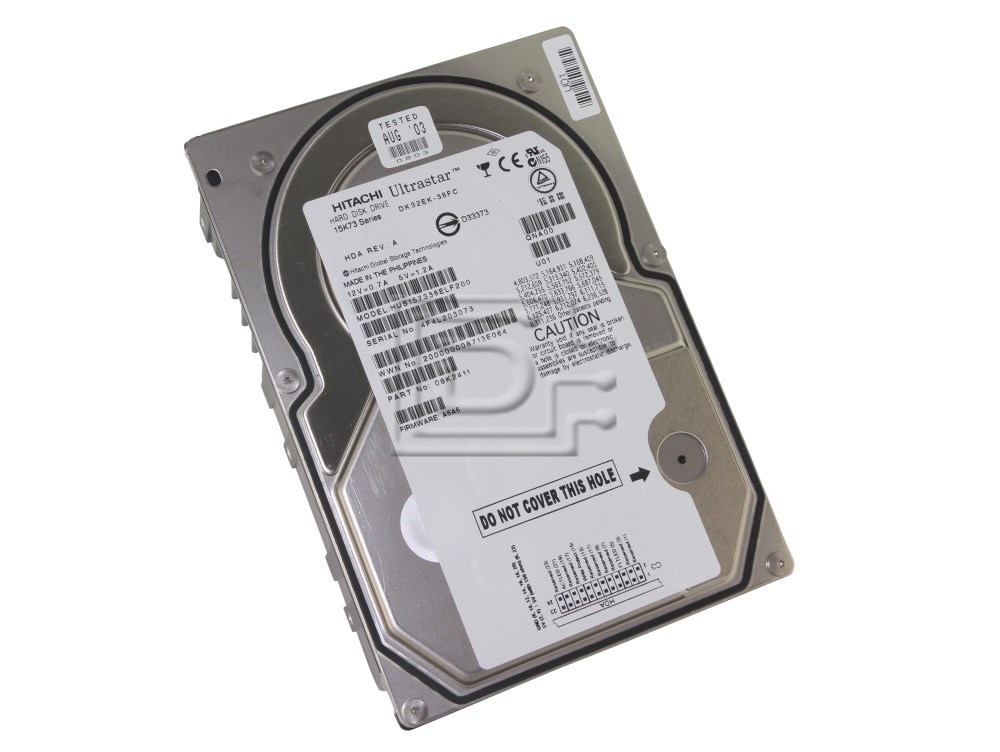

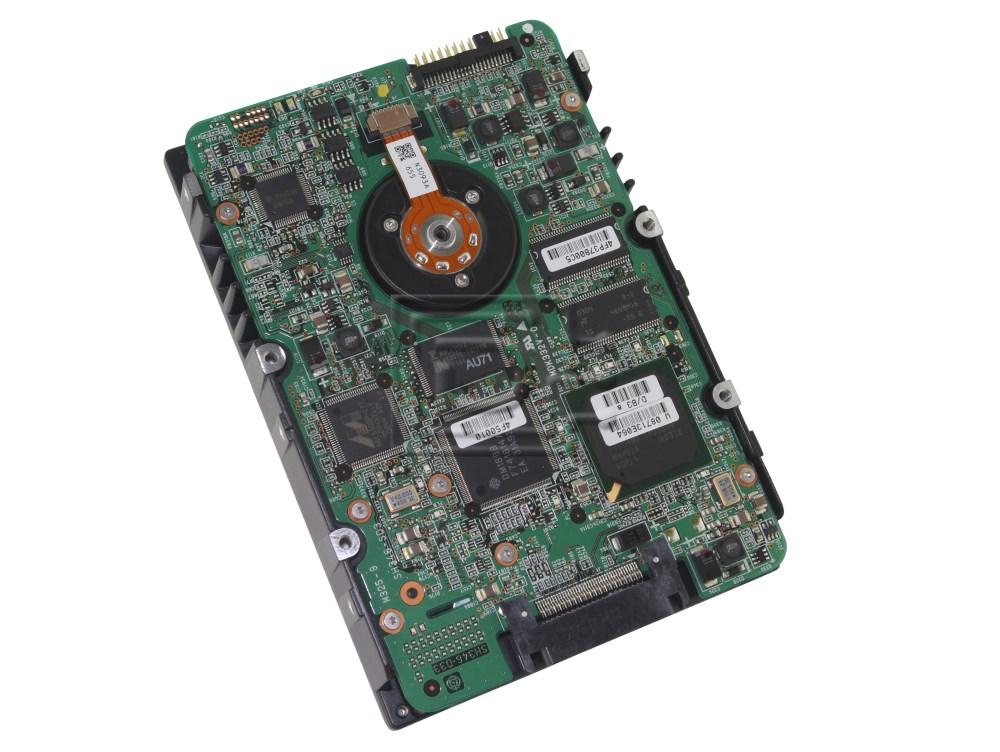

    Hitachi 15K73 08K2411 / HUS157336ELF200 36GB 15K 2Gbps 40pin Fibre / Fiber Channel Hard Drive - Brand New

    Advanced drive technology The Hitachi Ultrastar 15K73 is the 3rd generation of 15,000 RPM enterpriseclass hard drives from Hitachi. Leveraging award-winning technologies that have generated proven quality and high-performance, the Ultrastar 15K73 incorporates Fluid Dynamic Bearing motors (FDB) to contribute to increased capacity by enabling high-track density through a more precise position of the head. AFC Media, also known as "pixie dust", is an industry-first in 15,000 RPM enterpriseclass hard drives, enabling higher areal densities by improving thermal stability, which in turn, maintains data integrity.

    Designed for both high-performance and high-reliablity, the Ultrastar 15K73 was developed with powerful processors and read-write channels, advanced servo coupled technology, (AFC), also known controls to improve seek and settle times, and overall improved mechanical stability to excel in today's demanding data-processing environments.

    Model : HUS157336ELF200 / Kikimanjaro


    Model number 08K2411 / HUS157336ELF200
    Model Name 15K73
    Formatted Capacity 36 Gbytes
    Rotational Speed 15,000 rpm
    Default Buffer (cache) Size 8 Mbytes
    Number of Discs (physical) 3
    Number of Heads (physical) 5
    External (I/O) Transfer Rate (max) 200 MBytes/sec
    Sustained Transfer Rate79 MBytes/sec
    Average Seek Time, Read 3.9 msec typical
    Average Seek Time, Write 4.2 msec typical
    Track-to-Track Seek, Read 0.4 msec typical
    Track-to-Track Seek, Write 0.5 msec typical
    Average Latency 2 msec
    Form Factor(width) 3.5-inch
    Form Factor(height) 1-inch
    Height 25.4 mm
    Width 101.6 mm
    Length 146.05 mm
    Weight 0.75 kg
    Power (Typical)12 watts
    Max Operating Shock (2-msec) 15 Gs
    Max Nonoperating Shock (2-msec) 250 Gs
    Operating Temperature (max) 55 deg C
    Operating Temperature (min) 5 deg C
    Nonoperating Temperature (max) 70 deg C
    Nonoperating Temperature (min) -40 deg C
    Nonrecoverable Read Errors 1 per 10^14 bits read
