Hitachi 0B22136 SCSI Hard Drive

Hitachi Part #/MPN: 0B22136

DiscTech Item #: HIT-0B22136-BN-OE

$139.00
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • Warranty:1 Year DiscTech
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

Back
$139.00

Enterprise Grade

Capacity: 73GB

Speed: 15,000RPM

Interface Types: SCSI 80pin SCA-2 Hot-Swap

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: Up to 123

Average Seek Time: 3.4 / 3.6

Electrical Interface: SCSI LVD U320 - 320MBps 16-bit

On-Board Cache: 16MB

Compatible Systems: Dell 9th Gen. 2850 / 1850

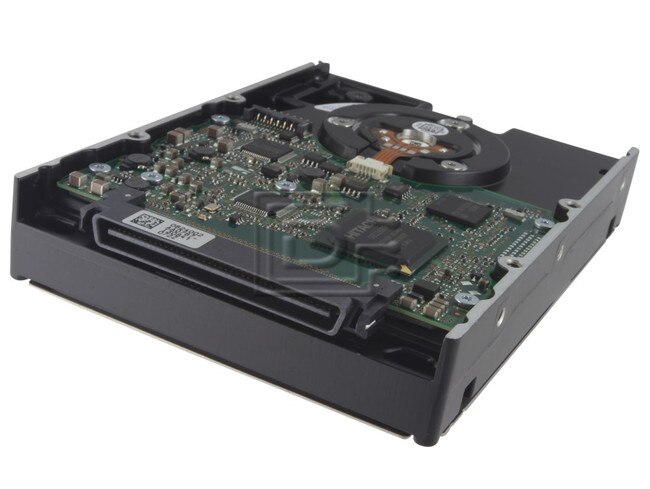

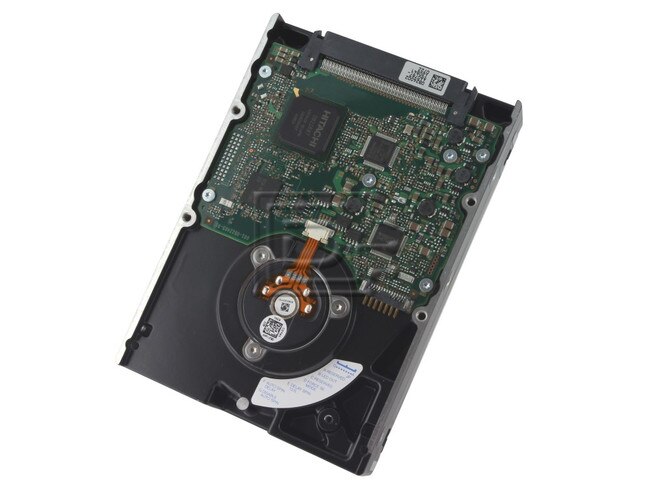

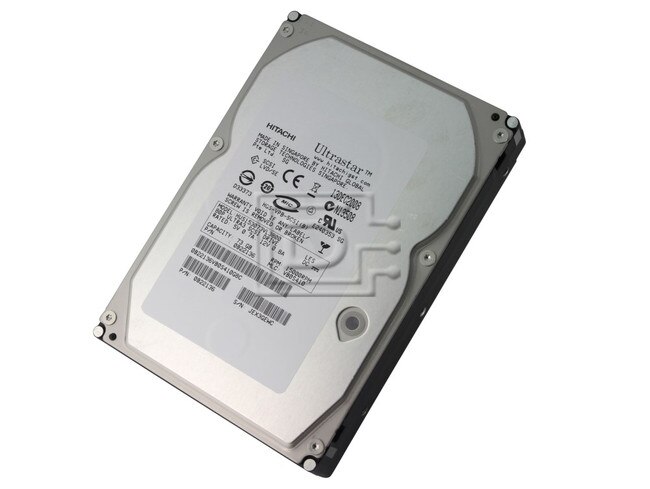

Hitachi Ultrastar 73GB 15K RPM U320 80pin SCA-2 SCSI Hard Drive 0B22136 / HUS153073VL3800 - Brand New

Built upon proven technology

Hitachi’s next-generation 3.5-inch 15,000 RPM hard drive delivers the performance and reliability required for mission-critical enterprise computing environments. Leveraging the proven system architecture and electronics of the previous generation, the Ultrastar™ 15K300 provides up to 300 GB capacity, 16 MB cache and Ultra320 SCSI, 3 Gb/s Serial Attached SCSI (SAS) and 4 Gb/s Fibre Channel interfaces. These features make the Ultrastar 15K300 the ideal solution for demanding enterprise computing environments like online transaction processing, intensive data analysis and other multi-user applications. The mature design of the Ultrastar 15K300 helps to ensure shorter qualification times.

Demonstrated reliability

Key reliablility features have been built into the Ultrastar 15K300. Rotational Vibration Safeguard (RVS) technology ensures drive performance in multi-drive systems where rotational vibration is likely to occur. Hitachi’s Thermal Fly-height Control (TFC) capability maintains a consistent fly-height during the read/write process ensuring a better soft error rate and end-to-end data protection enhances error detection for optimal data integrity. Finally, Hitachi offers the only enterprise-class hard drive utilizing a head load/unload ramp to help minimize drive failures as a result of handling during integration.

Compatibility:

All SCSI compatible servers including:
Dell PowerEdge 700, 800, 1600, 1600SC, 1800, 1850, 2600, 2650, 2800, 2850, 3250, 6600, 6650, 6800, 6850, 7150,  and PowerVault 220S, 221S, 220F, 650F, 660F SCSI Arrays.

Drive specification

0B22136 / HUS153073VL3800

Formatted Gbytes (512 bytes/sector)

73

Bytes per sector

512

Read/write heads

2

Data Disks

1

Areal density (Gbits/inch2 avg)

113

Spindle speed (RPM)

15,000

I/O data transfer rate (Mbytes/sec max)

320

Cache buffer

16 Mbytes

Height (max)

26.11 mm (1.028 inches)

Width (max)

101.85 mm (4.010 inches)

Length (max)

146.99 mm (5.787 inches)

Weight (max) grams

745

Average seek, read (msec typical)

3.4

Click here to view the manufacturer's item description/brochure

Alternate MPNs: HUS153073VL3800

Weight: 1.8 lb

Warranty: 1 Year DiscTech
