Hitachi Part #/MPN: 0A50550
DiscTech Item #: HIT-0A50550-RF-OE
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:1Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Capacity: 160GB
Speed: 5,400RPM
Interface Types: SATA
Form Factor: 2.5inx9mm Fits Most laptops
Sector Size: 512 / 512e
Average Seek Time: 12
Electrical Interface: SATA 150 - 1.50Gbps
On-Board Cache: 8MB

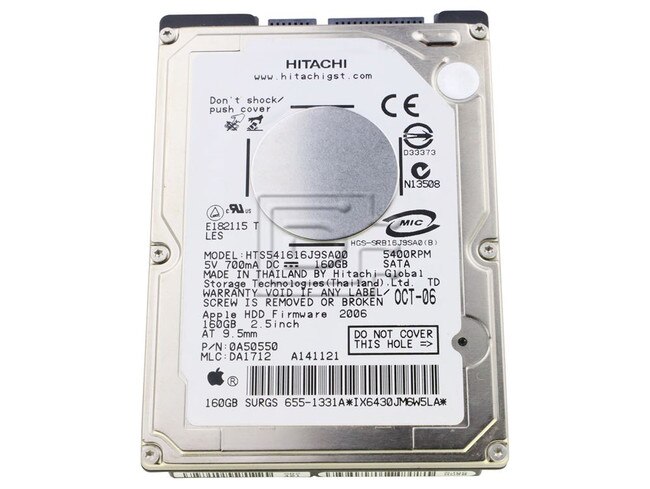

Hitachi TravelStar 5K160 0A50550 160GB 5.4K 2.5" SATA Laptop Hard Drive - Refurbished OEM
New technology exceeds expectations
Travelstar™ 5K160, Hitachi’s first hard drive to use perpendicular magnetic recording (PMR), delivers superior technology and reliability. With capacities up to 160 GB, industry-leading performance, low-power consumption and excellent shock resistance, Travelstar 5K160 has the key attributes to support the stringent demands of portable computing. Improved electronics design further reduces the power consumption of this 5400 RPM drive, which beats its industry-leading predecessor by 10%; the 5K160 also runs cooler than the competition. Hitachi has also implemented Thermal Fly-height Control (TFC) for improved error rates, and iridium-manganese-chromium (IrMnCr) read heads for improved reliability. Hitachi has done extensive testing to verify Travelstar 5K160‘s best-in-class standing, making it the “Super-pendicular Drive.”
Reliability leadership
With the transition to new PMR technology, Travelstar 5K160 demonstrates reliability that parallels or exceeds 50-year old conventional longitudinal technology. Hitachi has integrated second-generation PMR head and media technology, along with a new read channel and IrMnCr read heads. This successful transition required new materials, complex processes, tools and testing. Hitachi leveraged the depth and breadth of its internal resources to deliver the most reliable PMR mobile product in the industry.
Compatibility:
This drive is compatible with any computrer that accepts 2.5" SATA hard drives.
| Specifications | |
|---|---|
| Model number | 0A50550 |
| Model Name | Travelstar 5K160 |
| Formatted Capacity | 160 Gbytes |
| Rotational Speed | 5,400 rpm |
| Default Buffer (cache) Size | 8 Mbytes |
| Performance | |
| External (I/O) Transfer Rate (max) | 1.5 Gbps |
| Average Seek Time | 12.0 msec typical |
| Physical | |
| Height | 9.39 mm |
| Width | 100.7 mm |
| Length | 69.85 mm |
| Weight | 99 g |
| Electrical | |
| Power (Typical) | 2.1 watts |
| Power (Idle) | .60 watts |
| Startup Current (3.3 VDC) | .9 amps |
| Environmental | |
| Max Operating Shock (2-msec) | 325 Gs |
| Max Nonoperating Shock (2-msec) | 1000 Gs |
| Operating Vibration (max) | 1.0 Gs |
| Operating Temperature (max) | 55 deg C |
| Operating Temperature (min) | 5 deg C |
| Nonoperating Temperature (max) | 70 deg C |
| Nonoperating Temperature (min) | -40 deg C |
| Acoustical | |
| Acoustics, Idle (sound power, typ) | 2.4 Bels |
| Reliability | |
| Nonrecoverable Read Errors | 1 per 10^14 bits read |
| Supports S.M.A.R.T. | Yes |
ROHS Compliant
Alternate MPNs: HTS541616J9SA00
Weight: 0.5 lb
Warranty: 1 Year DiscTech
