Hitachi Travelstar 5K160 0A55028 SATA Hard Drive
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 80GB |
| Speed: | 5.4K RPM |
| Interface Types: | SATA |
| Form Factor: | 2.5" x 9mm Fits Most laptops |
| Electrical Interface: | SATA 150 - 1.5Gbps |
| RAM: | 8MB |
Description

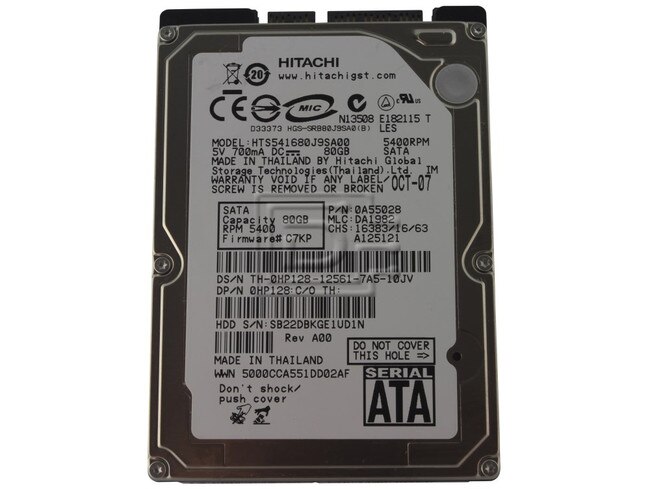

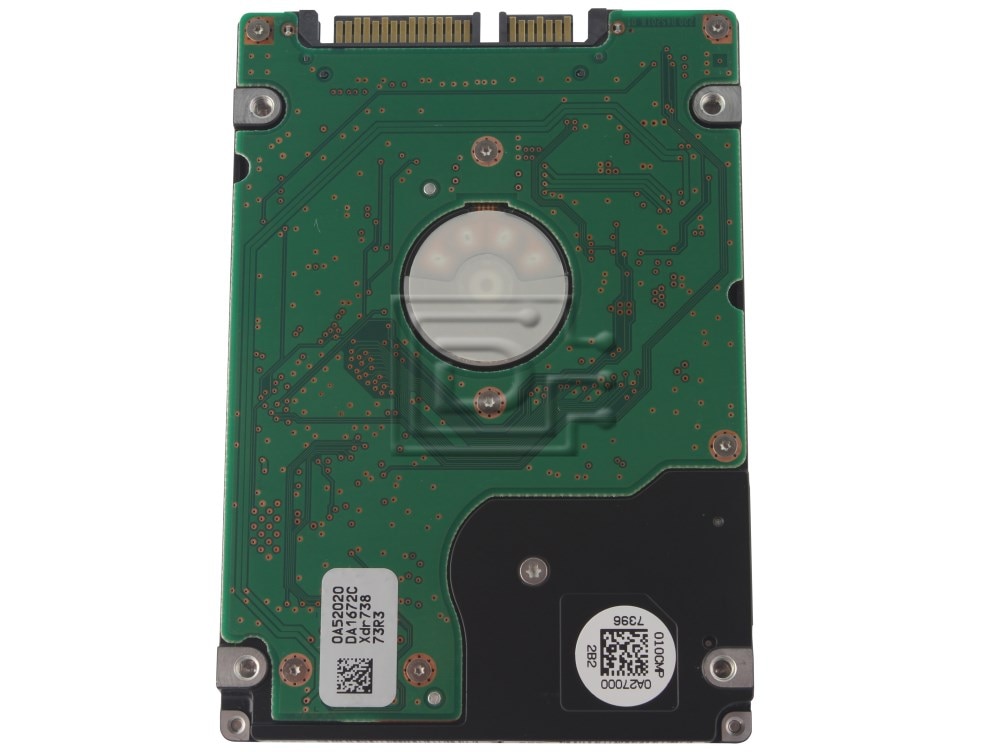

Hitachi Travelstar 5K160 0A55028 / HTS541680J9SA00 80GB 5.4K 2.5" SATA Hard Drive - New Pull OEM
New technology exceeds expectations
Travelstar™ 5K160, Hitachi’s first hard drive to use perpendicular magnetic recording (PMR), delivers superior technology and reliability. With capacities up to 160 GB, industry-leading performance, low-power consumption and excellent shock resistance, Travelstar 5K160 has the key attributes to support the stringent demands of portable computing. Improved electronics design further reduces the power consumption of this 5400 RPM drive, which beats its industry-leading predecessor by 10%; the 5K160 also runs cooler than the competition. Hitachi has also implemented Thermal Fly-height Control (TFC) for improved error rates, and iridium-manganese-chromium (IrMnCr) read heads for improved reliability. Hitachi has done extensive testing to verify Travelstar 5K160‘s best-in-class standing, making it the “Super-pendicular Drive.”
Reliability leadership
With the transition to new PMR technology, Travelstar 5K160 demonstrates reliability that parallels or exceeds 50-year old conventional longitudinal technology. Hitachi has integrated second-generation PMR head and media technology, along with a new read channel and IrMnCr read heads. This successful transition required new materials, complex processes, tools and testing. Hitachi leveraged the depth and breadth of its internal resources to deliver the most reliable PMR mobile product in the industry.
Hitachi p/n: HTS541680J9SA00
Compatibility:
Fully compatible with new Dell, IBM, HP & Compaq laptops that use 2.5" SATA drives. e.g. Dell D600, D610, D620, D640, D800, D810, D820, D840; HP nc6220, nc6320, nx6325, nc6400, nx7300, nx7400, nc8430, nw8440, nw9440, nx9420 nc2400 and nc4400.
Specifications
| Specifications | |
|---|---|
| Model number | 0A55028 / HTS541680J9SA00 |
| Model Name | Travelstar |
| Formatted Capacity | 80 Gbytes |
| Rotational Speed | 7,200 rpm |
| Default Buffer (cache) Size | 8 Mbytes |
| Performance | |
| External (I/O) Transfer Rate (max) | 150 MBytes/sec |
| Average Seek Time, Read | 11 msec typical |
| Track-to-Track Seek, Read | 1 msec typical |
| Average Latency | 4.2 msec |
| Physical | |
| Form Factor(width) | 2.5-inch |
| Height | 9.5 mm |
| Width | 70 mm |
| Length | 100 mm |
| Weight | 95 g |
| Electrical | |
| Power (Typical) | 1.8 watts |
| Power (Idle) | .80 watts |
| Startup | 5.0 watts |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: HTS541680J9SA00
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Condition
New Pull
Warranty
1 Year DiscTech Warranty
