Hitachi Part #/MPN: 0B24496
DiscTech Item #: HIT-0B24496-RF-OE-DEL
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Enterprise Grade
Capacity: 600GB
Speed: 15,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 119 - 198
Average Seek Time: 3.4
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
On-Board Cache: 64MB
Compatible Systems: Dell 10th Gen. 2950 / 6950

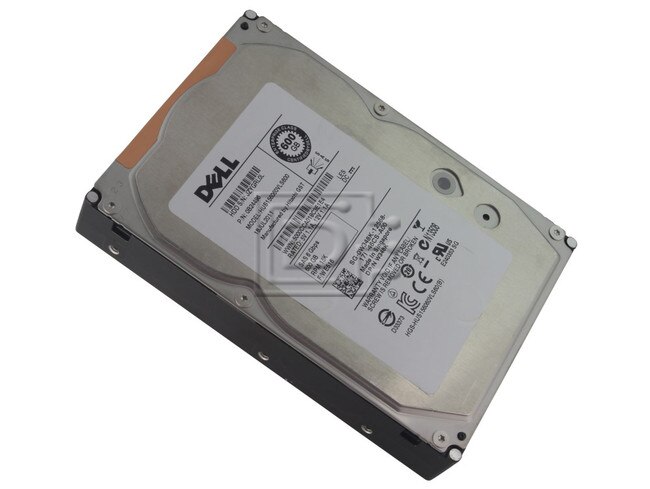

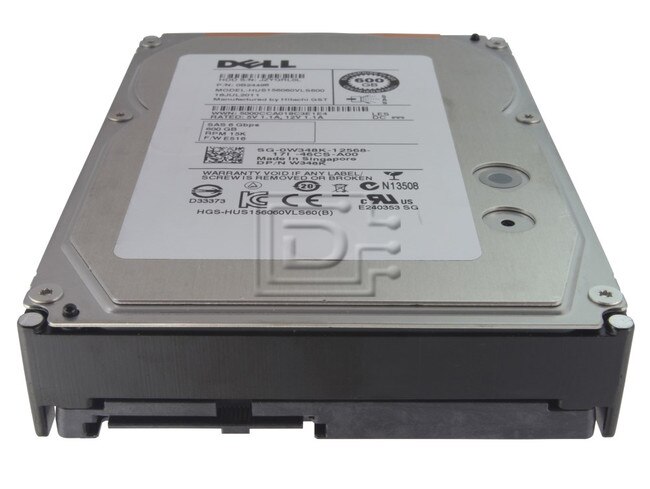

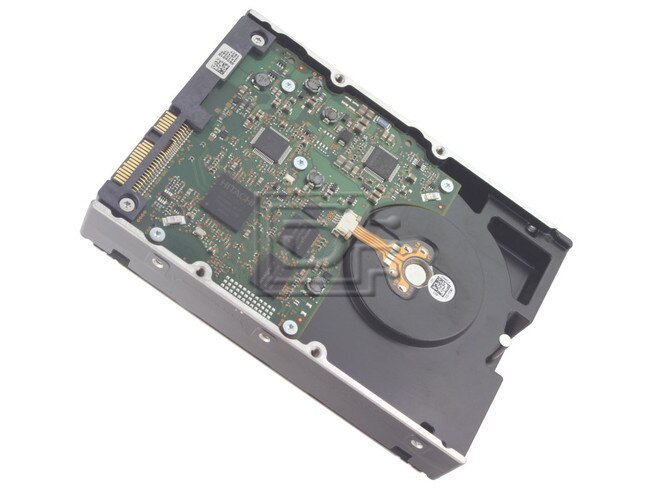

Hitachi Ultrastar 15K600 0B24496 / 0W348K / W348K HUS156060VLS600 600GB 15K 6Gbps 64MB Cache Serial Attached SCSI Hard Drive - Refurbished OEM
The Ultrastar 15K600 combines ultimate performance with high capacity in a single drive, storing up to 600GB of data while spinning at 15,000 RPM. The 64MB cache buffer is the largest in the industry in its class. The 6Gb/s Serial Attached SCSI (SAS) and 4Gb/s Fibre Channel Arbitrated Loop (FCAL) interfaces support the reliability required in the most demanding enterprise computing environments like on-line transaction processing, intensive data analysis, multi-user applications and data warehousing.
Highlights
• 600GB capacity will store most everything
• Spinning at 15,000 RPM for mission-critical performance
• FCAL & SAS interfaces for reliable data throughput
• Advanced Power Management optimizes power consumption
• 64MB cache buffer – largest in the industry
• Self-encrypting models conform to TCG’s Enterprise specification
Applications / Environments
• Business & online transaction processing
• Internet, file sharing and email
• Decision support & RAID
• NAS, SAN and enterprise-class servers
• High performance computing and other applications requiring 24x7
availability
ALT PN: HUS156060VLS600
DPN: 0W348K / W348K
Compatibility:
This drive is compatible with all SAS compatible servers including:
Dell PowerEdge 840, 1900, 1950, 1950 III, 2900, 2900 III, 2950, 2950 III, 2970, 6900, 6950, R300, R900, R905, T300, T605 Servers and PowerVault MD1000, MD3000, NF100, NF500, NF600 Storage Arrays.
HP / Compaq Proliant DL140 G2 , DL140 G3 , DL145 G2 , DL145 G3 , DL160 G5 , DL160 G5p , DL165 G5 , DL180 G5 , DL185 G5, DL320 G3 , DL320 G4 , DL320 G5 , DL320 G5p , DL360 G4p , DL380 G5 , ML110 G3 , ML150 G3 , ML150 G5 , ML310 G2 , ML310 G3 , ML310 G4 , ML310 G5 , ML350 G4p , ML350 G5.
Specifications | |
---|---|
Part Number | 0B24496 |
Model Number | HUS156060VLS600 |
Model Name | Ultrastar 15K600 |
Configuration | |
Interface | SAS 6Gb/s |
Capacity (GB) | 600 |
Data heads (physical) | 8 / 6 / 4 |
Data Disks | 4 / 3 / 2 |
Performance | |
Data buffer (MB) | 64 |
Rotational speed (RPM) | 15,000 |
Interface transfer rate (MB/s, max) | 600 |
Sustained transfer rate (MB/s, typical) | 198 to 119 |
Seek time (read/write, ms, typical) | 3.4 |
Reliability | |
Error Rate (non-recoverable, bits read) | 1 in 10^16 |
MTBF (M hours) | 1.6 |
Availability (hrs/day x days/wk) | 24x7 |
Acoustics | |
Idle (Bels) | 3.7 |
Power | |
Requirement | +5 VDC (+/5%) +12 VDC (+/5%) |
Operating (W, typical) | 16.6 |
Unload idle (W) | 10.7 |
Physical size | |
Z-height (mm) | 25.8 |
Dimensions (width x depth, mm) | 101.6 x 146.2 |
Weight (g, max) | 750 |
Environmental (operating) | |
Ambient temperature | 5º to 55ºC |
Shock (half-sine wave) | 30G (2ms) |
Vibration | 1.5Gm all axes |
Environmental (non-operating) | |
Ambient temperature | -40º to 70ºC |
Shock (half-sine wave) | 250G (2ms) |
Vibration | 2.0G, all axes |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: HUS156060VLS600 W348K 0W348K
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
