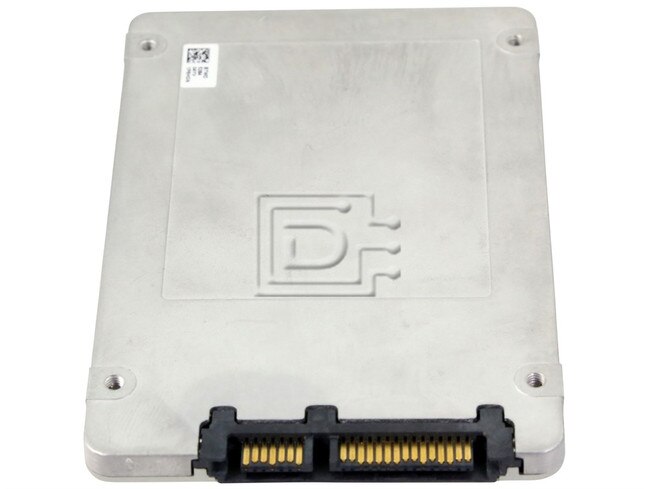

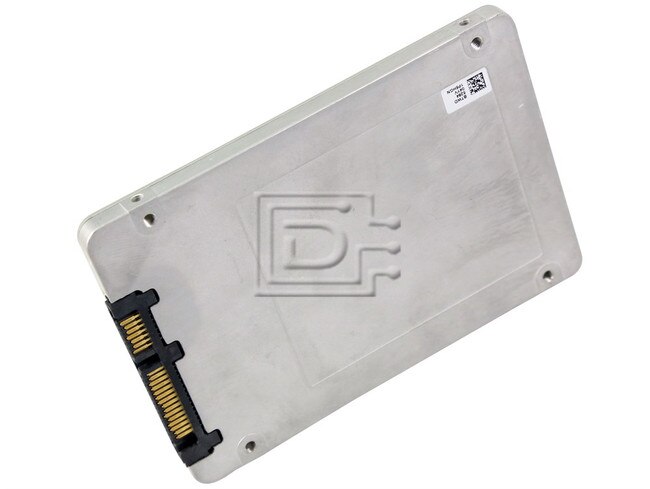

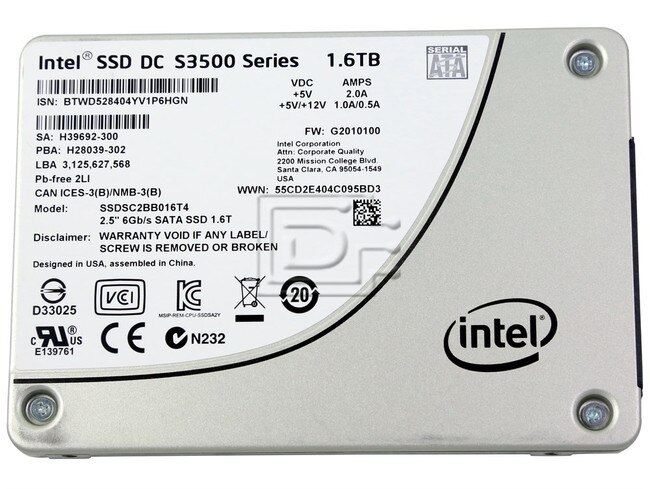

Intel SSDSC2BB016T401 1.6TB SATA Solid State Drive


DiscTech Item #: INT-SSDSC2BB016T401-NP-OE

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Enterprise Grade

Capacity: 1.6TB

Speed: Solid State Memory

Interface Types: SATA

Form Factor: 2.5inx7mm Fits All laptops

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: 500 / 450

Average Seek Time: 55 µs / 65 µs

Electrical Interface: SATA 600 - 6.0Gbps


SSD Endurance DWPD: Consumer / Value

Wattage/VA: 5.2W

Intel SSDSC2BB016T401 / SSDSC2BB016T4 1.6TB 2.5in 6Gbps MLC Consumer 0.3-DWPD DC S3500 Series SED SATA / Serial ATA SSD - New Pull

Intel SSDSC2BB016T401 1600GB 2.5" 6.0 Gb/s Multi-Level Cell Consumer 0.3 Drive Write Per Day Data Center S3500 Series Self-Encrypting Drive Serial Advanced Technology Attachment Solid State Disk Drive - New Pull

Intel Solid-State Drive DC S3500 Series Non-Volatile Memory Storage Solutions

Consistently Amazing
Premier Performance, Protection, and Optimization for the Data Center

The Intel Solid-State Drive S3500 Series offers the next generation of data center SSDs combining fast consistent read performance with strong data protection, and leading edge 20nm flash technology.

Fast and Consistent Performance
Deliver data at a rapid pace, with consistently low latencies and tight IOPS distribution.

The Intel Solid-State Drive DC S3500 Series delivers superior Quality of Service for applications such as video streaming/conferencing, virtual client support, and big data analytics. All of these applications benefit from 50µs typical latency with max read latencies1 of 500µs for 99.9% of the time and 4KB random read performance of up to 75,000 input/output operations per second (IOPS)2. Performance delivered with low active read power (less than 1.3 watts2) means this Intel SSD helps improve data center efficiency with reduced energy costs—making it an excellent value for data center storage application upgrades!

Stress-free Data Protection
Protect your data center applications with multiple security checkpoints providing protection against data loss and corruption.

The Intel SSD DC S3500 Series combines the following features to provide an SSD you can count on.

Full End-to-End Data Protection. Helps protect your data from the time it enters the drive to the time it leaves. The Intel® SSD DC S3500 Series uses an advance error correction scheme that helps to preserve data integrity by protecting against possible data corruption in the NAND, SRAM, and DRAM memory. The Intel® SSD DC S3500 Series also helps protect the data in transit through several techniques such as parity checks, Cyclic Redundancy Checks (CRC) and LBA tag validation. Once an error is detected, an immediate attempt will be made to correct it, and any uncorrectable error will be reported to the host. To further improve data assurance, the Intel® SSD DC S3500 Series provides data redundancy technology to minimize potential data loss.

Enhanced Power-Loss Protection. Reduces potential data loss by detecting and protecting data from an unexpected system power loss. The drive saves all cached data in the process of being written prior to shutting down, thereby reducing potential data loss.

Optimized for Efficiency
Reduce the strain on tight IT budgets with leading Intel technologies.

By combining the latest 20nm Multi-Level Cell (MLC) NAND flash memory technology with Intel’s latest SSD controller technology, the Intel® SSD DC S3500 Series delivers fast and consistent performance, reduced power consumption and stress-free data protection. Increase storage efficiency in your data center with the low power and high performance DC S3500 M.2 in a small form factor. Double the capacity in a 2.5” footprint with the DC S3500 1.2TB and 1.6TB, saving critical data center real estate. Optimize your dollars per IOP, energy costs, and floor space in your data center with the amazingly efficient Intel® SSD DC S3500 Series.

Product Spotlight

  • Fast and Consistent Performance
  • Full End to End Data Protection
  • Enhanced Power-Loss Data Protection
  • Latest 20nm MLC NAND Flash Memory Technology
  • Intel-Based Controller Technology
  • 2.5”, 1.8” and M.2 Form Factors

Alt Model Number: SSDSC2BB016T4


This drive is compatible with laptops that accept 2.5" x 7mm (Thin/Case) SATA drives.

Intel SSD DC S3500 Series
Model/Part No.SSDSC2BB016T401
Alt Model/Part No.SSDSC2BB016T4
Capacity1.6TB / 1,600GB
Lithogratphy Type20nm
Sequential Read (up to)500 MB/s
Sequential Write (up to)450 MB/s
Random Read (100% Span)65000 IOPS
Random Write (100% Span)14600 IOPS
Latency - Read55 µs
Latency - Write65 µs
Power - Active5.2W
Power - Idle500mW
Vibration - Operating2.17 Grms
Vibration - Non-Operating3.13 Grms
Shock (Operating and Non-Operating)1000 G/0.5msec
Operating Temerature Range0°C to 70°C
Endurance Rating (Lifetime Writes)880 TBW
Mean Time Between Failure (MTBF)2M Hours
Uncortectable Bit Error Rate (UBER)1 sector per 10^16 bits read
Package Specifications
Weight94 grams +/- 2 grams
Form Factor2.5" 7mm
InterfaceSATA 3.0 6Gb/S
Advanced Technologies
Enhanced Power Loss Data ProtectionYes
Hardware EncryptionAES 256 bit
High Endurance Technology (HET)Yes
Temperature Moitoring and LoggingYes
End-to-End Data ProtectionYes
Intel Smart Response TechnologyNo
Intel Rapid Start TechnologyYes

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: SSDSC2BB016T4

Weight: 1 lb

Warranty: 1 Year DiscTech

New Pull

Condition Levels Explained

The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
