INTEL Part #/MPN: SSDSC2BB800G401
DiscTech Item #: INT-SSDSC2BB800G401-RF-OE
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:1Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Capacity: 800GB
Speed: Solid State Memory
Interface Types: SATA
Form Factor: 2.5inx7mm Fits All laptops
Sector Size: 512 / 512e
Sustained Throughput: 500
Electrical Interface: SATA 600 - 6.0Gbps
SSD Type: MLC

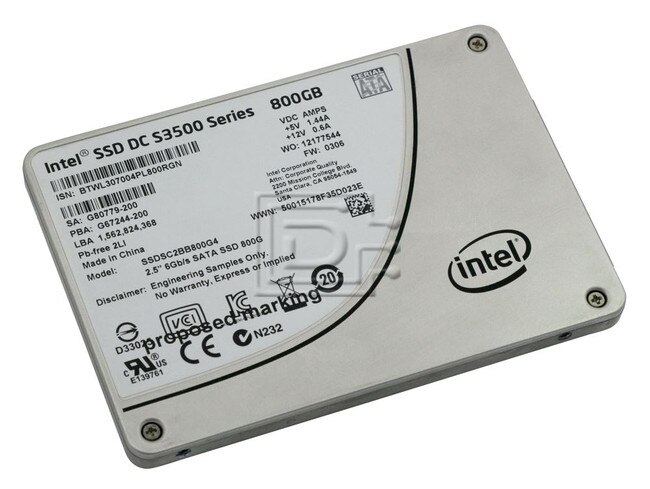

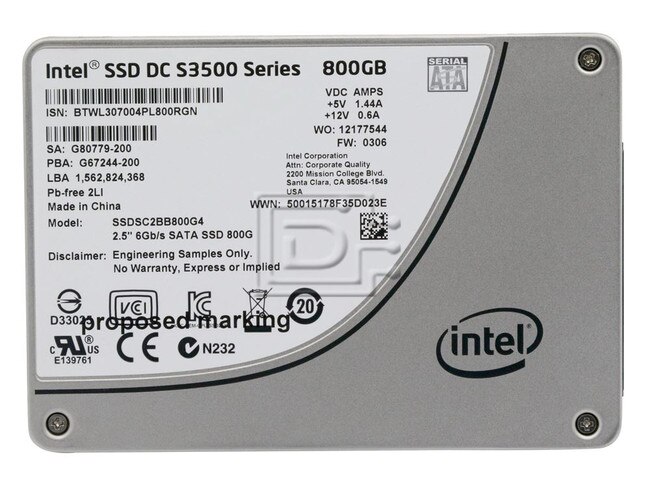

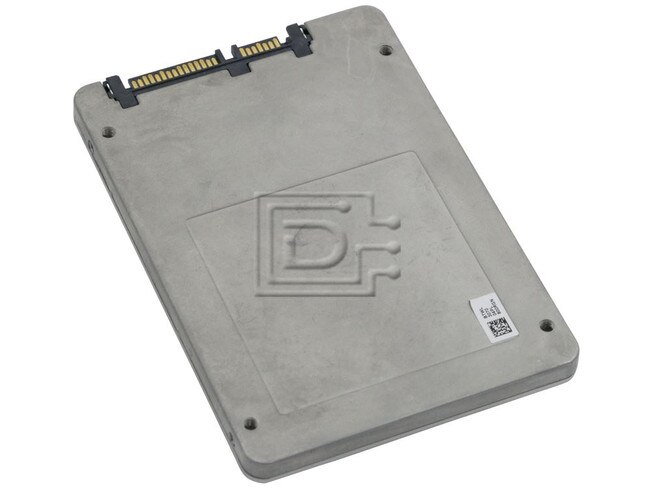

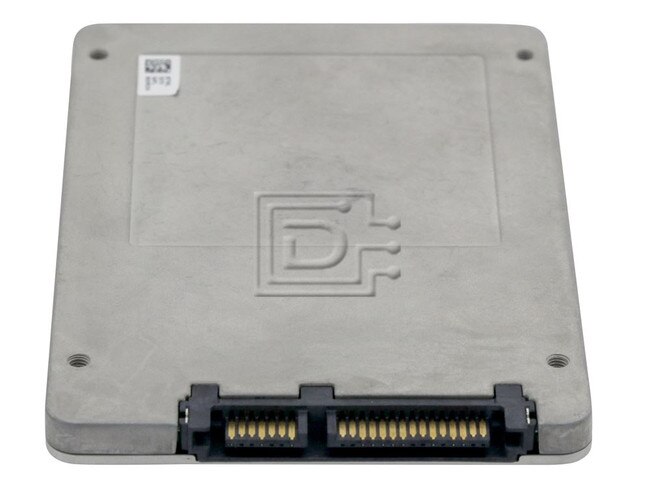

Intel SSDSC2BB800G401 / SSDSC2BB800G4 800GB 2.5" 6Gbps DC S3500 SATA MLC SSD - Refurbished
Intel SSDSC2BB800G401 / SSDSC2BB800G4 800GB 2.5" 6Gbps DC S3500 SATA MLC SSD - Refurbished
Intel Model Number: SSDSC2BB800G4
The Intel® SSD DC S3500 Series combines fast, consistent read performance with strong data protection and low active power levels to provide superior quality of service for video conferencing, big data analytics, or virtual client applications. Consistently low read latencies of 50µs typical (500µs max for 99.9% of the time) along with a tight distribution of up to 75,000 input/output per second (IOPS)1 delivers a high-performance, reliable, and efficient SSD specifically designed for data center application upgrades.
Key features and benefits of this drive include an Intel® 3rd generation controller, industry-leading 20nm multi-level cell (MLC) NAND flash technology, full end-to-end data protection, enhanced power-loss data protection, and a broad range of capacities up to 800GB.
Compatibility:
This drive is compatible with any server that accepts 2.5" x 7mm (Thin/Case) SATA drives
| Intel Model Number | SSDSC2BB800G4 |
|---|---|
| Ordering Part Number | SSDSC2BB800G401 |
| Capacity | 800GB |
| Performance | |
| Interface Type | SATA |
| Sequential Read | 500 MB/s |
| Sequential Write | 450 MB/s |
| Random Read (8GB Span) | 75000 IOPS |
| Random Write (8GB Span) | 11500 IOPS |
| Latency - Read | 50 µs |
| Latency - Write | 65 µs |
| Power - Active | 5W |
| Power - Idle | 0.9W |
| Vibration - Operating | 2.17 Grms |
| Vibration - Non-Operating | 3.13 Grms |
| Shock (Operating and Non-Operating) | 1,000 G/0.5 msec |
| Operating Temperature Range | 0°C to 70°C |
| Mean Time Between Failures (MTBF) | 2,000,000 Hours |
| Uncorrectable Bit Error Rate (UBER) | <1 sector per 10^16 bits read |
| Physical | |
| Height (in/mm) | 0.276/7.0 |
| Weight (lb/g) | 0.163/74.0 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: SSDSC2BB800G4
