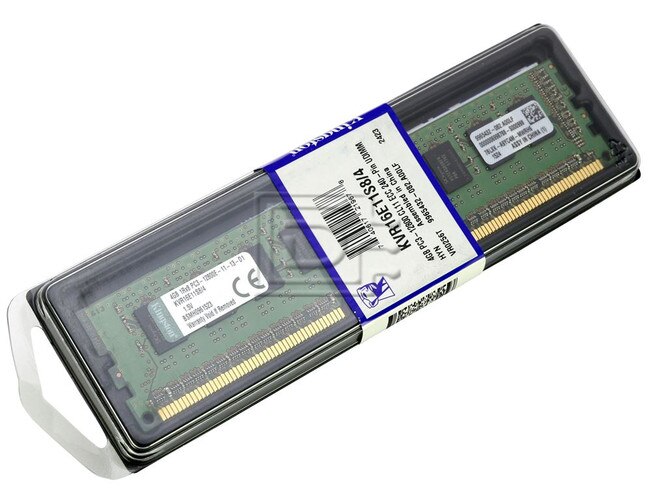

Kingston KVR16E11S8/4 PC3-12800 4GB 1Rx8 DDR3-1600 MHz ECC CL11 240-Pin 1.5V Unbuffered Ram Module

KINGSTON TECHNOLOGY Part #/MPN: KVR16E11S8/4

DiscTech Item #: KIN-KVR16E11S8-4-BN-OE


$37.00
$37.00

Interface Types: DDR3 DIMM 240pin

Electrical Interface: PC3-12800

On-Board Cache: 4GB

Voltage: 1.5V

Compatible Systems: Dell 11th Gen. R710/T610, HP 8th Gen. G8, HP 7th Gen. G7

Kingston KVR16E11S8/4 PC3-12800 4GB 1Rx8 DDR3-1600 MHz ECC CL11 240-Pin 1.5V Unbuffered Ram Module - Brand New

Kingston 240-pin ECC Un-buffered DIMMs are used in DDR3 memory for select servers and ECC capable desktop computers. DDR3 memory features an improved architecture that allows it to transmit data more quickly.

A dual inline memory module (DIMM) consists of a number of memory components (usually black) that are attached to a printed circuit board (usually green). The gold pins on the bottom of the DIMM provide a connection between the module and a socket on a larger printed circuit board. The pins on the front and back of a DIMM are not connected to each other.

FEATURES

• JEDEC standard 1.5V (1.425V ~1.575V) Power Supply

• VDDQ = 1.5V (1.425V ~ 1.575V)

• 800MHz fCK for 1600Mb/sec/pin

• 8 independent internal bank

• Programmable CAS Latency: 11, 10, 9, 8, 7, 6

• Programmable Additive Latency: 0, CL - 2, or CL - 1 clock

• 8-bit pre-fetch

• Burst Length: 8 (Interleave without any limit, sequential with

starting address “000” only), 4 with tCCD = 4 which does not

allow seamless read or write [either on the fly using A12 or

MRS]

• Bi-directional Differential Data Strobe

• Internal(self) calibration : Internal self calibration through ZQ

pin (RZQ : 240 ohm ± 1%)

• On Die Termination using ODT pin

• On-DIMM thermal sensor (Grade B)

• Average Refresh Period 7.8us at lower than TCASE 85°C,

3.9us at 85°C < TCASE < 95°C

• Asynchronous Reset

• PCB : Height 1.180” (30.00mm), single sided component



Compatibility: For select ECC capable PCs and Servers including.

  • Poweredge T310

SPECIFICATIONS
Model Number KVR16E11S8/4
Form FactorDDR3
Capacity4GB
SpecsDDR3 PC3-12800
1600 MHz
Cl=11
ECC
1.5V
Un-buffered
Single Ranked

SeriesValueRAM
ECCECC
Kit Qty1
Speed1600 MHz
TracerFalse
Voltage1.5V
DIMM TypeECC Un-buffered

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: KVR16E11S8-4

Weight: 0.25 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
