Maxtor Part #/MPN: 8B036J0
DiscTech Item #: MAX-8B036J0-FR-6M
- Factory RefurbishedCondition Levels Explained
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.
Product Warranties ExplainedThe product has a manufacturer warranty for the time period specified.
- Warranty:6 Month Manufacturer
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Enterprise Grade
Capacity: 36GB
Speed: 10,000RPM
Interface Types: SCSI 80pin SCA-2 Hot-Swap
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 89
Average Seek Time: 4.3 / 4.8
Electrical Interface: SCSI LVD U320 - 320MBps 16-bit
On-Board Cache: 8MB

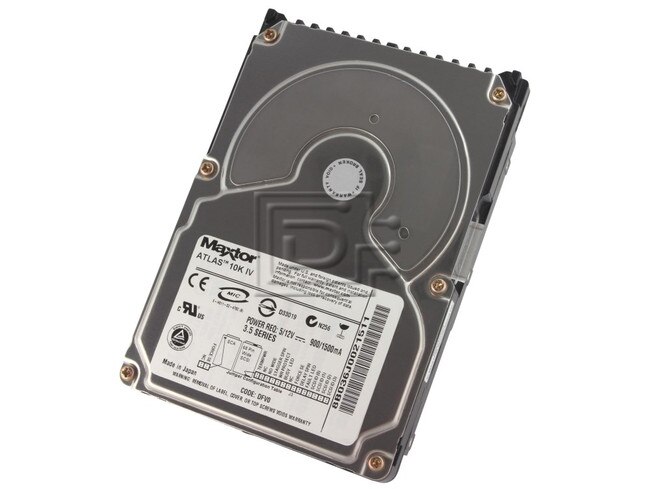

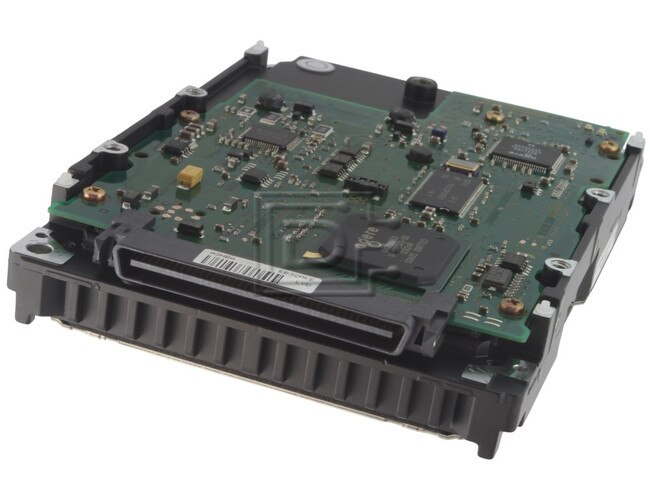

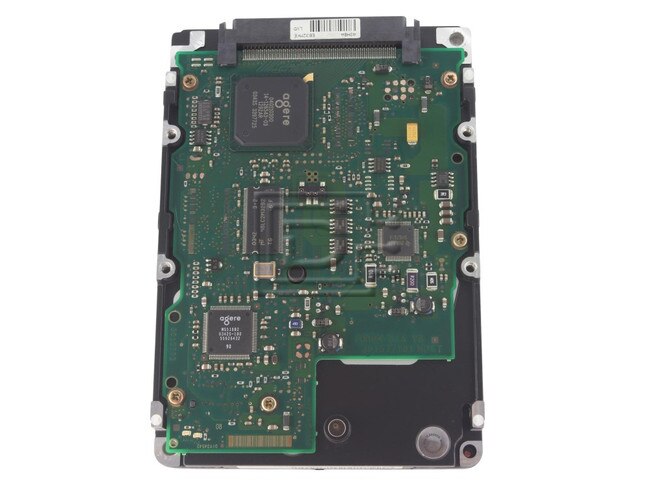

Maxtor Atlas 10K IV 36GB U320 80pin SCA-2 SCSI Hard Drive 8B036J0 - Factory Refurbished
These drives are ideal for the most demanding high-bandwidth and high-capacity enterprise server applications. The Ultra320 interface includes features such as packetization and quick arbitrate and select, which greatly increase data throughput. The Maxtor-developed Ultra320 interface includes MaxAdapt® (adaptive active filtration), a closed-loop method of improving signal quality. MaxAdapt allows the drive to adapt to changing system conditions and components, which translates into lower error rates, easier integration, and increased bus efficiency for optimal system performance.
Like other Maxtor drives, the Atlas 10K IV drives provide superior shock durability with the Maxtor Shock Protection System, which guards against the effects of mistreatment during handling and integration. The result for systems integrators is fewer returns, lower total cost of ownership, and more satisfied customers. Other valuable features include active LVD bus hot pluggable design, intelligent bus management, and automatic SCSI mode configuration.
* Excellent 10K performance
* Third-generation Ultra320 SCSI
* Seek time as low as 4.0ms
* MaxAdapt® intelligent drive technology
* Formatted capacity: 36.7GB, 73.5GB, 147.1GB
* 89MB/s maximum sustained data rate
* 8MB cache buffer
* 24x7 dependability
* S.M.A.R.T. compliant
* Thermal sensor
Specifications | 36.7 GB | 73.5 GB | 147.1 GB |
Formatted Capacity (GB) | 36.7 | 73.5 | 147.1 |
Bytes per Sector 512 | |||
Interface Ultra 320 SCSI (Backwards compatible with Ultra160, Ultra2, Ultra SCSI) | |||
Interface Connectors 68-pin WIDE and 80-pin SCA-2 | |||
Average Read/Write (ms) | 4.3/4.8 | 4.3/4.8 | 4.4/4.9 |
Track-to-Track Read/Write (ms) | 0.3/0.5 | 0.3/0.5 | 0.3/0.5 |
Full stroke Read/Write (ms) | 11.0/12.0 | 11.0/12.0 | 11.0/12.0 |
Maximum Sustained Transfer Rate (MB/sec) | 72 | 72 | 72 |
Operating Temperature (°C) | 5 to 55 | 5 to 55 | 5 to 55 |
Non-Condensing Humidity (%) | 8 to 95 | 8 to 95 | 8 to 95 |
Non-Operating Temperature (°C) | -40 to 70 | -40 to 70 | -40 to 70 |
Idle Power (W) | 7.8 | 8.9 | 10.3 |
Width max (inches/mm) | 4/101.6 | 4/101.6 | 4/101.6 |
Length max (inches/mm) | 5.787/147 | 5.787/147 | 5.787/147 |
Height max (inches/mm) | 1.028/26.1 | 1.028/26.1 | 1.028/26.1 |
Weight max (lb/kg) | 1.6/0.74 | 1.6/0.74 | 1.6/0.74 |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 8B036J
Weight: 1.8 lb
Warranty: 6 Month Manufacturer
Factory Refurbished
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.
The product has a manufacturer warranty for the time period specified.
6 Month Manufacturer Warranty
