Maxtor Part #/MPN: 8D300J0
DiscTech Item #: MAX-8D300J0-BN-OE-DEL
- Brand New
- Warranty:1 Year DiscTech
- Low Stock:Call for ETA
Enterprise Grade
Capacity: 300GB
Speed: 10K RPM
Interface Types: SCSI 80pin SCA-2 Hot-Swap
Form Factor: 3.5" LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 89
Average Seek Time: 4.4 / 4.9
Electrical Interface: SCSI LVD U320 - 320MBps 16-bit
On-Board Cache: 8MB

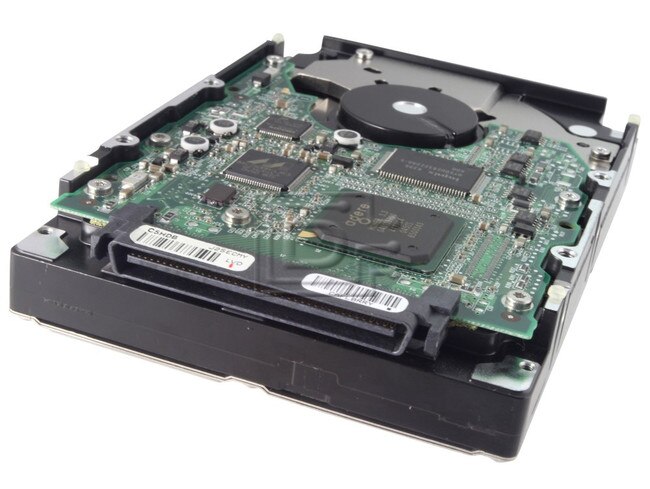

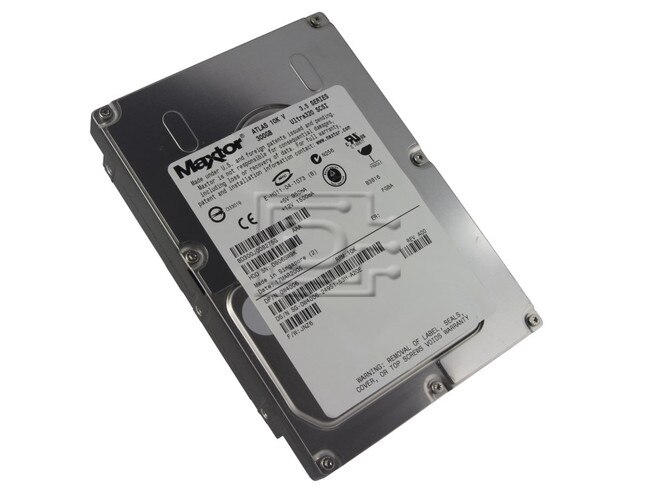

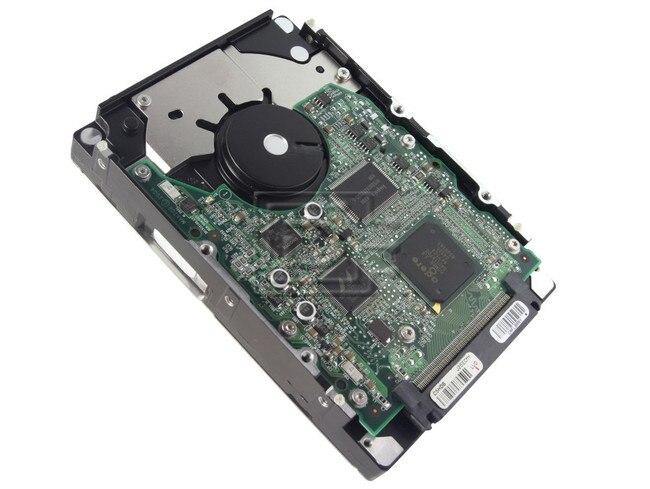

Maxtor Atlas 10K V 300GB U320 80pin SCA-2 SCSI Hard Drive 8D300J0 - Brand New OEM
The Atlas 10K V SCSI hard disk drive is the industry’s largest and most reliable 10K SCSI drive, with 300GB maximum capacity and a MTTF of 1.4 million hours. Seek times as fast as 4.0ms and 89MB/sec sustained data transfer rate makes the Atlas 10K V drive an excellent solution for any application. It includes Maxtor’s intelligent drive technology, MaxAdapt®, which allows the HDD to adapt to individual system designs for seamless integration while maintaining peak performance.
MaxAdapt features include:
* Adaptive Bias Estimation -- maintains consistent performance
* Virtual Cache Lines (VCL) -- allows dynamic assignment of cache segments
* Adaptive Active Filtration -- improves signal integrity
* Rotational Vibration Compensation (RVC) -- monitors and corrects for induced vibration
Performance improvement features include:
* Anticipatory read and write streams -- minimizng latency
* Opportunistic pre-fetch -- uses latency between commands to read ahead
* Auto Read mode -- improves random and multiple sequential streams performance
* Industry's highest 10K performance
* Formatted capacity: 73.4GB, 147.1GB, 300GB
* Seek time as fast as 4.0ms
* Designed for 1.4 million hours MTTF
* Third-generation Ultra320 SCSI
* MaxAdapt® intelligent drive technology
* 89MB/s maximum sustained data rate
* 8MB cache buffer
* Enhanced S.M.A.R.T. features
* Thermal sensor
| Specifications | 73.5 GB | 147.1 GB | 300 GB |
| Formatted Capacity (GB) | 73.5 | 147.1 | 300 |
| Bytes per Sector | 512 | 516 | 518 |
| Interface Ultra 320 SCSI (Backwards compatible with Ultra160, Ultra2, Ultra SCSI) | |||
| Interface Connectors 68-pin WIDE and 80-pin SCA-2 | |||
| Average Read/Write (ms) | 4.0/4.5 | 4.2/4.7 | 4.4/4.9 |
| Track-to-Track Read/Write (ms) | 0.3/0.5 | 0.3/0.5 | 0.3/0.5 |
| Full stroke Read/Write (ms) | 11.0/12.0 | 11.0/12.0 | 11.0/12.0 |
| Maximum Sustained Transfer Rate (MB/sec) | 89 | 89 | 89 |
| Operating Temperature (°C) | 5 to 55 | 5 to 55 | 5 to 55 |
| Non-Condensing Humidity (%) | 5 to 95 | 5 to 95 | 5 to 95 |
| Non-Operating Temperature (°C) | -40 to 70 | -40 to 70 | -40 to 70 |
| Idle Power (W) | 8.0 | 8.5 | 10.8 |
| Width max (inches/mm) | 4/101.6 | 4/101.6 | 4/101.6 |
| Length max (inches/mm) | 5.787/147 | 5.787/147 | 5.787/147 |
| Height max (inches/mm) | 1.028/26.1 | 1.028/26.1 | 1.028/26.1 |
| Weight max (lb/kg) | 1.8/0.82 | 1.8/0.82 | 1.8/0.82 |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: W4006 CC317
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Brand New
1 Year DiscTech Warranty
