Mellanox MC2210310-015 15m / 49 ft active fiber cable
- Brand NewCondition Levels Explained
The product is brand new.
- In Stock:10Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Interface Types: | GBIC |
Description

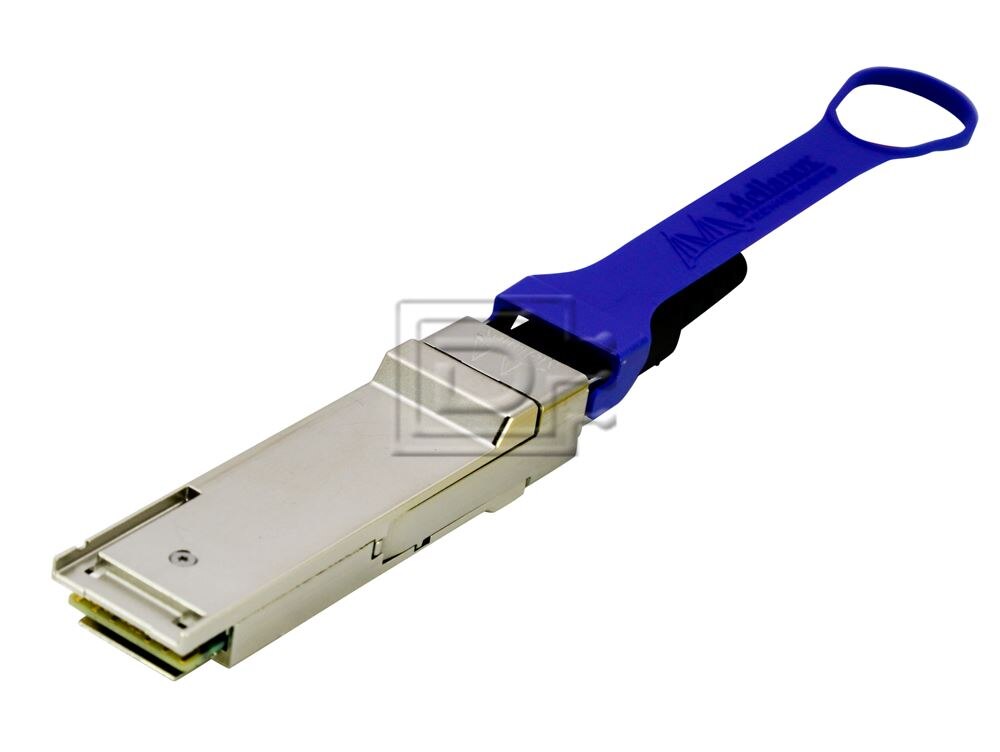

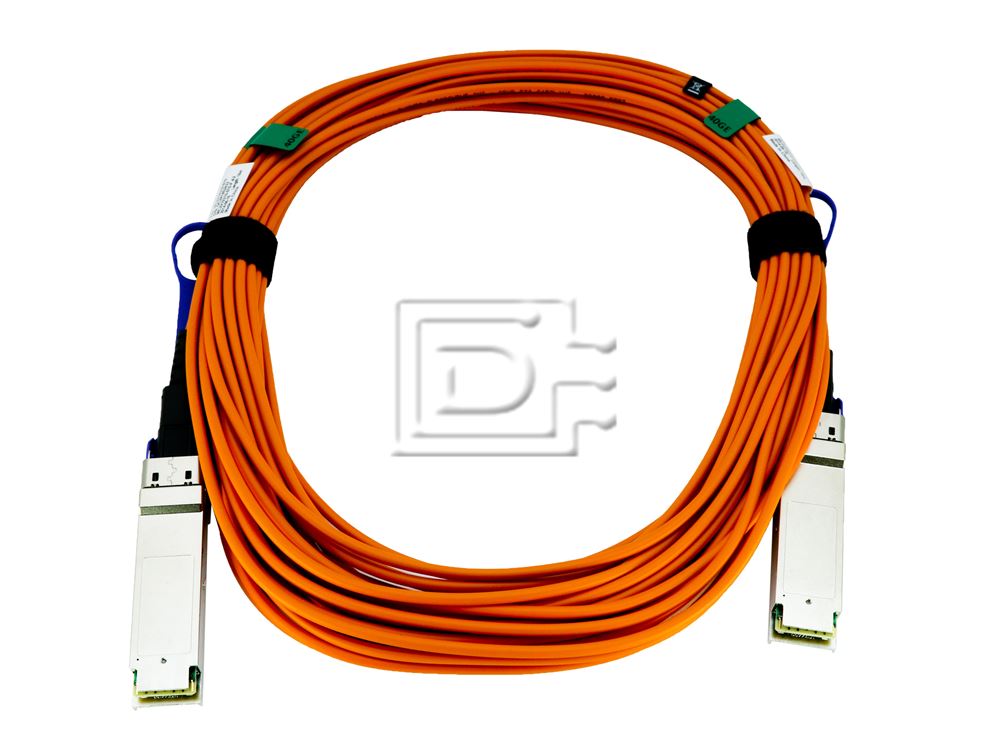

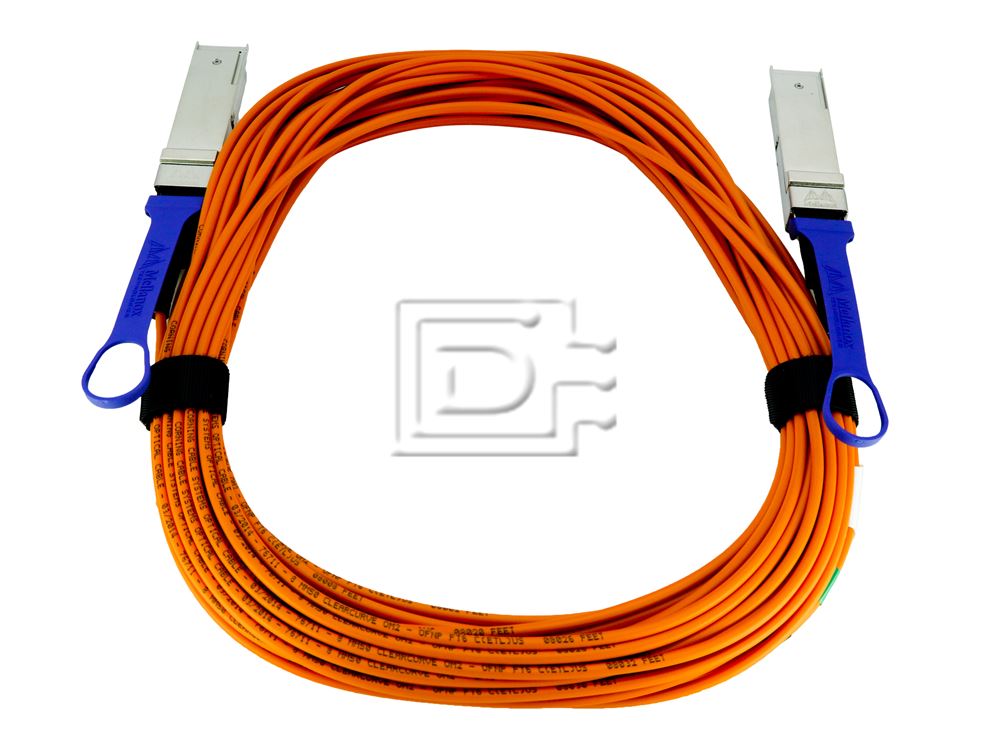

Mellanox MC2210310-015 15m / 49 ft active fiber cable - Brand New
Mellanox MC2210310-015 15m / 15 Meter / 49 ft active fiber cable, VPI / Virtual Protocol Interconnect, up to FDR / Fourteen Data Rate 40 GbE, QSFP+ / Quad Small Form-Factor Pluggable Plus - Brand New
40Gb/s QSFP+ Active Optical Cable
Mellanox MC2210310 is a family of VCSEL-based (Vertical Cavity Surface-Emitting Laser) QSFP+ active optical cable (AOC) designed for use in 40GbE Ethernet and 56Gb/s Virtual Port Interconnect (VPI) systems. This family of AOCs offers high port density and configurability, as well as a longer reach than passive copper cables in data centers. Since the AOC is hot pluggable, it is easy to install and replace.
The MC2210310 family has a standard SFF-8685 compliant QSFP+ port on the electrical side towards the host system.
MC2210310 AOCs contain four multi-mode fibers (MMF) optical transceivers per end, each operating at data rates of up to 14.0625Gb/s. The transmitters have input equalizers compensating for signal attenuation across the host PCB, and the receivers have programmable output amplitude and pre-emphasis.
Rigorous production testing ensures the best out-of-the-box installation experience, performance and durability.
Highlights
- Up to 40Gb/s data rate
- 1W maximum power consumption
- SFF-86855 and SF-8436 compliant
- Operating case temperature of 0-70°C
- 3.3V power supply
- BER better than 1E-15
- Hot pluggable
- Up to 100 meters in length
- Standard multimode fiber
- RoHS compliant
- Plenum rated (OFNP)
Specifications
| Mellanox Active Fiber Cable | |
|---|---|
| Standard Model Number | MC2210310-015 |
| Technology | InfiniBand |
| Max Speed | FDR |
| Material | Fiber |
| Connector Type | QSFP |
| Passive/Active | Active |
| Length | 15m to 40m |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: MC221031V-015
Weight: 6 lb
Warranty: 1 Year DiscTech
Condition
Brand New
Warranty
1 Year DiscTech Warranty
