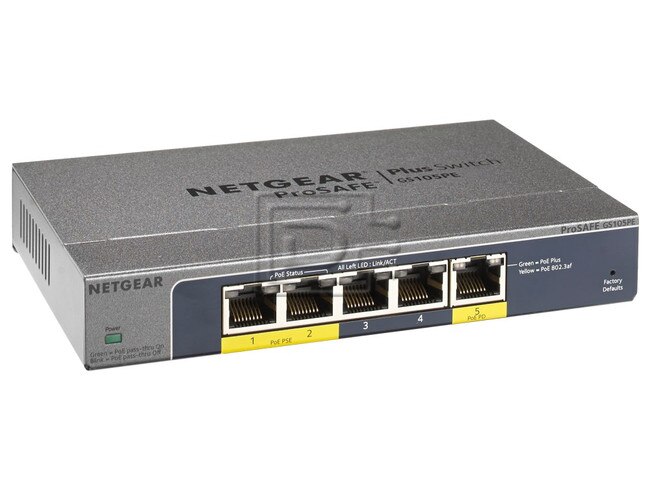

NetGear GS105PE 5-Port Desktop Switch


DiscTech Item #: NET-GS105PE-BN-FW


Item is out of stock. Please call for alternatives.

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Item is out of stock. Please call for alternatives.

Interface Types: Ethernet RJ45

Electrical Interface: Ethernet Gigabit - 1Gbps

On-Board Cache: 2MB

Bays/Ports/Slots: 5

Voltage: 110-240V Multi

NetGear ProSAFE GS105PE 5-Port Gigabit Web Managed Plus Desktop Switch with 2-Port PoE - Brand New

NetGear ProSAFE GS105PE 5-Port Gigabit Web Managed Plus Desktop Switch with 2-Port PoE - Brand New

Control and Configure Beyond Plug-and-Play Connectivity
Today’s growing businesses rely more on their network to carry out mission-critical business activities. Deployment of VoIP and IP surveillance needs the network intelligence to separate the voice and video traffic from data, and prioritize them accordingly. However, companies do not necessarily have more money or advanced training to deal with complex managed switches.

NETGEAR® ProSAFE® Gigabit Web Managed (Plus) Switches meet this growing need by providing fundamental network features such as VLANs, QoS, and IGMP Snooping that will help optimize the performance of business networks. ProSAFE Web Managed (Plus) switches come in a variety of configurations ranging from 5 port desktop to 24 port rackmount. Some models support Power-over-Ethernet (PoE) and can power devices such as IP phones, IP surveillance cameras and wireless access points with just an Ethernet cable; perfect for low cost PoE deployments. ProSAFE Web Managed (Plus) Switches are the perfect upgrade from the plug-and-play unmanaged switch, delivering essential networking features at a very affordable price.


  • Enable network configuration and management at the price point of Unmanaged Switches
  • Gigabit connection delivers up to 2000 Mbps of dedicated, non-blocking bandwidth per port
  • Simple, yet useful network set-up on top of plug-and-play connectivity
  • Flexible management via PC-based Utility Tool
  • VLAN support for traffic segmentation
  • Quality of Service (QoS) for traffic prioritization
  • Auto “denial-of-service” (DoS) prevention
  • Troubleshoot connection issues via cable test
  • Loop detection and broadcast storm controls
  • IGMP snooping v1, v2 and v3 support for multicast optimization
  • Rate limiting for better bandwidth allocation
  • Port mirroring for network monitoring
  • Port trunking for bigger uplink bandwidth
  • Jumbo frame support
  • Energy Efficient Ethernet (IEEE802.3az) support for maxium power savings

Gigabit Web Managed (Plus) Switch Series
Model/Part No.GS105PE
Gigabit Ports5
10 Gbps PortN/A
Number of PoE Ports2
Total PoE Power Budget (Watts)PoE pass-thru: 19W with 802.3at / 7.9W with 802.3af input power
Max MAC Entries8K
Buffer Size2MB
VLAN (Number Supported)64
Number of LAGs & Number of MembersN/A
Supported Multicast Groups128
Max Number of Source Ports Allowed (Many to 1)4
Internal/External***NO EXTERNAL POWER ADAPTER: This product requires PoE input power (802.3af or 802.3at) to operate; it has no means to power from AC.
Max Consumption (Watts)22W
Acoustic Noise Level @25C (dBA)0
Operating Temperature0° to 50° C
Weight (kg)0.45Kg
Dimensions (W x D x H) mm158 x 105 x 27
Electromagnetic Compliance (A or B)B

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: B00J8NAWZ8

Weight: 1.5 lb

Warranty: Factory Warranty

Brand New

Condition Levels Explained

The product is brand new.

Factory Warranty Warranty
