OCZ Technology Part #/MPN: D2CSTK251M3T-0120

DiscTech Item #: OCZ-D2CSTK251M3T-0120-BN-3Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Enterprise Grade

Capacity: 120GB

Speed: Solid State Memory

Interface Types: SATA

Form Factor: 2.5inx9mm Fits Most laptops

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: Up to 550

Electrical Interface: SATA 600 - 6.0Gbps


SSD Endurance DWPD: Consumer / Value

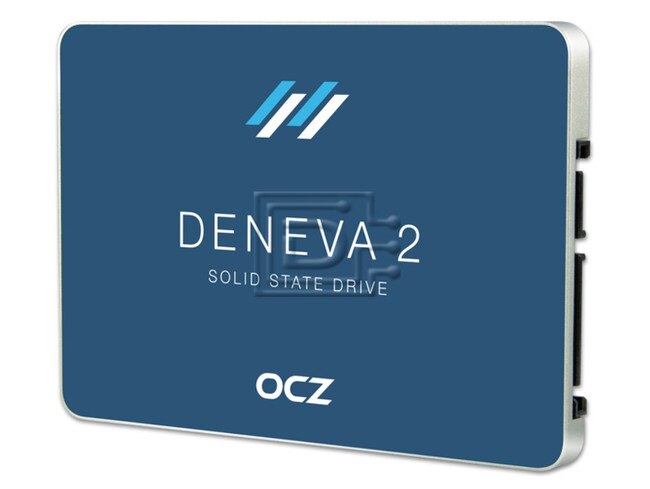

OCZ D2CSTK251M3T-0120 120GB 2.5in 6Gbps Deneva 2 C Series Enterprise SED SATA MLC SSD - Brand New

OCZ D2CSTK251M3T-0120 120GB 2.5" 6.0 Gbps Deneva 2 C Series, Enterprise, Self-Encrypting, SATA, Multi-Level Cell, Solid State Disk Drive - Brand New

Increase Productivity & Application Performance

OCZ Deneva 2 SSDs are designed and manufactured to solve today's enterprise storage challenges and address the limitations hard drive technology imposes on IT infrastructures. The Deneva 2 Series delivers the industry's best performance while meeting the stringent reliability, security, and economical needs of enterprise storage environments including cloud storage, web-serving, and data warehousing. Providing a lucrative option for datacenters, Deneva 2 maximizes IOPS per dollar enabling increased data throughput with lower power consumption and a smaller operating footprint.


  • Leading-edge SATA 6Gb/s storage solution designed to dramatically increase productivity and application performance
  • Cost-effective MLC-based design with best-in-class endurance and reliability
  • 128-bit AES-compliant Encryption

Raising the Bar in Performance

  • Delivers the performance of hundreds of hard disk drives in a single server
  • Over 550 MB/s of throughput
  • Up to 80,000 4K random write IOPS

Reliable, Longer-Lasting and Secure

  • Data fail recovery ensures superior reliability
  • Intelligent block management and wear-leveling for increased endurance
  • Advanced security with 128-bit AES encryption support
  • Strong error correction for enhanced data integrity

Flexible Design with a Wide Array of Configurations

  • Deneva 2 comes in an industry-standard 2.5" model; however, its unique architecture can be tailored to fit specific applications

Cost-Savings that Other SSD Lines Cannot Deliver

  • Alternative flash options provide a greater spectrum of price per IOPS
  • Support for next generation NAND flash geometries


This drive is compatible with any server that accepts 2.5" x 9mm (Fits in ALL laptops) SATA drives.

Drive ModelD2CSTK251M3T-0120
ModelDeneva 2 C Series
IDEMA Capacity120GB
Raw Capacity128GB
Write Endurance (4K RW)20 TBW
Write Endurance (128K SW)340 TBW
InterfaceSerial ATA (SATA) 6Gb/s
NAND Components19nm Multi-Level Cell (MLC)
Form Factor2.5 inch
Height (mm/in)9.2/0.36
Width (mm/in)69.75/2.75
Length (mm/in)100/3.94
Weight (g/lb)83/0.18
Read BandwidthUp to 550 MB/s
Write BandwidthUp to 520 MB/s
4K Random Read Operations (Compressible)26,000 IOPS
4K Random Write Operations (Compressible)27,000 IOPS
4K Random Read Operations (Incompressible)24,000 IOPS
4K Random Write Operations (Incompressible)1,100 IOPS
Power ConsumptionIdle 0.9W, Active ~ 2.35W
Operating Temperature0°C ~ 70°C
Storage Temperature-45°C ~ 85°C
CertificationsCE, FCC, KCC, C-Tick, BSMI, VCCI, RoHS
MTBF2 million hours
Data Safe Recovery TechnologyProvide data recovery in case of block failure vie LSI RAISE technology
Data Path ProtectionECC: Up to 24 bits correctable per 512-byte sector
Data ReliabilityRead Unrecoverable Bit Error Rate (UBER) 1 sector per 1016 bits read
Product Health MonitoringSelf-Monitoring, Analysis and Reporting Technology (SMART) Support with enterprise attributes
Data Encryption128-bit AES-compliant
Additional Features
Performance OptimizationTRIM (requires OS support)
Write Protection CircuitProtection for data corruption
Temperature SensorTemperature Monitoring & Logging
Secure EraseEnabled via OCZ Toolbox (Windows and Linux versions)
In Rush CurrentNew OCZ power design with improved in rush current protection

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 1.8 lb

Warranty: 3 Year Manufacturer

Brand New
