OCZ Technology Part #/MPN: RVD350-FHPX28-240G
DiscTech Item #: OCZ-RVD350-FHPX28-240G-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Capacity: 240GB
Speed: Solid State Memory
Interface Types: PCIe
Form Factor: Full-Height/Half-Length
Encryption/SED Supported
Sector Size: 512 / 512e
Sustained Throughput: 1000
Electrical Interface: PCIe - v2.0 - 8GBps
SSD Type: MLC

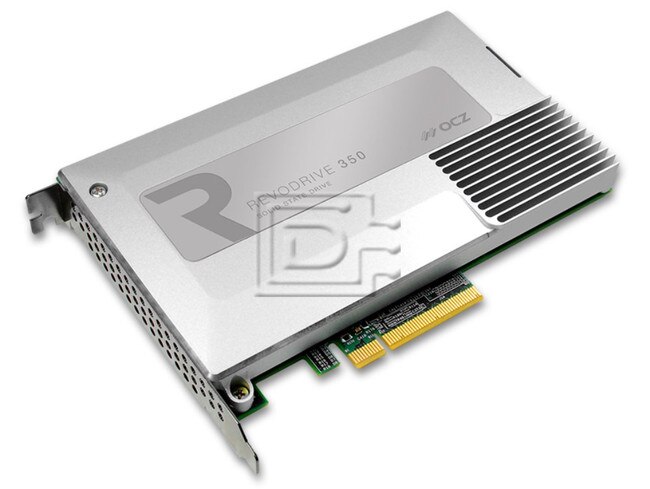

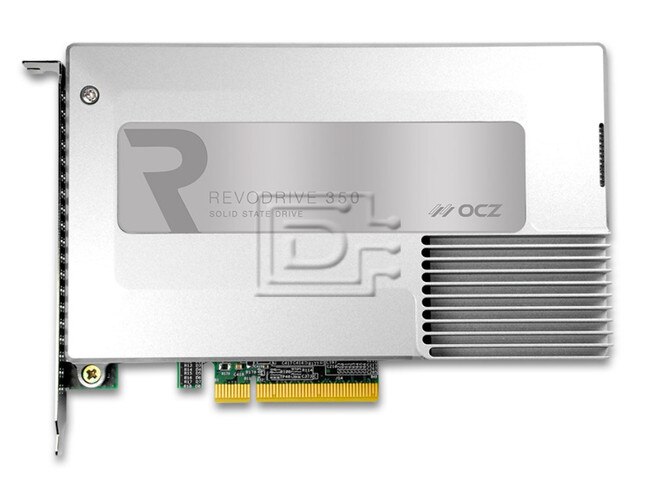

OCZ RVD350-FHPX28-240G 240GB RevoDrive 350 SED PCIe MLC SSD - Brand New
OCZ RVD350-FHPX28-240G 240GB RevoDrive 350 SED PCIe Multi-Level Cell Solid State Disk Drive - Brand New
Break the Bottleneck - Imagine the faster file transfers, snappier boot ups, and system responsiveness that make SSDs superior to hard drives, and then multiply that by 3X to achieve the incredible speeds of the PCIe-based RevoDrive 350. Free up the bandwidth and see the productivity potential your workstation or performance gaming system was missing for so long.
Sophisticated Feature-Set - There’s more below the surface of its incredible speeds. With OCZ’s Virtualized Controller Architecture (VCA) technology, the multi-controller RevoDrive 350 is seen by the host as a single drive to enable TRIM command support, SMART health monitoring, and easy firmware updates. Plus, it’s bootable as a direct-attach device to launch applications in a snap.
Don’t be Afraid to Write - As a media professional, you write a lot more data than the average user. The RevoDrive 350 has you covered, supporting up to 50GB of host writes per day for 3 years to provide leading endurance over less robust consumer SSDs.
Keep Thermals in Check - That sleek new casing isn’t just for looks. RevoDrive 350 keeps its cool even during the most intensive applications or heavy multitasking with an improved alloy housing to effectively dissipate heat.
Features
- Bye-Bye Bottleneck - Eliminates the SATA bottleneck enabling up to 3x the performance.
- Optimized Drivers – Ground-up, redesigned drivers for ultimate performance efficiency.
- Hassle-Free RAID – GET SSD RAID performance in an easy to deploy, single card solution.
- Enhanced Thermals – Integrated heatsink provides a stable and cool thermal SSD environment.
- Virtualized Controller Architecture™ (VCA) 2.0 – Internal storage controller enables TRIM, SMART, and secure erase.
- Superior Bandwidth – More available bandwidth with PCI Express Gen . 2x8 interface.
- Workstation-grade Design – Engineered for demanding professional applications.
- Enterprise Derived – Design based on enterprise-grade OCZ Z-Drive 4500
Compatibility:
This drive is compatible with any server that accepts Full-Height/Half-Length PCIe drives.
| Drive Model | RVD350-FHPX28-240G |
|---|---|
| Capacity | 240GB |
| Performance | |
| Sequential Reads | 1000 MB/s |
| Sequential Writes | 950 MB/s |
| Random Read Speed (4K, QD32) | 45,000 IOPS |
| Random Write Speed (4K, QD32) | 80,000 IOPS |
| Physical | |
| NAND Components | 19nm Multi-Level Vell (MLC) Flash |
| Interface | PCI Express Gen. 2 x8 |
| NAND Controller | LSI® SandForce® SF-2282 |
| Storage Controller | VCA 2.0 (Virtualized Controller Architecture™) |
| Length (mm/in) | 180.9/7.122 |
| Width (mm/in) | 126.3/4.972 |
| Height (mm/in) | 21.6/0.850 |
| Weight (g/lb) | 310/0.683 |
| Form Factor | Full-Height/Half-Length (FH/HL) |
| Environmental | |
| Power Consumption | Idle 8.0W, Active 10.5W |
| Operating Temperature | 0°C ~ 55°C |
| Storage Temperature | -45°C ~ 85°C |
| Shock Resistance | 500G/0.5ms |
| Vibration (Operational) | 2.17Grms (7-800Hz) |
| Vibration (Non-Operational) | 3.13 Grms (8-800Hz) |
| Altitude (Operational) | -1,000ft to 10,000ft |
| Altitude (Non-Operational) | -1,000ft to 40,000ft |
| Airflow | 300LFM @ @ 55°C |
| Certification | UL C/US, FCC, CE, C-Tick, KCC, BSMI, VCCI, WEEE |
| Reliability/Protection | |
| Mean Time Between Failures (MTBF) | 2 million hours |
| Endurance Rating | Rated for 50GB/day of host writes for 3 years under typical client workloads |
| Data Encryption | AES-128 compliant |
| Product Health Monitoring | Self-Monitoring, Analysis and Reporting Technology (SMART) Support |
| Compatability | |
| PCI Express | PCI Express x8 or x16 slot; Fully compliant with the PCI Express Electromechanical Specification Rev. 2.0, and PCI Express Base Specification Rev. 2.0 |
| Operating System | Microsoft Windows 7, 8, 8.1 32/64-bit, Linux support planned |
| Power Requirements | PCIe 12V & 3.3V |
| Target Applications | Client workstations and performance gaming systems |
| Additional Features | |
| Performance Optimization | TRIM (requires OS support), Garbage Collection |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1.2 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
