OCZ Technology Part #/MPN: RVD350-FHPX28-960G

DiscTech Item #: OCZ-RVD350-FHPX28-960G-BN-OE

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Capacity: 960GB

Speed: Solid State Memory

Interface Types: PCIe

Form Factor: Full-Height/Half-Length

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: 1800

Electrical Interface: PCIe - v2.0 - 8GBps

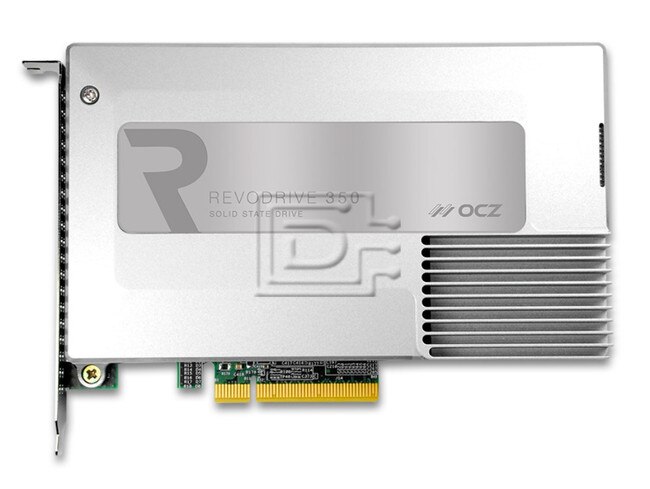

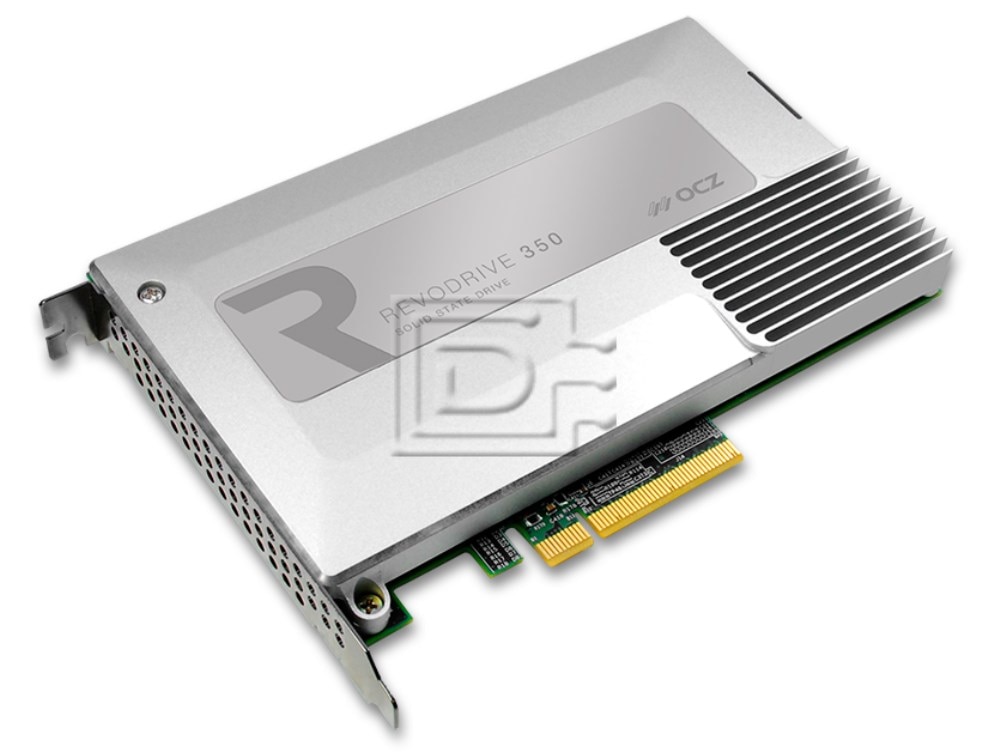

OCZ RVD350-FHPX28-960G 960GB RevoDrive 350 SED PCIe MLC SSD - Brand New

OCZ RVD350-FHPX28-960G 960GB RevoDrive 350 SED PCIe Multi-Level Cell Solid State Disk Drive- Brand New

Break the Bottleneck - Imagine the faster file transfers, snappier boot ups, and system responsiveness that make SSDs superior to hard drives, and then multiply that by 3X to achieve the incredible speeds of the PCIe-based RevoDrive 350. Free up the bandwidth and see the productivity potential your workstation or performance gaming system was missing for so long.

Sophisticated Feature-Set - There’s more below the surface of its incredible speeds. With OCZ’s Virtualized Controller Architecture (VCA) technology, the multi-controller RevoDrive 350 is seen by the host as a single drive to enable TRIM command support, SMART health monitoring, and easy firmware updates. Plus, it’s bootable as a direct-attach device to launch applications in a snap.

Don’t be Afraid to Write - As a media professional, you write a lot more data than the average user. The RevoDrive 350 has you covered, supporting up to 50GB of host writes per day for 3 years to provide leading endurance over less robust consumer SSDs.

Keep Thermals in Check - That sleek new casing isn’t just for looks. RevoDrive 350 keeps its cool even during the most intensive applications or heavy multitasking with an improved alloy housing to effectively dissipate heat.


  • Bye-Bye Bottleneck - Eliminates the SATA bottleneck enabling up to 3x the performance.
  • Optimized Drivers – Ground-up, redesigned drivers for ultimate performance efficiency.
  • Hassle-Free RAID – GET SSD RAID performance in an easy to deploy, single card solution.
  • Enhanced Thermals – Integrated heatsink provides a stable and cool thermal SSD environment.
  • Virtualized Controller Architecture™ (VCA) 2.0 – Internal storage controller enables TRIM, SMART, and secure erase.
  • Superior Bandwidth – More available bandwidth with PCI Express Gen . 2x8 interface.
  • Workstation-grade Design – Engineered for demanding professional applications.
  • Enterprise Derived – Design based on enterprise-grade OCZ Z-Drive 4500


This drive is compatible with any server that accepts Full-Height/Half-Length PCIe drives.

Drive ModelRVD350-FHPX28-960G
Sequential Reads1800 MB/s
Sequential Writes1700 MB/s
Random Read Speed (4K, QD32)135,000 IOPS
Random Write Speed (4K, QD32)140,000 IOPS
NAND Components19nm Multi-Level Vell (MLC) Flash
InterfacePCI Express Gen. 2 x8
NAND ControllerLSI® SandForce® SF-2282
Storage ControllerVCA 2.0 (Virtualized Controller Architecture™)
Length (mm/in)180.9/7.122
Width (mm/in)126.3/4.972
Height (mm/in)21.6/0.850
Weight (g/lb)310/0.683
Form FactorFull-Height/Half-Length (FH/HL)
Power ConsumptionIdle 10.0W, Active 14.5W
Operating Temperature0°C ~ 55°C
Storage Temperature-45°C ~ 85°C
Shock Resistance500G/0.5ms
Vibration (Operational)2.17Grms (7-800Hz)
Vibration (Non-Operational)3.13 Grms (8-800Hz)
Altitude (Operational)-1,000ft to 10,000ft
Altitude (Non-Operational)-1,000ft to 40,000ft
Airflow300LFM @ @ 55°C
CertificationUL C/US, FCC, CE, C-Tick, KCC, BSMI, VCCI, WEEE
Mean Time Between Failures (MTBF)2 million hours
Endurance RatingRated for 50GB/day of host writes for 3 years under typical client workloads
Data EncryptionAES-128 compliant
Product Health MonitoringSelf-Monitoring, Analysis and Reporting Technology (SMART) Support
PCI ExpressPCI Express x8 or x16 slot; Fully compliant with the PCI Express Electromechanical Specification Rev. 2.0, and PCI Express Base Specification Rev. 2.0
Operating SystemMicrosoft Windows 7, 8, 8.1 32/64-bit, Linux support planned
Power RequirementsPCIe 12V & 3.3V
Target ApplicationsClient workstations and performance gaming systems
Additional Features
Performance OptimizationTRIM (requires OS support), Garbage Collection

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 1.2 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
