OCZ Technology Part #/MPN: ZD4RPFC8MT310-1600
DiscTech Item #: OCZ-ZD4RPFC8MT310-1600-BN-OE
- Brand New
- Warranty:1 Year DiscTech
- Low Stock:Call for ETA
Enterprise Grade
Capacity: 1.6TB
Speed: Solid State
Interface Types: PCIe
Form Factor: FHHL (Full-Height/Half-Length)
Encryption/SED Supported
Sector Size: 512 / 512e
Sustained Throughput: Up to 2,900
Electrical Interface: PCIe - v2.0 - 8GBps
SSD Type: MLC
SSD Endurance DWPD: Consumer / Value

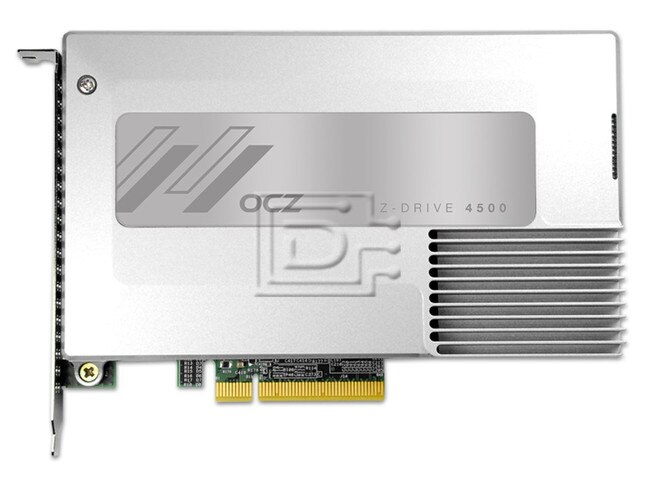

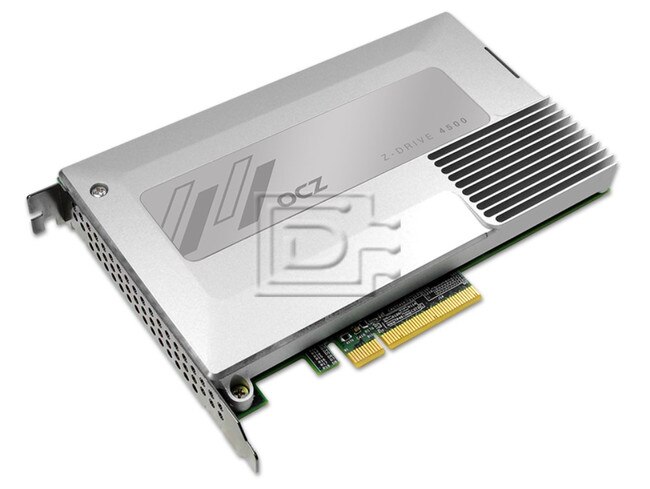

OCZ ZD4RPFC8MT310-1600 1.6TB Z-Drive 4500 SED PCIe eMLC SSD - Brand New
OCZ ZD4RPFC8MT310-1600 1600GB Z-Drive 4500 SED PCie Enterprise Multi-Level Cell Solid State Disk Drive - Brand New
It’s storage that evolves with your ever-changing data center. More than just a high-performing SSD, the new Z-Drive 4500 is a full-featured flash solution that integrates robust performance, reliability, data protection, and monitoring functions for critical enterprise applications and demanding big data environments. Z-Drive 4500 also includes the latest software features to deliver low-latency flash resources across your infrastructure, and OCZ’s proprietary Virtualized Controller Architecture (VCA) Technology coupled with proven controller technology enables industry-leading sustained performance. As OCZ’s most advanced PCIe edge card to date, Z-Drive 4500 offers a complete acceleration, caching, and flash management solution for your enterprise storage applications./p>
Z-Drive 4500 Features
- Leading MLC-based enterprise PCIe edge card performance driven by OCZ VCA Technology
- Integrates with powerful OCZ software solutions supporting Windows application acceleration (through OCZ WXL Software) and flash virtualization (through OCZ VXL Software)
- Features a more robust design over previous Z-Drive R4 models
- Bootable as a direct-attached device
- Delivers temperature sensing and thermal throttling to maintain consistent operating conditions even under adverse temperature variances
- Provides complete power loss data protection, end-to-end data protection, advanced ECC and other capabilities that extend drive life and protect data
- New SSD casing for a more stable and cooler thermal environment
- Installation drivers support package files (RPM, DEB) that automate the deployment process
- Data compression, Data de-duplication, and AES 128bit encryption
Compatibility:
This drive is compatible with any server that accepts Full-Height/Half-Length PCIe drives
Drive Model | ZD4RPFC8MT310-1600 |
---|---|
Model | Z-Drive 4500 |
Capacity | 1600GB |
Raw Capacity | 2048GB |
Write Endurance | 1300TBW min |
Physical | |
Interface | PCI Express Gen. 2 x8 |
NAND Components | Multi-Level Cell (MLC) |
Storage Controller | VCA 2.0 (Virtualized Controller ArchitectureTM) |
Form Factor | Full-Height/Half-Length (FH/HL) |
Height (mm/in) | 21.6/0.85 |
Width (mm/in) | 180.9/7.122 |
Length (mm/in) | 126.3/4.972 |
Weight (g/lb) | 350/0.8 |
Performance | |
Max Read | Up to 2,900 MB/s |
Max Write | Up to 2,200 MB/s |
Sustained Random 4K Reads | Up to 252,000 IOPS |
Sustained Random 4K Writes | Up to 76,000 IOPS |
Sustained Random 8K Reads | Up to 155,000 IOPS |
Sustained Random 4K Writes | Up to 31,000 IOPS |
Enviromental | |
Power Consumption | 20.3W Idle, 23.1W Active |
Operating Temperature | 0°C ~ 55°C |
Operating Temperature | -45°C ~ 85°C |
Airflow Requirement | 300LFM (Linear Feet per Minute) at 25°C 550LFM (Linear Feet per Minute) at 40°C |
Certifications | RoHS, FCC , CE, BSMI, C-TICK, VCCI, KCC, UL |
Relability/Protection | |
MTBF | 2 million hours |
Endurance Rating | Minimum of 1.3PB/td> |
Data Path Protection | End-to-end data path protection at every data juncture |
Data Reliability | Read Unrecoverable Bit Error Rate (UBER) 10 |
Data Encryption | Data compression, Data de-duplication, and AES 128bit encryption |
Power Fail Protection | Full in-flight data protection for unexpected system power loss |
Product Health Monitoring | Self-Monitoring, Analysis and Reporting Technology (SMART) support with enteprise attributes |
Data Recovery | In case of block failures, RAID mechanisms are used to recover data |
Relability/Additional Features | |
Performance Optimization | TRIM (requires OS support) |
Temperature Sensor | Temperature sensing and thermal throttling without sacrificing performance under normal operation |
Custom Configuration Options | Allow performance aggregation across multiple cards for increased performance |
Proprietary Virtualized Controller Architecture (VCA) 2.0 | Virtualizes SSD devices into a massively parallel array of memory Consolidated SMART support |
Upgradable Firmware | Field-upgradable firmware |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Brand New
1 Year DiscTech Warranty
