Promise Technology J5300SDQS6 72TB JBOD Expansion Chassis


DiscTech Item #: PRO-J5300SDQS6-BN-3Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Capacity: 72TB

Speed: 7,200RPM

Interface Types: SAS Serial Attached SCSI, SATA, SFF-8484

Form Factor: 3.5inx1.0in LFF Hard Drive

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps

Bays/Ports/Slots: 12

U Height: 2U

Voltage: 110-240V Multi

Promise Technology VTrak J5300SDQS6 J5300s Series 2U 72TB SAS JBOD DAS Expansion Chassis Storage Array w/ HDDs - Brand New

Promise Technology VTrak J5300SDQS6 J5300s Series 2U 72TB (12x6TB) SAS Dual-Controller JBOD DAS Expansion Chassis Storage Array with HDDs - Brand New

This storage array includes 12x 6TB 7200 RPM SAS hard drives.


  • VTrak J5000 Series 12 Gb/s SAS subsystems deliver a high performance SAS solution with advanced enterprise level reliability and functionality

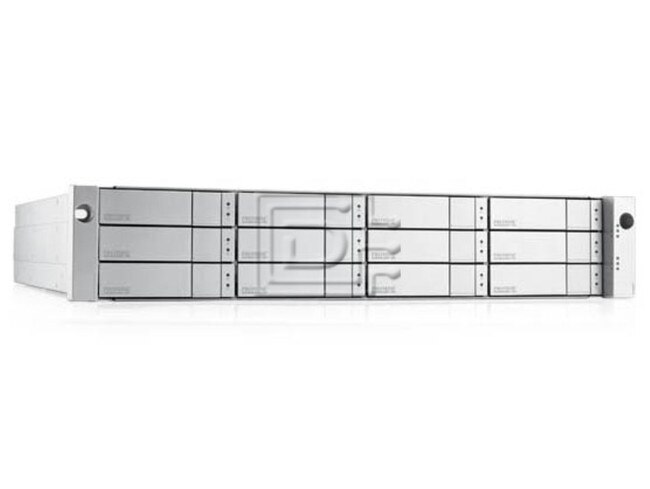

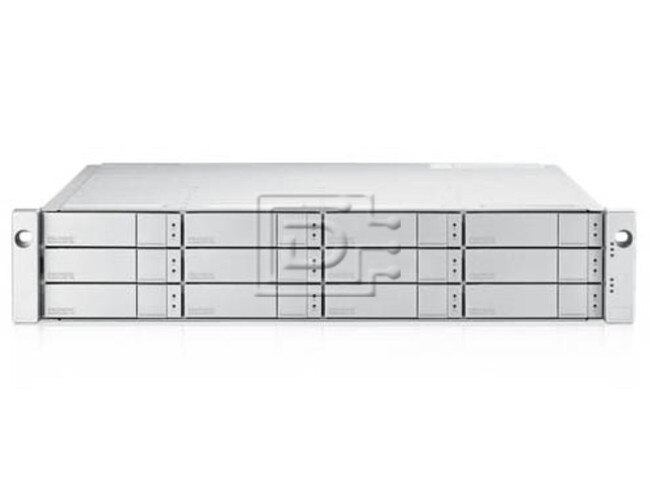

  • 12 hot-swappable 3.5” (LFF) drive bays in a robust 2U chassis
  • Supports SAS and SATA drives simultaneously and is compatible with leading SAS & SATA drives, HBAs, and RAID controllers
  • Dual active/active SAS JBOD I/O modules provide redundant data paths to ensure data availability and redundant hot-swappable Field Replaceable Units (FRUs)
  • Flexible wide-port configuration: Four x4 wide ports, two x8 wide ports or one x16 wide port per IOM and SES-2 compliant enclosure management
Form Factor2U/12 Bay
Drives Included12x 6TB 7200 RPM SAS hard drives
Drive Support
  • Up to 12 3.5” drives
  • 3/6/12 Gb/s SAS, 3/6 Gb/s SATA HDD and SSD
  • Supports any mix of SAS and SATA drives simultaneously in the same enclosure

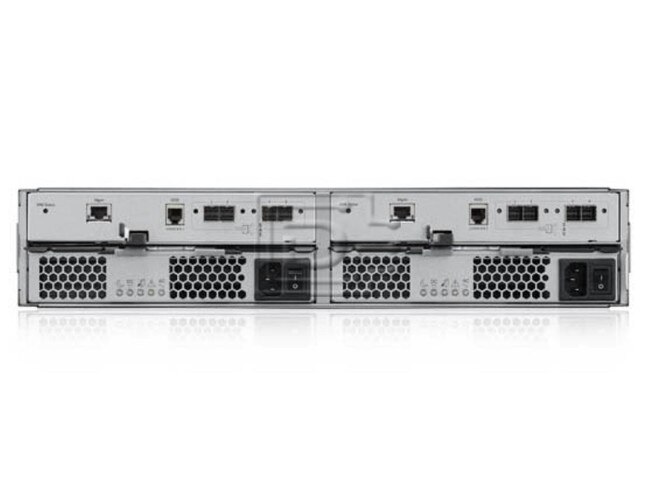

  • External I/O Ports (per controller)Each SBB 2.0 I/O module has four SAS ports using industrial standard Mini SAS HD connectors (SFF-8644), one port supports Wake-on SAS feature for upstream and other ports can be either upstream or downstream for cascading additional JBODs.
    Expander Management Features
  • Self-configuring expander supports full SAS domain topology management
  • T-10 based zoning support is applicable for non-VTrak E-Class configurations
  • End Device Frame Buffering (aggregate bandwidth over multiple slow devices e.g. 6 Gb/s and 3 Gb/s)
  • Smart cable support to detect cable type and tune PHY automatically for maximum reliability
  • SMP – SAS Management Protocol
  • In-band access to Expander and PHY information
  • Statistic counters and performance monitors
  • SES EM– SES Enclosure Management (ANSI T10 SES 2 Compliant)
  • SCSI SES command set over virtual SSP device
  • Wake-on-SAS support, Wake-on-LAN support
  • Management Interfaces
  • LED status indicator support for drives, FRU and enclosure environmentals
  • In--band SES enclosure management alerts user to out of spec operation: thermal condition, voltage condition or component failures, protecting data and hardware
  • Full subsystem management CLI through out--of--band RS232 serial port
  • Enclosure Protocol and Management
  • ANSI T10 SES 2, SMP (SES over in-band SAS)
  • Persistence Error Logging with NVRAM, Extensive Service Report File, VPD (Vital Product Data) on Chassis and FRUs
  • Voltage100-240 Vac Auto-Ranging
    Current (Maximum)9A @ 100 Vac; 4A @ 240 Vac
    Power Conversion Efficiency>80% @ 110V (>20% load), >80% @ 240V (>20% load) Temperature Range
    TemperatureOperational: 5° to 40°C, Non-Operational: -40° to 60°C
    HumidityOperational: 10% to 90% (Non-Condensing), Non-Operational: 5% to 95% (Non-Condensing)
    Acoustic Noise Levels55 dB (Typical), 65 dB (Maximum)
    ShockOperational: 5G, 11ms duration, Non-Operational: 10G, 11ms duration
    VibrationOperational: 0.3G, 5 to 500 Hz, Non-Operational: 1G, 5 to 500 Hz
    Safety and EMI Certification
  • EMC Class A: CE, FCC, VCCI, BSMI, RCM and KC
  • Safety: IEEE CB, UL/cUL and TUV

  • Click here to view the manufacturer's item description/brochure

    Weight: 62 lb

    Warranty: 3 Year Manufacturer

    Brand New

    Condition Levels Explained

    The product is brand new.

    3 Year Manufacturer Warranty

    Product Warranties Explained

    The product has a manufacturer warranty for the time period specified.
