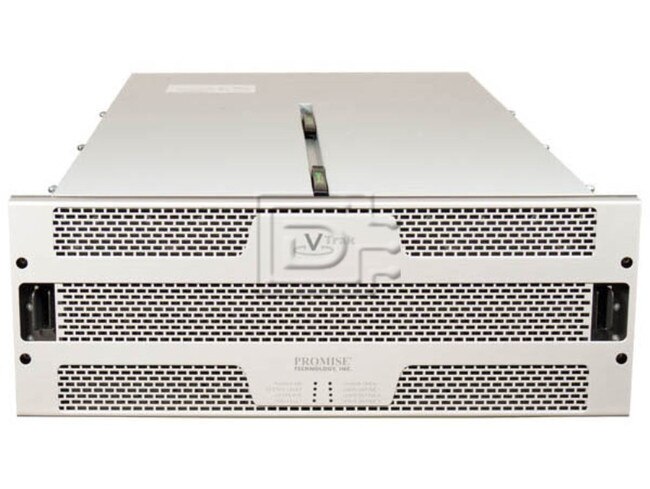

Promise Technology VTrak J930SDQS 180TB Expansion Chassis

PROMISE Part #/MPN: J930SDQS

DiscTech Item #: PRO-J930SDQS-BN-3Y

$69,999.00
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • Warranty:3 Year Manufacturer
    Product Warranties Explained

    The product has a manufacturer warranty for the time period specified.

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

Back
$69,999.00

Enterprise Grade

Capacity: 180TB

Speed: 7,200RPM

Interface Types: SAS Serial Attached SCSI, SATA, SFF-8088

Form Factor: 3.5inx1.0in LFF Hard Drive

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

Bays/Ports/Slots: 60

U Height: 4U

Wattage/VA: 1200W

Voltage: 110-240V Multi

Promise Technology VTrak J930s Series J930SDQS 4U 180TB SAS JBOD DAS Expansion Chassis Storage Array w/ HDDs - Brand New

Promise Technology VTrak J930s Series J930SDQS 4U 180TB (60 x 3TB) SAS Dual-Controller JBOD DAS Expansion Chassis Storage Array with Hard Disk Drives - Brand New

This expansion chassis includes 60x 3TB 7.2K NL-SAS hard drives.

Features

  • Ultra-dense 4U/60 form factor featuring hot-swappable drive bays in SBB 2.0 package
  • Supports 6G and 3G SAS and SATA drives simultaneously
  • Dual active/active SAS JBOD I/O modules
  • Provides up to 90% power efficiency
  • Multi-ported, multi-lane 6G mini SAS (4x) ports provide large bandwidth capabilities
  • Redundant, hot-swappable Field Replaceable Units (FRUs)
  • SES-2 compliant enclosure management
  • Compatible with leading SAS/SATA drives, HBAs and RAID controllers

VTrak x30 Configurations
Part NumberJ930SDQS
Form FactorUltra-dense 4U 60-bay
Drives Included60x 3TB 7200 RPM NL-SAS hard drives
Drive SupportUp to 60 3.5"/2.5" HDDs or SSDs(Please refer to compatibility list at www.promise.com)
NL-SAS 7200 RPM: 6Gbps, 3Gbps / SATA: 6Gbps, 3Gbps, and 1.5Gbps / SSD
External I/O Port (per controller)Each I/O module has four 6G SAS ports using industry standard Mini SAS 4x wideport-SAS connectors (SFF-8088)
I/O Module FeaturesANSI T10 SAS 2.0 Compliant
Self-configuring expander supports full SAS domain topology management
Auto-negotiate data path speeds
In-band management
Redundant cable support
Enclosure Management ProtocolsSES over in-band SAS
Voltage90/264V, 47-63Hz auto ranging
Current (Maximum)14.5A RMS max @ 110 VAC
Power Conversion Efficiency
  • 20% load @ 115V ~ 87%, 50% load @ 115V ~ 90%
  • 20% load @ 230V ~ 88%, 50% load @ 230V ~ 92%
    • Temperature
  • Operational: 10° to 35° C, temperature gradient 20°C per hour
  • Non-Operational: -40° to 70°C
    • Humidity
  • Operational: 10% to 80% (Non Condensing), humidity gradient 10°C per hour
  • Non-Operational: 5% to 95% (Non-Condensing)
    • Acoustic Noise Levels55 dB (Typical), 65 dB (Maximum)
    Shock
  • Operational: 5G, 11ms duration, 1/2 sine wave pulse
  • Non-Operational: 10G, 11ms duration, 1/2 sine pulse wave
    • Vibration
  • Operational: 0.15G
  • Non-Operational: 0.5G, 5 to 500 Hz
    • SafetyIEC/EN/UL/CSA 60950-1, 2nd edition
    Environment StandardsRoHS, WEEE Compliant
    Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Weight: 245 lb

    Warranty: 3 Year Manufacturer

    Brand New

    Condition Levels Explained

    The product is brand new.

    3 Year Manufacturer Warranty

    Product Warranties Explained

    The product has a manufacturer warranty for the time period specified.
