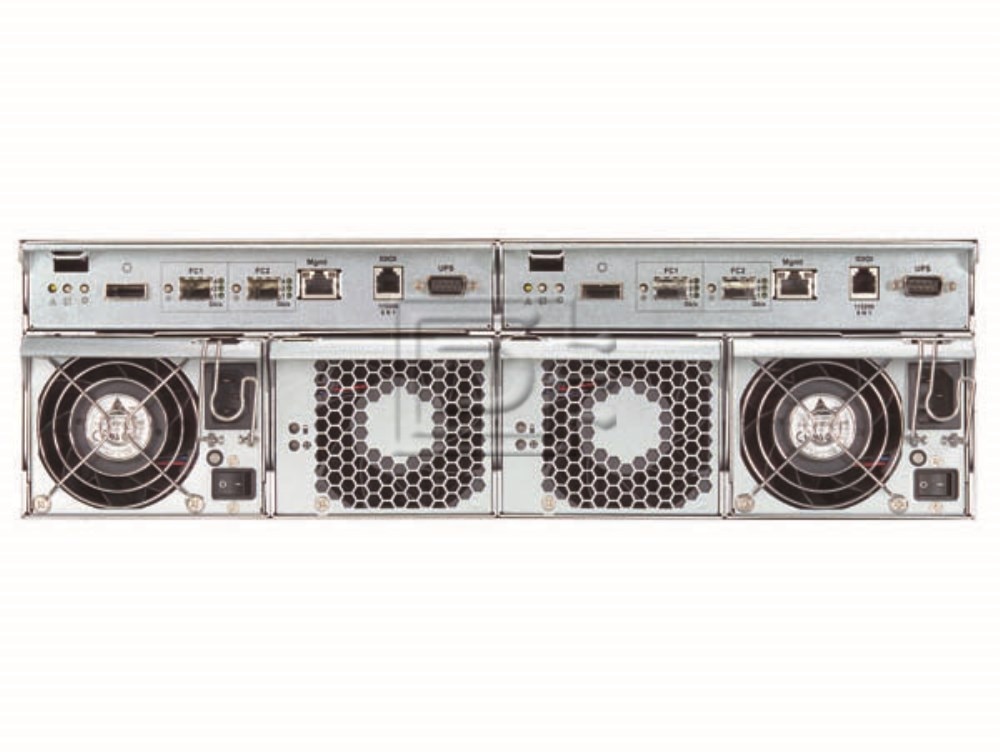

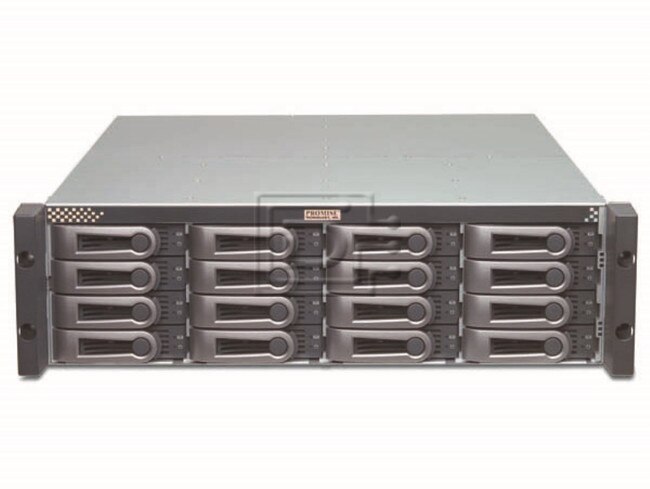

Promise Technology VTrak VTE610FS 3U Fibre Channel RAID Array

PROMISE Part #/MPN: VTE610FS

DiscTech Item #: PRO-VTE610FS-BN-3Y


$4,699.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$4,699.00

Interface Types: SAS Serial Attached SCSI, SATA, Fibre Channel - Internal - Arbitrated Loop ASA II, SFF-8088

Form Factor: 3.5inx1.0in LFF Hard Drive

Electrical Interface: FC-AL - 4Gbps

On-Board Cache: 512MB

Bays/Ports/Slots: 16

U Height: 3U

Wattage/VA: 500W

Voltage: 110-240V Multi

Promise Technology VTrak VTE610FS E610F Series 3U 16 Bay Fibre Channel Single-Controller SAN / NAS RAID Subsystem Storage Array - Brand New

Promise Technology VTrak VTE610FS E610F Series 3U 16 Bay Fibre Channel Single-Controller SAN / NAS RAID Subsystem Storage Array - Brand New

Benefits

Transform Digital Assets into Advantages
Rapid growth in data – fueled by data intensive applications, digital content creation, and online data archival – is creating significant challenges to enterprise IT organizations to store and manage their data. PROMISE storage solutions help enterprises protect and manage their data storage enabling them to transform their critical data assets into a competitive business advantage.

Preferred Solution for Primary and Value Tier Storage
For enterprise data centers and data-rich organizations dealing with the accelerating growth of unstructured content, PROMISE is the preferred storage solution for both primary and value tier storage. PROMISE solutions deliver flexible data management, protection, scalability and security for a new class of data intensive applications through a combination of advanced technologies including virtualization and energy efficient design.

Fundamentally Changes Storage Economics
This explosive growth is unstructured data has created significant storage challenges for enterprises storage environments. Ineffective data protection, wasted storage and rising operational costs are driving enterprises to adopt a cohesive storage strategy. PROMISE’s VTrak E-Class, a family of intelligent, high availability SAS/SATA based RAID storage systems address these issues and fundamentally changes storage economics from purchase and set up to operation and upgrades.

Simplifies Management
The VTrak line features PROMISE’s embedded browser-based management interface, WebPAM PROe eliminating the need to install additional software. All VTrak systems on the network can be configured and monitored using a single, easy-to-manage interface through an out-of-band Ethernet port. By using industry-standard management protocols, PROMISE simplifies integration with third-party management applications.

Flexibility to Fit Your Requirements
Choose the E-Class system that fits your requirements today with the confidence that you have the flexibility to change the interface (FC and SAS) simply by changing the controllers and also increase your available storage by adding JBOD systems, like our VTrak J-Class, to meet your future capacity needs.

Features

  • 4Gb Fibre Channel-to-SAS/SATA Dual Controller RAID Storage Systems
  • Dual/Redundant Active-Active RAID controllers
  • RAID Levels 0, 1, 1E, 5, 6 10, 50, 60
  • SAS-wide (x4) expansion port per controller supports up to four VTrak J-Class Expansion Chassis (80 bays total)
  • PerfectRAID support including Predictive Data Migration (PDM), Media Patrol
  • Embedded web browser base management support requiring no host software installation
  • Rich open protocol support for third party management software including SNMP and CIM
  • How swappable drive bays in a robust chassis

Specifications
Model NumberVTE610FS
E-Class 3U/16-Bay FC ModelsSingle Controller Configuration
Drive SupportUp to sixteen 3.5" hard drives. SAS 3Gb/s SATA II 3Gb/s -- direct connect in single controller configuration or uses the Promise SATA MUX Adapter in dual I/O module configuration Supports any mix of SAS and SATA II 3Gb/s drives simultaneously in the same system; Direct SATA LED support Direct SATA LED support Staggered physical drive spin-up
External I/O Ports (per controller)Dual 4Gb Fibre Channel host ports
One external 3Gb/s SAS x4 ports for JBOD expansion (up to 4 VTrak JBOD Systems)
Data CacheShared 512MB predictive data cache (max. to 2GB per controller - purchase through Promise), Automatic write cache de-staging, 72-hour battery backup
Command Queue Depth512 commands per controller (1024 in some dual controller configurations)
RAID LevelsRAID 0, 1, 1E, 5, 6, 10, 50, 60– Any combination of these RAID levels can exist at the same time; Configurable RAID stripe size: 64K, 128K, 256K, 512K and 1MB stripe size per disk Background task priority tuning, adjustment of minimum I/O reserved for server use during all background tasks
Raid Flexibility
Hot SparesMultiple global or dedicated hot-spare drives with revert options
Max LUNs per subsystem256 in any combination of RAID levels and array types
Max LUNs per array32 logical drives (LUNs); Supports LUN carving by allowing an array to be divided into multiple logical drives, RAID level, stripe size, sector size and cache policy can be configured per LUN. Supports out of order logical drive deletion and re-creation
Max LUNs per Target IDUp to 256, depending on host side driver and operating system
LUN Masking and MappingSupports multiple hosts and initiator lists
Disk data formatsSupports Disk Data Format (DDF) for industry wide standardization and drive roaming between Promise RAID products
Background ActivitiesMedia Patrol; Background synchronizing; Foreground initialization; Rebuild; Redundancy Check; SMART condition pooling; OCE (Online Capacity Expansion) RLM (RAID Level Migration); Priority Contorl, Rate Control and watermarking per BGA in Disk and NVRAM
PerfectRAID Data integrity functionsPhysical Drive Error Recovery: PDM (Predictive Data Migration): Replace un-healthy disk member in array, and keep array on normal status during the data transition between healthy HD and replaced HD, Bad Sector Mapping, Media Patrol, SMART, Hard/Soft Reset to recover HD from bad status, HD Powercontrol to recover HD from hung status. Array Error Recovery: Data recovery from bad sector or failed HD for redundant RAID, RAID 5/6 inconsistent data Prevent (Write Hole Table), Data content Error Prevent (Read/Write Check Table) NVRAM event logging
SCSI CommandSupports extended SCSI command set equivalent to SCSI/FC hard disk drives; Varible sector size (512Byte to 4kB) to break legacy limitaion; 16Byte CDB support for 64-bit LBA addressing
Supported Operating SystemsWindows 2003, Linux (Red Hat, SuSE)
Management Tools/InterfaceOperating System independent; Localized in multiple languages; SSL Security support; WebPAM PROe via out-of-band Ethernet; Command Line Interface or Command Line Utility via RJ-11 Serial Port or Ethernet (Telnet); Standard Management Protocols: SNMP, WBEM/CIM; Auto, Express and Advanced configuration support for novice and skilled users Embedded Web server and mgmt support – No host agent is needed Ethernet, RJ-11 Serial Port; SNMP, SSL, Telnet; Email, audible (buzzer), and visible (LED) indicators
Event Notification
Voltage100-240 Vac Auto-Ranging
Current (Maximum)8 A @ 100 Vac; 4 A @ 240 Vac (current rating with two power cords)
Power SupplyDual 500W, 100-240 Vac auto-ranging, 50-60 Hz, dual hot swap and redundant with PFC, N+1 design
Power Consumption108.38 Watts (under load w/o HDD)m 523.91 Watts (under load with SAS HDD)
Operating Temperature/Humidity5°~40°C (-40°~60°C non operational) / Maximum 95%
VibrationRandom, 0.21 grms, 5-500Hz, X, Y, Z axis
Dimensions13.1 x 44.65 x 56.1 cm (5.2 x 17.6 x 22.1 in)
Weight
  • Net weight: 30.5 kg (67.2 lbs) without drives, 38.5 kg (84.9 lbs) with 16 drives
  • Gross weight: 37.5 kg (82.7 lbs) without drives
  • SafetyCE, FCC Class A, VCCI, cUL, TUV, CB, BSMI, C-Tick, MIC

    Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Weight: 79 lb

    Warranty: 3 Year Manufacturer

    Brand New

    Condition Levels Explained

    The product is brand new.

    3 Year Manufacturer Warranty

    Product Warranties Explained

    The product has a manufacturer warranty for the time period specified.
