Enterprise Grade

Capacity: 800GB

Speed: Solid State Memory

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx9mm Fits Most laptops

Sector Size: 512 / 512e

Sustained Throughput: Up to 500

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps


SSD Endurance DWPD: Enterprise Mixed Use

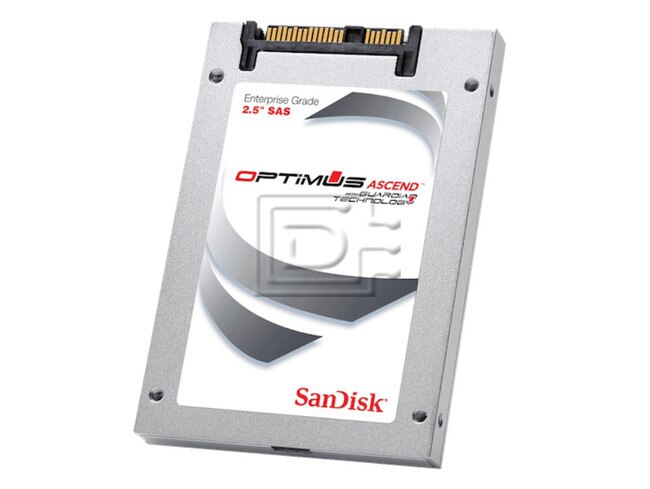

SanDisk SDLKOCDM-800G 800GB 2.5in 6Gbps eMLC Optimus Ascend SAS SSD - Brand New

SanDisk SDLKOCDM-800G 800GB 2.5" 6.0 Gbps Enterprise Multi-Level Cell Optimus Ascend Serial Attached SCSI Solid State Disk Drive - Brand New

Optimus Ascend SAS SSDs: Supporting Collaboration, Email and VDI

Sandisk’s Optimus Ascend™ SAS SSDs are ideal for supporting collaboration, email and messaging, financial transactions, on-line transaction processing (OLTP) databases and virtual desktop infrastructure (VDI). These workloads are characterized by a mix of reads and writes, as end-users access business services delivering these solutions, and then write new data.

Collaboration and Email - Collaborative workloads include email, messaging, and groupware. These workloads, such as Microsoft SharePoint, Microsoft Exchange and Linux-based groupware, allow end-users to share content and to coordinate with others.

Optimus Ascend SAS SSDs ensure ease of use for end-users by reducing latency that slows down application performance. They improve the user experience for customers accessing email and collaborative applications, even as the amount of end-user updates ebbs and peaks throughout the workday.

Virtual Desktop Infrastructure (VDI) - Optimus Ascend SAS SSDs support hundreds of individual end-user sessions running on a central-site server rather than on local PCs. This approach protects enterprise data and ensures business continuity for the organizations that use VDI to reduce operational costs related to IT staff time and maintenance.

Optimus Ascend SAS SSDs avoid boot storms that slow desktop response times when large numbers of end-users start their VDI-based personal desktop applications all at once. Optimus SAS SSDs allow IT organizations to increase the number of virtual machines supported per server, without sacrificing performance and application response times.

Optimus Ascend™/Mixed-Use Application Workloads

  • On-Line Transaction Processing (OLTP) Databases
  • Financial Transactions
  • E-Commerce
  • E-Mail/Messaging
  • Virtual Desktop
  • Collaboration


This drive is compatible with any server that accepts 2.5"x9mm SAS drives.

Drive ModelSDLKOCDM-800G
Form Factor2.5" 9.5mm
Interface6Gb/s SAS
Interface PortsDual/Wide
Sequential Read/Write (MB/s)Up to 500/500 MB/s /1 GB/s Wide-Port
Random Read/Write (IOPS)Up to 95K/40K IOPS
19nm eMLC User Capacities400GB
Sector Sizes512, 520, 528 byte
Data Reliability (BER)1 unrecoverable error in 100,000,000,000,000,000 bits read
MTBF2.5M hours2,500
Data Fail RecoveryF.R.A.M.E. (Flexible Redundant Array of Memory Elements)
Power Fail RecoveryEverGuard Technology: Backup Power Circuitry
Data Path ProtectionDataGuard Technology, T10 DIF
Random Workload10 DWPD
Active (Typ)7W
Shock1000 g half-sine, 0.5 msec, 3 shocks along each axis, X, Y, Z, in each direction
Vibration2.17g rms, 7-800 Hz
Operating Temperature0°C to 70°C
Storage Temperature-40°C to 90°C
Humidity5% to 95%, non-condensing, relative humidity
Altitude5486.4 m [18,000 ft]
Length (mm/in)100.20/3.945
Width (mm/in)69.85/2.75

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 1.5 lb

Warranty: 5 Year Manufacturer
