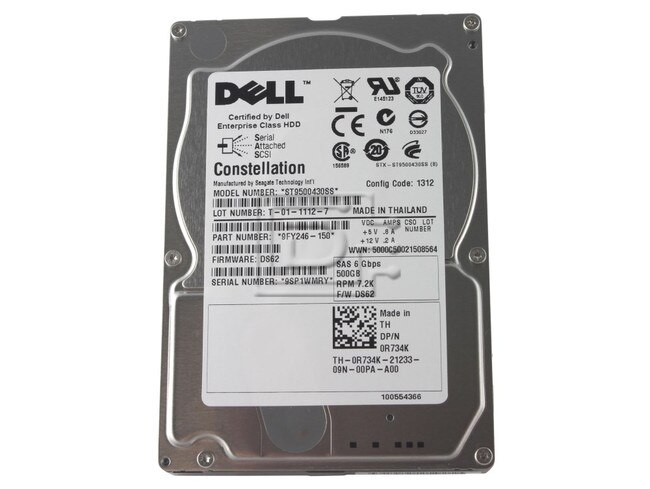

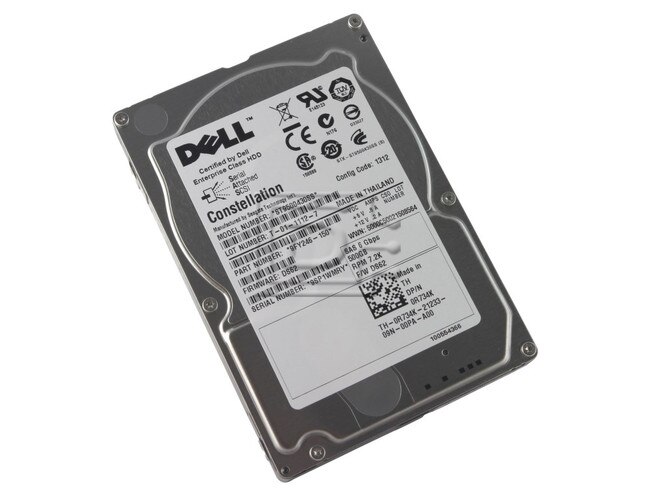

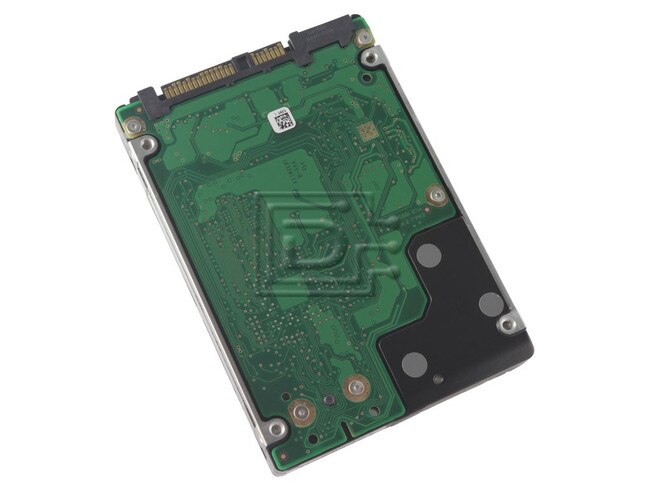

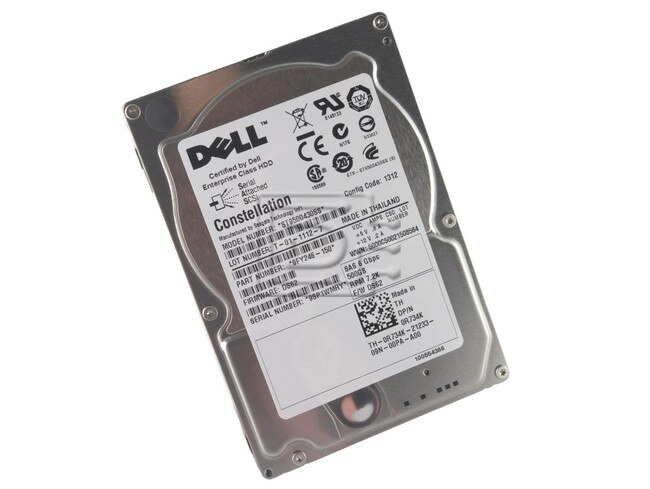

Seagate Constellation ST9500430SS Serial SCSI / SAS Hard Drives

Seagate Part #/MPN: ST9500430SS

DiscTech Item #: SGT-ST9500430SS-RF-OE-DEL


$89.00
  • Special Order - Ships in 5-10 business days
    Special Order - Ships in 5-10 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.

$89.00

Enterprise Grade

Capacity: 500GB

Speed: 7,200RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Sustained Throughput: 97

Average Seek Time: 8.5 / 9.5

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

On-Board Cache: 16MB

Seagate Constellation ST9500430SS 500GB 7.2K 6.0Gbps SFF Serial SCSI / SAS Hard Drive - Refurbished OEM

The Constellation 7200 hard drive enables manageable nearline storage solutions in 2.5" chassis — either direct attach or in a tiered storage environment — at the lowest power usage without compromising performance or reliability. Constellation 500GB SATA drives deliver cost-effective, eco-friendly nearline storage.

Key Features and Benefits
  • Lowest operating power & enhanced power options with PowerChoice™ for even greater power savings during slow or idle periods
  • First 2.5", 15mm business critical drive on the market designed for enterprise reliability, vibration performance and high data integrity. Fits in more server & storage slots!
  • Fastest Tier 2/Nearline HDD on the market (SAS @ 6Gb/s speed). At a system level (with more drives) the performance will be >2x as compared to 3.5" HDD.
  • The highest capacity 2.5" enterprise drive with 500GB with both SAS and SATA interfaces. (160GB SATA also available for boot/entry server applications)
  • 6Gbps SAS 2.0 allows for easier integration, enhanced features and outstanding performance
  • Government-grade self-encrypting drive (SED) on SAS models
  • Best performing nearline drive with Best-in-class Rotational Vibration

Dell p/n: 0K831N K831N TH-0K831N-21233-965-00EA-A00

Manufacturer's p/n: 9FY246 9FY246-050


Compatibility:

This drive is compatible with any of our SAS drive trays and any of our SAS controllers.

Drive specification

ST9500430SS

Formatted Gbytes (512 bytes/sector)

500

Bytes per sector

512

Spindle speed (RPM)

7,200

I/O data transfer rate (MBps)

600

Cache buffer

16

Interface Type

6.0Gbps SAS

Average latency

4.16 ms

Seek time (read / write) ms

8.5 / 9.5

Track-to-track seek (read / write) ms

0.8 / 1.0

Dimensions (HxLxW) mm

14.8 / 100.5 / 70

Weight

0.196 kg

Operating Shock (Read)

70G, 2ms

Non-operating Shock

400G, 2ms

Temperature - Operating

5C -55C

Temperature - Non-operating

-40C - 70C

Current Requirements 12VDC (Read/Write, Idle)

3.5w / 2.6w


Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 0K831N K831N 9FY246 9FY246-050 TH-0K831N-21233-965-00EA-A00 R734K 0R734K

Weight: 1 lb

Warranty: 1 Year DiscTech

Refurbished

Condition Levels Explained

These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
